Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed. Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption. Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth. Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Porte & Grænseflader | |
Forbindelsesteknologi | Ledningsført |
Værtsgrænseflade | PCI Express |
Grænseflade | Fiber |
Ethernet LAN-porte (RJ-45) | 4 |
Fiberkanal porte | 4 |
Fiber optisk strømstik | SFP+ |
PCI version | 3.0 |
PCI-kort formfaktor | Fuld højde |
Netværk | |
Maksimal dataoverførselshastighed | 10000 Mbit/s |
Netværksstandarder | IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 10,1000 Mbit/s |
Fiber ethernet kabelteknologi | 10GBASE-LR, 10GBASE-SR |
Understøttede netværksprotokoller | TCP, UDP, IP |
VLAN mærkning | Ja |
Maksimal driftstilstand | 10 m |
LAN Kontroller | Intel® X710 |
Design | |
Intern | Ja |
Produktfarve | Sort, Grøn |
Chipsæt | XL710-AM1 |
LED-indikatorer | Ja |
Certificering | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
Strømstyring | |
Strømforbrug (typisk) | 6,9 W |
Systemkrav | |
Kompatible operativsystemer | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
Understøttede Linux-operativsystemer | RedHat EL Linux 6.0 |
Andre understøttede operativsystemer | FreeBSD |
Understøttede operativsystemer til servere | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 55 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 35 - 90% |
Vægt & størrelser | |
Bredde | 111 mm |
Dybde | 167,1 mm |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Andre funktioner | |
Kabeltype | SFP+ Direct Attached Twin Axial Cabling up to 10m |
Markedssegment | Server |
Flowkontrol support | Ja |
Administrationsprotokoller | PXE, SNMP, RMON |
Antal VLAN'er | 4096 |
Intel® Virtualization Teknologi (Intel® VT) | VT-c |
Intel® Trusted Execution Teknologi | Ingen |
Indlejret tilgængelige muligheder | Ingen |
Intel® Virtual Machine Device Queues (VMDq) | Ja |
PCI-SIG* SR-IOV kompetent | Ja |
On-chip QoS og trafik administration | Ja |
Intel® Fleksibel Port-deling | Ja |
Lagring over ethernet | Ja |
Speed & slot width | 8.0 GT/s, x8 Lane |
Message signal interrupt | Ingen |
Muligheder med lav halogen tilgængelig | Ingen |
Intelligent Offloads | Ja |
iWARP/RDMA | Ingen |
Fiberkanal over ethernet | Ja |
Intel® Ethernet Power Administration | Ja |
Intel® Data Direct I/O Teknologi | Ja |
Intel® Virtualization Technology for Connectivity (VT-c) | Ja |
Grænsefladetype | PCIe v3.0 (8.0 GT/s) |
Konfliktfri | Ja |
Produkttype | Network Interface Card |
Antal QPI-lins | Quad |
Processorserie | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
Ethernet adapter ARK ID | 83965 |
Eksportkontrolklassisfikationsnummer (ECCN) | 5A991 |
Automatiseret sporingssystem til vareklassificering (CCATS) | NA |
Controller type | Intel® Ethernet Controller X710 |
Beslagshøjde | Full-Height (FH) |
Målgruppe | Artificial Intelligence, High Performance Computing |
Opbevaring over ethernet | iSCSI NFS |
Fødselsdato | Q4'14 |
Lanceringsdato | Q4'14 |
Netværkskort kabel medium | Copper |
Netværkskorttype | Server |
Produktbeskrivelse URL | https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html |

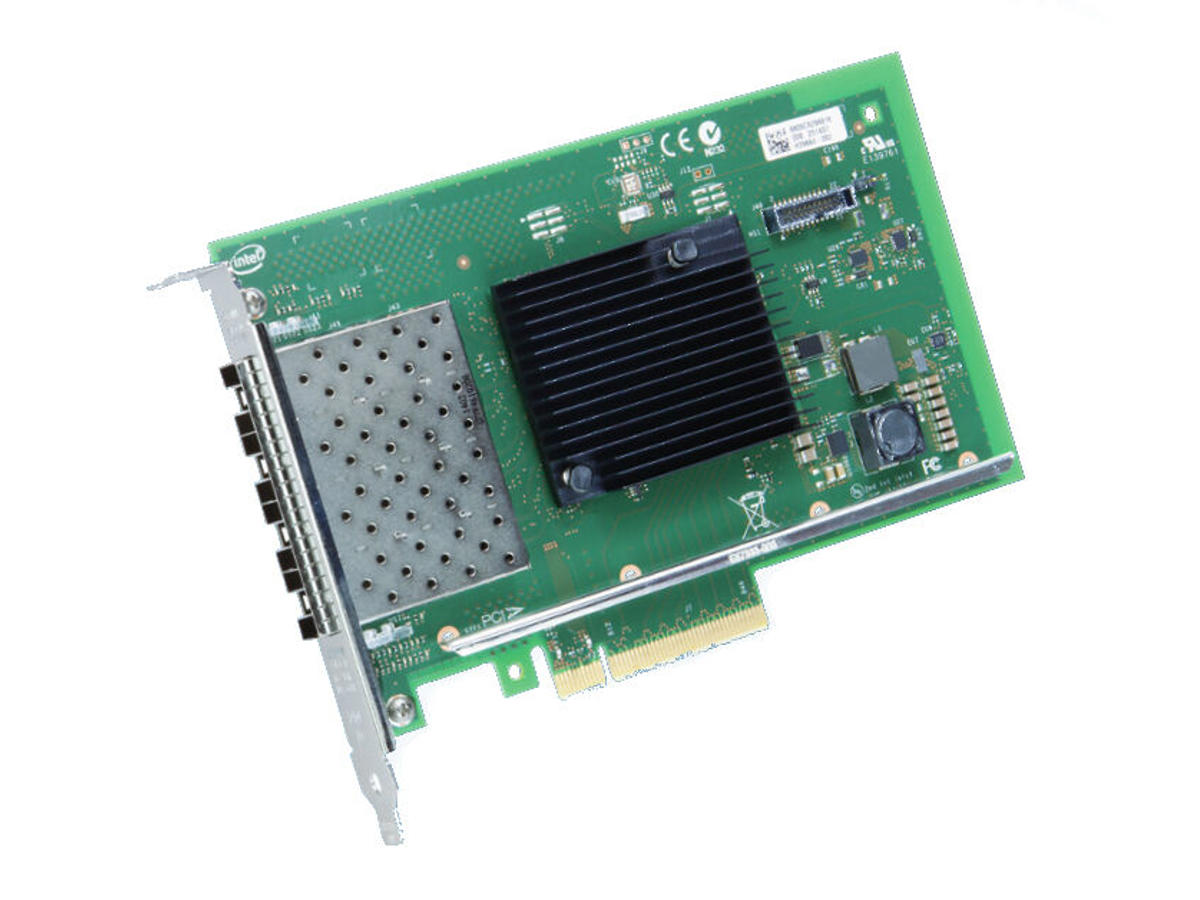

Produktnavn | Intel Ethernet Converged Network Adapter X710-DA4 |
Status | Launched |
Sidste ændring | 64826826 |
Produktfamilie | Intel 10 Gigabit server adapter |
Produktserie | 700 Series Network Adapters (up to 40GbE) |
Produktkode navn | Fortville |
