iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance -

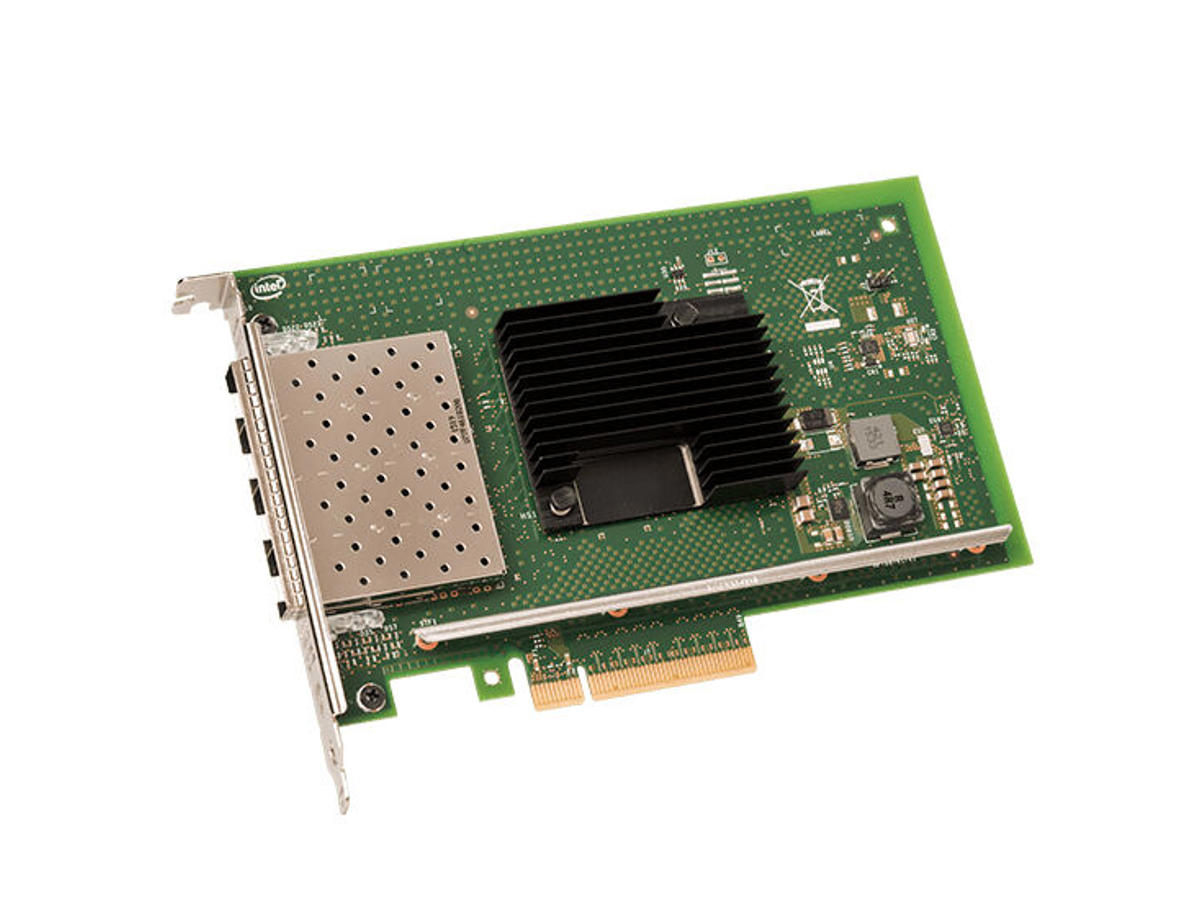

Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Fiber Ethernet LAN-porte (RJ-45) 4 Fiberkanal porte 4 Fiber optisk strømstik SFP+ PCI version 3.0 Netværk Maksimal dataoverførselshastighed 10000 Mbit/s Ethernet LAN-datahastigheder 10,1000 Mbit/s Fiber ethernet kabelteknologi 10GBASE-LR, 10GBASE-SR Servicekvalitet support (QoS) Ja Maksimal driftstilstand 10 m LAN Kontroller Intel® XL710-BM1 Design Intern Ja Produktfarve Sort, Grøn, Rustfrit stål LED-indikatorer Ja Certificering FCC A, UL, CE, VCCI, BSMI, CTICK, KCC Systemkrav Kompatible operativsystemer https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html Driftsbetingelser Driftstemperatur (T-T) 0 - 55 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 167 mm Dybde 111 mm Emballeringsdata Antal pr. pakke 1 stk Logistik data Harmoniseret systemkode (HS) 85176990 Andre funktioner Dataoverførselshastighed 8 GT/s Kabeltype SFP+ Direct Attached Twin Axial Cabling up to 10m Markedssegment Server Intel® Virtual Machine Device Queues (VMDq) Ja PCI-SIG* SR-IOV kompetent Ja On-chip QoS og trafik administration Ja Intel® Fleksibel Port-deling Ja Lagring over ethernet Ja Speed & slot width 8.0 GT/s, x8 Lane Muligheder med lav halogen tilgængelig Ingen Intelligent Offloads Ja iWARP/RDMA Ingen Fiberkanal over ethernet Ingen Intel® Ethernet Power Administration Ja Intel® Data Direct I/O Teknologi Ja Intel® Virtualization Technology for Connectivity (VT-c) Ja Grænsefladetype PCIe v3.0 (8.0 GT/s) Konfliktfri Ja Produkttype Network Interface Card Processorserie 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) Ethernet adapter ARK ID 83965 Eksportkontrolklassisfikationsnummer (ECCN) 5A991 Automatiseret sporingssystem til vareklassificering (CCATS) NA Controller type Intel® Ethernet Controller X710 Beslagshøjde Full-Height (FH) Målgruppe Artificial Intelligence, High Performance Computing Opbevaring over ethernet iSCSI NFS Lanceringsdato Q4'14 Netværkskort kabel medium Copper Netværkskorttype Server Produktbeskrivelse URL https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html Status Launched Sidste ændring 64826826 Produktfamilie Intel 10 Gigabit server adapter Produktserie 700 Series Network Adapters (up to 40GbE) Produktkode navn Fortville
