iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance -

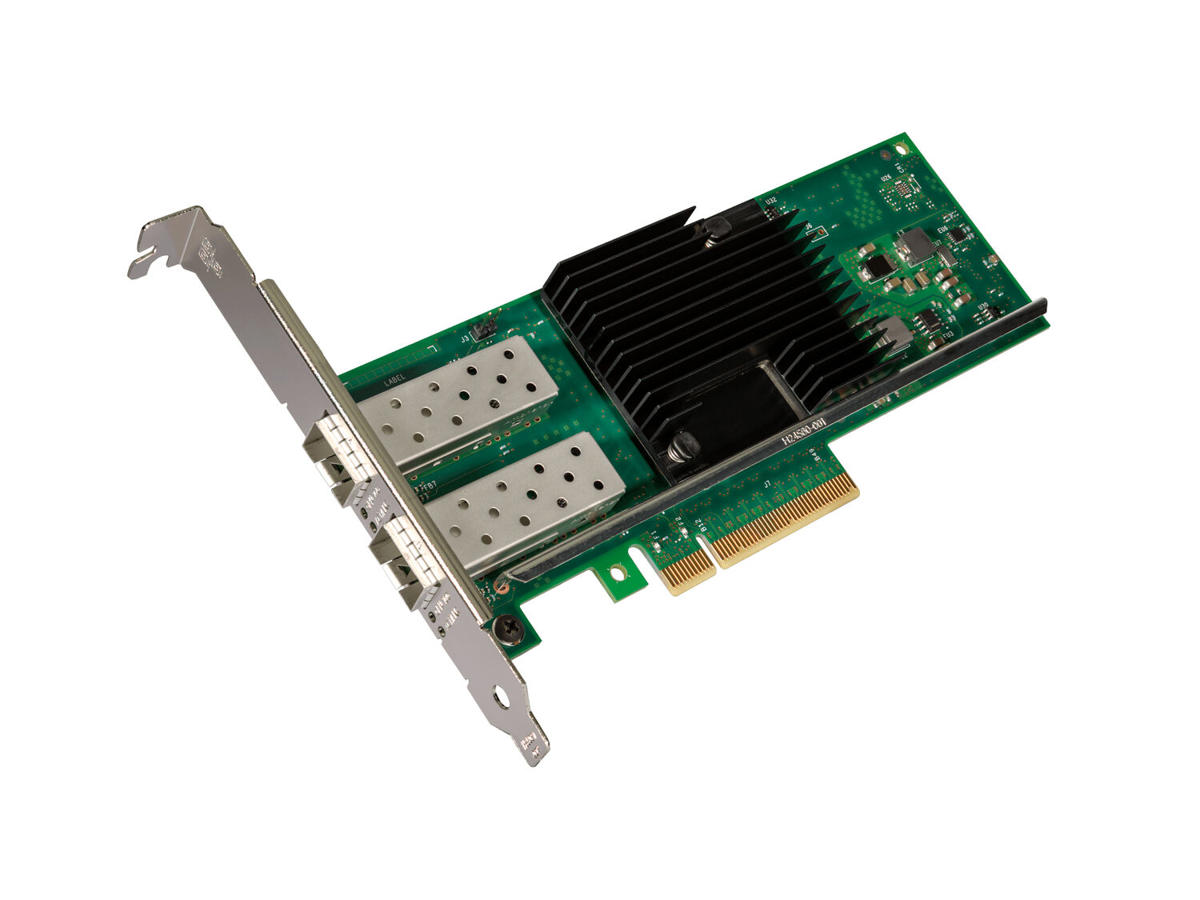

Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Fiber Ethernet LAN-porte (RJ-45) 2 Fiberkanal porte 2 Fiber optisk strømstik SFP+ PCI version 3.0 PCI-kort formfaktor Fuld højde (lav profil) Netværk Maksimal dataoverførselshastighed 10000 Mbit/s Netværksstandarder IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad Ethernet LAN Ja Ethernet LAN-datahastigheder 10,1000 Mbit/s Fiber ethernet kabelteknologi 10GBASE-LR, 10GBASE-SR Understøttede netværksprotokoller TCP, UDP, IP VLAN mærkning Ja Maksimal driftstilstand 10 m LAN Kontroller Intel® X710 Design Intern Ja Produktfarve Sort, Grøn Chipsæt X710-AM2 LED-indikatorer Ja Certificering FCC B, UL, CE, VCCI, BSMI, CTICK, KCC Strømstyring Strømforbrug (typisk) 4,5 W Systemkrav Kompatible operativsystemer https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html Understøttede Linux-operativsystemer RedHat EL Linux 6.0 Andre understøttede operativsystemer FreeBSD Understøttede operativsystemer til servere Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 Driftsbetingelser Driftstemperatur (T-T) 0 - 55 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 35 - 90% Vægt & størrelser Bredde 68,6 mm Dybde 167,1 mm Logistik data Harmoniseret systemkode (HS) 85176990 Andre funktioner Kabeltype SFP+ Direct Attached Twinaxial Cabling up to 10m Markedssegment Server Flowkontrol support Ja Administrationsprotokoller PXE, SNMP, RMON Antal VLAN'er 4096 Intel® Virtualization Teknologi (Intel® VT) VT-c Intel® Trusted Execution Teknologi Ingen Indlejret tilgængelige muligheder Ingen Intel® Virtualization Technology for Connectivity (VT-c) Ja Grænsefladetype PCIe v3.0 (8.0 GT/s) Produkttype Network Interface Card Processorserie 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) Eksportkontrolklassisfikationsnummer (ECCN) 5A991 Automatiseret sporingssystem til vareklassificering (CCATS) NA Controller type Intel® Ethernet Controller X710 Beslagshøjde Low-Profile (LP) / Full-Height (FH) Målgruppe Artificial Intelligence, High Performance Computing Lanceringsdato Q4'14 Status Launched Sidste ændring 64826824 Produktfamilie Intel 10 Gigabit server adapter Produktserie 700 Series Network Adapters (up to 40GbE) Produktkode navn Fortville
