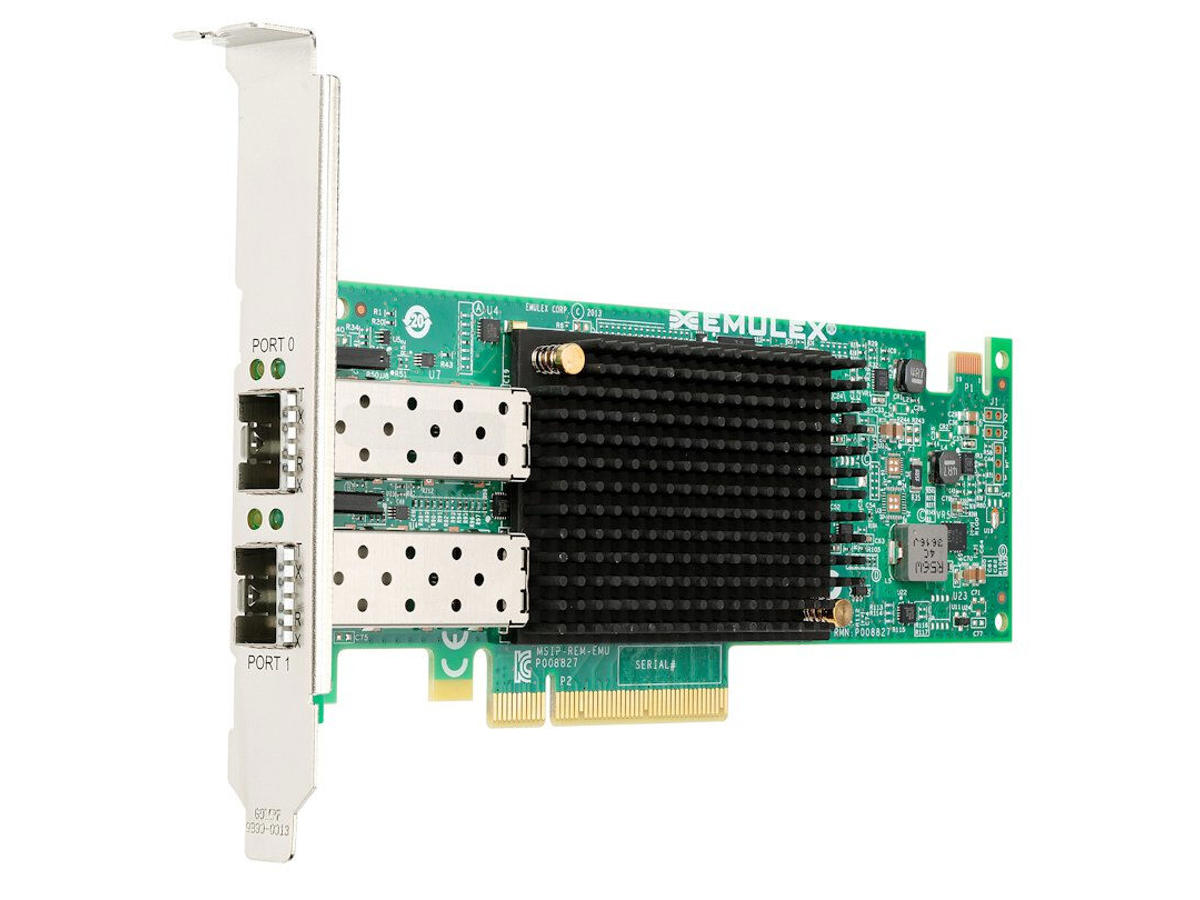

The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity.
This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions.
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity. These new features help reduce complexity, reduce cost, and improve performance with Lenovo servers.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | PCI Express |
| Grænseflade | Fiber |
| Fiberkanal porte | 2 |
| Fiber optisk strømstik | SFP+ |
| Netværk | |
| Maksimal dataoverførselshastighed | 10000 Mbit/s |
| Netværksstandarder | IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9216 |
| Servicekvalitet support (QoS) | Ja |
| VLAN mærkning | Ja |
| iSCSI-understøttelse | Ja |
| Design | |
| Intern | Ja |
| Kompatible produkter | x3550 M5 x3650 M5 x3850 X6/x3950 X6 nx360 M5 x3750 M4 x3850 X6/x3950 X6 |
| Strømstyring | |
| Strømforbrug (typisk) | 14,4 W |
| Systemkrav | |
| Understøttede operativsystemer til servere | Windows Server 2012, Windows Server 2012 R2 |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 55 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 69 mm |
| Dybde | 17 mm |
| Højde | 167 mm |
| Emballeringsdata | |
| Pakkevægt | 450 g |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
| Andre funktioner | |
| Modtager skalering (RSS) | Ja |
