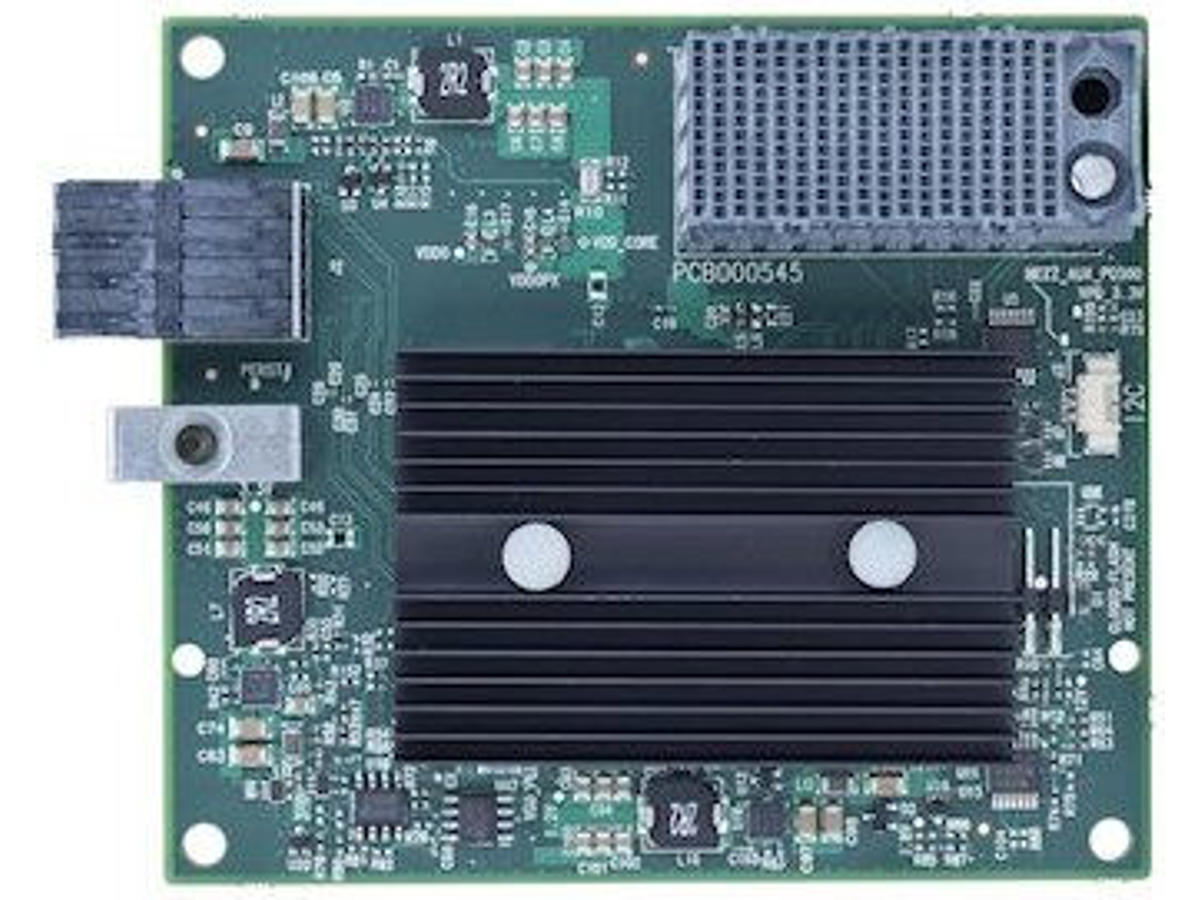

The Flex System EN6132 2-port 40Gb Ethernet Adapter and Mellanox ConnectX-3 Mezz 40Gb 2-Port Ethernet Adapter in conjunction with the EN6131 40Gb Ethernet Switch offer the performance that you need to support clustered databases, parallel processing, transactional services, and high-performance embedded I/O applications, which reduces task completion time and lowers the cost per operation.
The EN6132 and ConnectX-3 adapters can help you achieve efficient computing by offloading protocol processing from the CPU and data movement impact, such as RDMA over Converged Ethernet and Send/Receive semantics, which allows more processor power for the application.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | PCI Express |
| Grænseflade | Ethernet |
| Ethernet LAN-porte (RJ-45) | 2 |
| PCI version | 3.0 |
| Netværk | |
| Maksimal dataoverførselshastighed | 40000 Mbit/s |
| Netværksstandarder | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x |
| Ethernet-grænsefladetype | 40 Gigabit Ethernet |
| Ethernet LAN-datahastigheder | 40000 Mbit/s |
| Wake-on-LAN klar | Ja |
| Fuld duplex | Ja |
| Jumbo Frames support | Ja |
| VLAN mærkning | Ja |
| iSCSI-understøttelse | Ja |
| Design | |
| Intern | Ja |
| Produktfarve | Sort, Grøn |
| Certificering | IEC/EN 60950-1:2006 ETSI EN 300 019-2-2 IEC 60068-2- 64, 29, 32 |
| Systemkrav | |
| Kompatible operativsystemer | Microsoft Windows Server 2008 HPC Edition Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008, Enterprise x64 Edition Microsoft Windows Server 2008, Standard x64 Edition Microsoft Windows Server 2008, Web x64 Edition Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 10 for AMD64/EM64T SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 12 VMware ESX 4.1 VMware ESXi 4.1 VMware vSphere 5.0 (ESXi) VMware vSphere 5.1 (ESXi) VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi) VMware vSphere 6.5 (ESXi) |
| Vægt & størrelser | |
| Bredde | 100 mm |
| Dybde | 80 mm |
| Vægt | 13 g |
| Andre funktioner | |
| Flowkontrol support | Ja |
| Modtager skalering (RSS) | Ja |
