10GBASE-T Converged Network Adapter Simplifies Migration to 10GbE
Provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning
10 Gigabit for the Broad Market

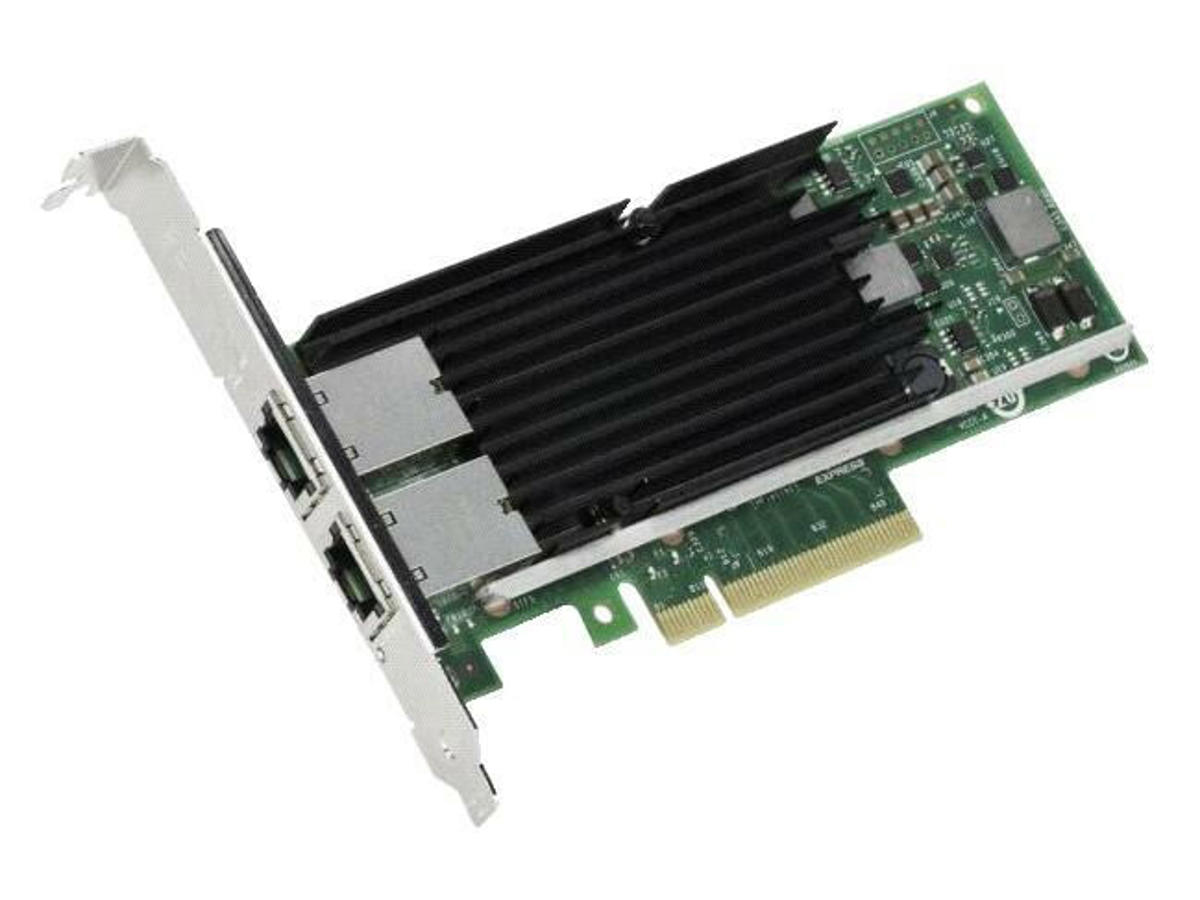

The Intel® Ethernet Converged Network Adapter X540-T2 is the latest innovation in Intel’s leadership to drive 10 Gigabit Ethernet into the broader server market. This adapter hosts Intel’s latest Ethernet silicon, the Intel® Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet (10 GbE) on the latest server platforms.
10GBASE-T Simplifies the Transition to 10GbE
The X540 family of products works with existing networks today. It works with legacy Gigabit Ethernet (GbE) switches and CAT-6a cabling. Install the X540 adapter into a server and the auto-negotiation between 1 GbE and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10 GbE.
10GBASE-T uses the copper twisted pair cables that are very familiar to IT professionals today. It is everything you know and love about 1000BASE-T. The knowledge, training and investment in BASE-T are preserved. 10GBASE-T is the easiest and most versatile 10 GbE and you can deploy it anywhere in your data center. Its flexible reach from 1 meter to 100 meters supports the latest network architectures including Top of Rack (ToR), Middle of Row (MoR), and End of Row (EoR).
10G Performance at Low Cost and Low Power
The new Intel® Ethernet Converged Network Adapter X540-T2 is the lowest cost way to deploy 10 GbE in your data center today. The X540-T2 uses low cost, CAT-6 and CAT-6a cabling. Chances are this cabling already exists in the data center. -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Ethernet Ethernet LAN-porte (RJ-45) 2 PCI version 2.1 PCI-kort formfaktor Halvhøjde (lavprofil) Netværk Maksimal dataoverførselshastighed 10000 Mbit/s Netværksstandarder IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad Ethernet LAN Ja Ethernet LAN-datahastigheder 100,1000,10000 Mbit/s Servicekvalitet support (QoS) Ja Maksimal driftstilstand 100 m LAN Kontroller Intel® X540 Design Intern Ja Chipsæt X540 Systemkrav Kompatible operativsystemer https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html Understøttede Windows-operativsystemer Ja Understøttede Linux-operativsystemer Ja Logistik data Harmoniseret systemkode (HS) 8517620090 Andre funktioner Kabeltype RJ45 Category 6 up to 55 m; Category 6A up to 100 m Markedssegment Server Intel® Virtualization Teknologi (Intel® VT) VT-c Termisk effekt 13,4 W Intel® Virtual Machine Device Queues (VMDq) Ja PCI-SIG* SR-IOV kompetent Ja On-chip QoS og trafik administration Ja Intel® Fleksibel Port-deling Ja Speed & slot width 5.0 GT/s, x8 Lane Muligheder med lav halogen tilgængelig Ingen Intelligent Offloads Ja iWARP/RDMA Ingen Intel® Ethernet Power Administration Ingen Intel® Data Direct I/O Teknologi Ja Intel® Virtualization Technology for Connectivity (VT-c) Ja Grænsefladetype PCIe v2.1 (5.0 GT/s) Produkttype Network Interface Card Thermal Design Power (TDP) 13,4 W Antal QPI-lins Dual Ethernet adapter ARK ID 58954 Eksportkontrolklassisfikationsnummer (ECCN) 5A992C Automatiseret sporingssystem til vareklassificering (CCATS) G135872 Controller type Intel® Ethernet Controller X540 Beslagshøjde Low-Profile (LP) / Full-Height (FH) Opbevaring over ethernet iSCSI, FCoE, NFS Fødselsdato Q1'12 Lanceringsdato Q1'12 Netværkskort kabel medium Copper Netværkskorttype Server Produktbeskrivelse URL http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html Produktnavn Intel Ethernet Converged Network Adapter X540-T2 Status Launched Sidste ændring 64826822 Produktfamilie Intel 10 Gigabit server adapter Produktserie 500 Series Network Adapters (up to 10GbE)
