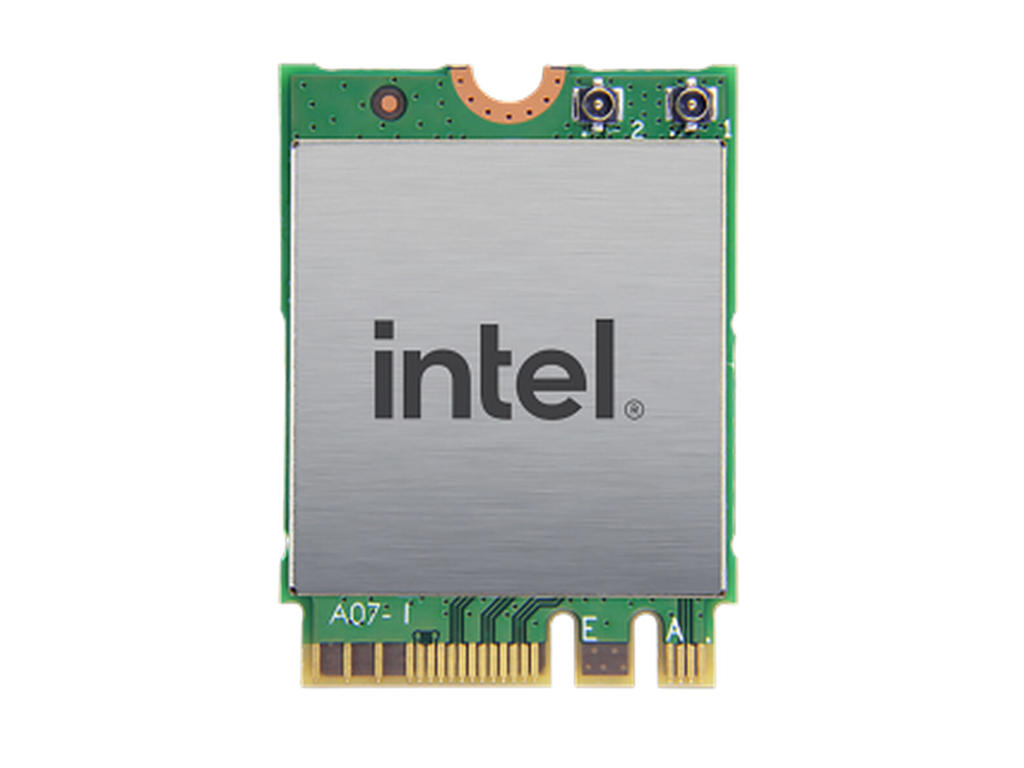

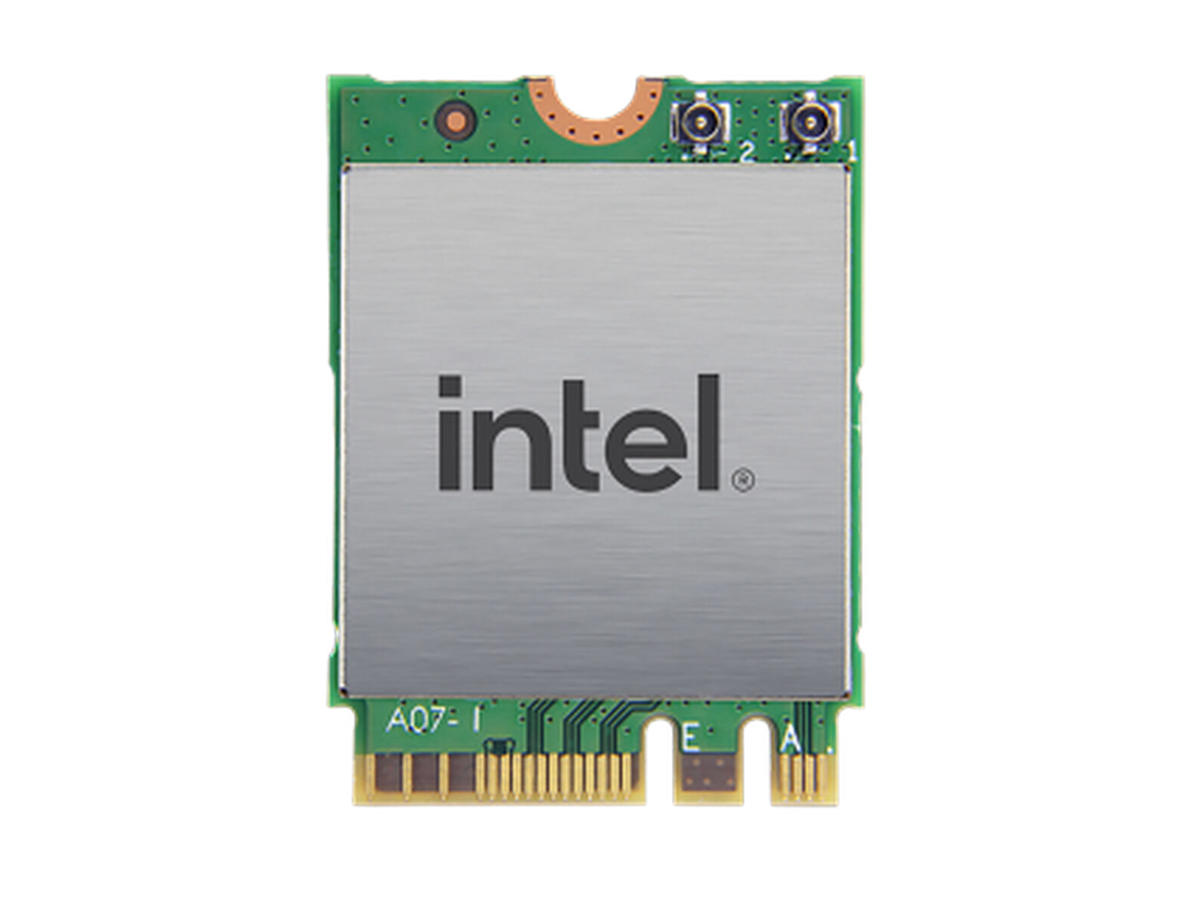

Intel® Wi-Fi 6 solutions enable the fastest wireless speeds for PCs, more responsive performance, with enhanced security and reliability, especially in dense environments. Benefits include fast uploads and downloads, lower latency and longer battery life compared to solutions supporting 802.11ac. Experience a dramatically improved connected experience at home, work, or on the go. The new Intel® Wi-Fi 6 AX201 (Gig+) adapter supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering increased network capacity as well as Bluetooth® 5.2 support.
Porte & Grænseflader | |
Forbindelsesteknologi | Trådløs |
Værtsgrænseflade | PCI Express |
Grænseflade | WLAN |
Netværk | |
Maksimal dataoverførselshastighed | 2400 Mbit/s |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w |
Wi-Fi | Ja |
Wi-Fi-bånd | Dual-band (2,4 GHz / 5 GHz) |
Bedste Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi-standarder | Wi-Fi 6 (802.11ax) |
Sikkerhedsalgoritmer | 64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS |
Bluetooth | Ja |
Bluetooth-version | 5 |
MU-MIMO | Ja |
Design | |
Intern | Ja |
Komponent til | PC/notebook |
Antenne type | 2x2 |
Pakke størrelse | 22 x 30 x 2.4 mm |
Systemkrav | |
Kompatible operativsystemer | Windows 10, 64-bit*|Linux* |
Understøttede Windows-operativsystemer | Windows 10 x64 |
Understøttede Linux-operativsystemer | Ja |
Andre understøttede operativsystemer | ChromeOS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 80 °C |
Vægt & størrelser | |
Bredde | 22 mm |
Dybde | 30 mm |
Højde | 2,4 mm |
Vægt | 2,83 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Andre funktioner | |
Maksimal driftstemperatur | 80 °C |
Understøtted ved vPro | Ja |
Grænsefladetype | Wi-Fi(PCIe), BT(USB) |
Produkttype | Wireless |
Processorserie | Intel Wi-Fi 6 Products |
Eksportkontrolklassisfikationsnummer (ECCN) | 5A992CN3 |
Automatiseret sporingssystem til vareklassificering (CCATS) | G165483 |
Overholdelse | FIPS, FISMA |
Lanceringsdato | Q2'19 |
Produktbeskrivelse URL | https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf |
Status | Launched |
Produktserie | Intel® Wireless Products |
Produktkode navn | Cyclone Peak |
