Mere information
-
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance -

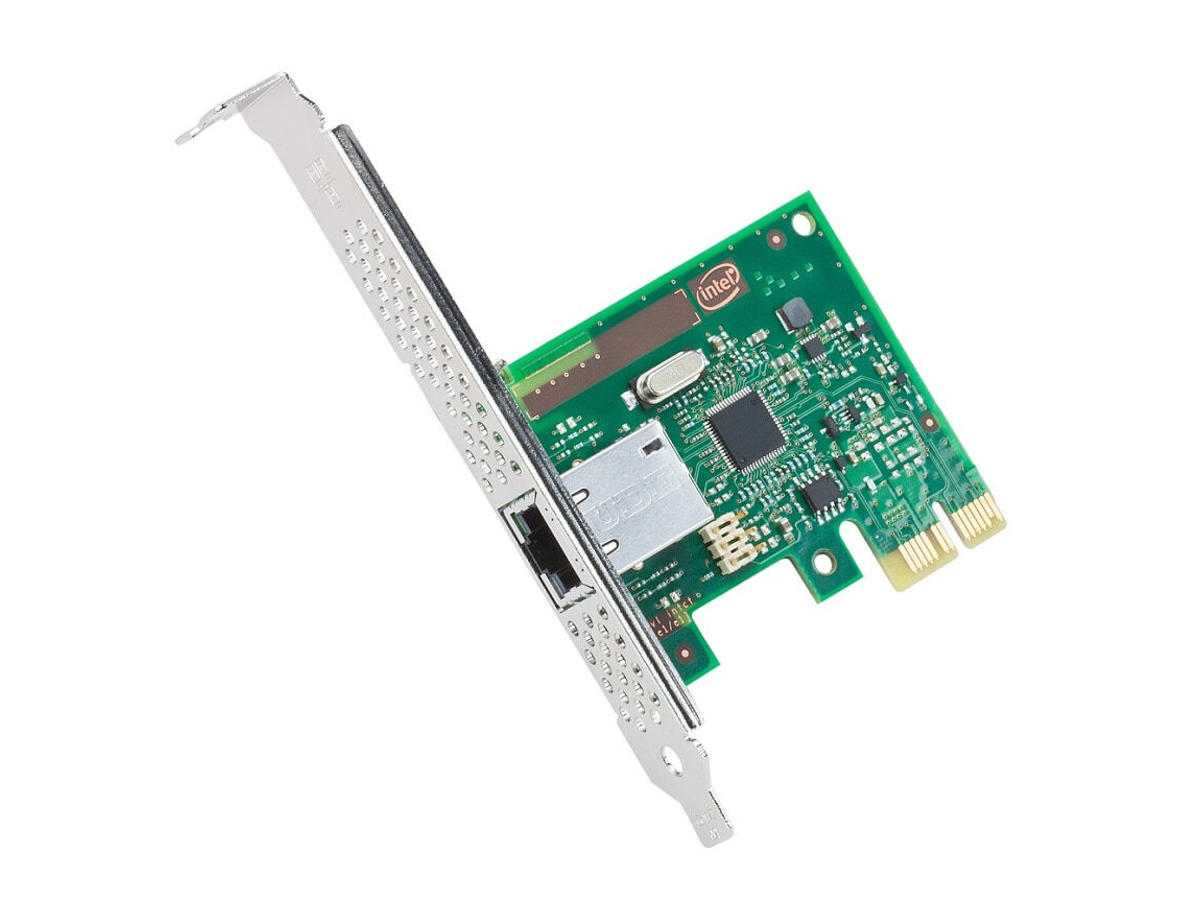

Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Ethernet Ethernet LAN-porte (RJ-45) 1 PCI version 2.1 PCI-kort formfaktor Fuld højde (lav profil) Netværk Maksimal dataoverførselshastighed 1000 Mbit/s Netværksstandarder IEEE 802.1Q, IEEE 802.1as Ethernet-grænsefladetype Hurtigt ethernet, Gigabit Ethernet Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Kabelteknologi 10/100/1000BaseT(X) iSCSI-understøttelse Ja Maksimal driftstilstand 100 m LAN Kontroller Intel I210 Design Intern Ja Produktfarve Grøn, Sølv Systemkrav Understøttede Linux-operativsystemer Ja Understøttede operativsystemer til servere Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64 Driftsbetingelser Driftstemperatur (T-T) 0 - 55 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved opbevaring (H-H) 0 - 90% Logistik data Harmoniseret systemkode (HS) 8517620090 Andre funktioner Dataoverførselshastighed 2,5 GT/s Kabeltype RJ45 Category 5, up to 100 m Markedssegment Server Intel® Virtual Machine Device Queues (VMDq) Ingen PCI-SIG* SR-IOV kompetent Ingen On-chip QoS og trafik administration Ingen Intel® Fleksibel Port-deling Ingen Speed & slot width 2.5 GT/s, x1 Lane Muligheder med lav halogen tilgængelig Ingen Intelligent Offloads Ja iWARP/RDMA Ingen Fiberkanal over ethernet Ingen Intel® Ethernet Power Administration Ja Intel® Data Direct I/O Teknologi Ingen Grænsefladetype PCIe v2.1 (2.5 GT/s) Konfliktfri Ja Produkttype Network Interface Card Thermal Design Power (TDP) 1 W Processorserie Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) Ethernet adapter ARK ID 68668 Eksportkontrolklassisfikationsnummer (ECCN) 5A991 Automatiseret sporingssystem til vareklassificering (CCATS) NA Controller type Intel I210 Beslagshøjde Low-Profile (LP) / Full-Height (FH) Lanceringsdato Q1'13 Netværkskort kabel medium Copper Netværkskorttype Server Produktbeskrivelse URL http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html Status Launched Sidste ændring 63903513 Produktfamilie Intel Gigabit server adapter Produktserie Intel I210
