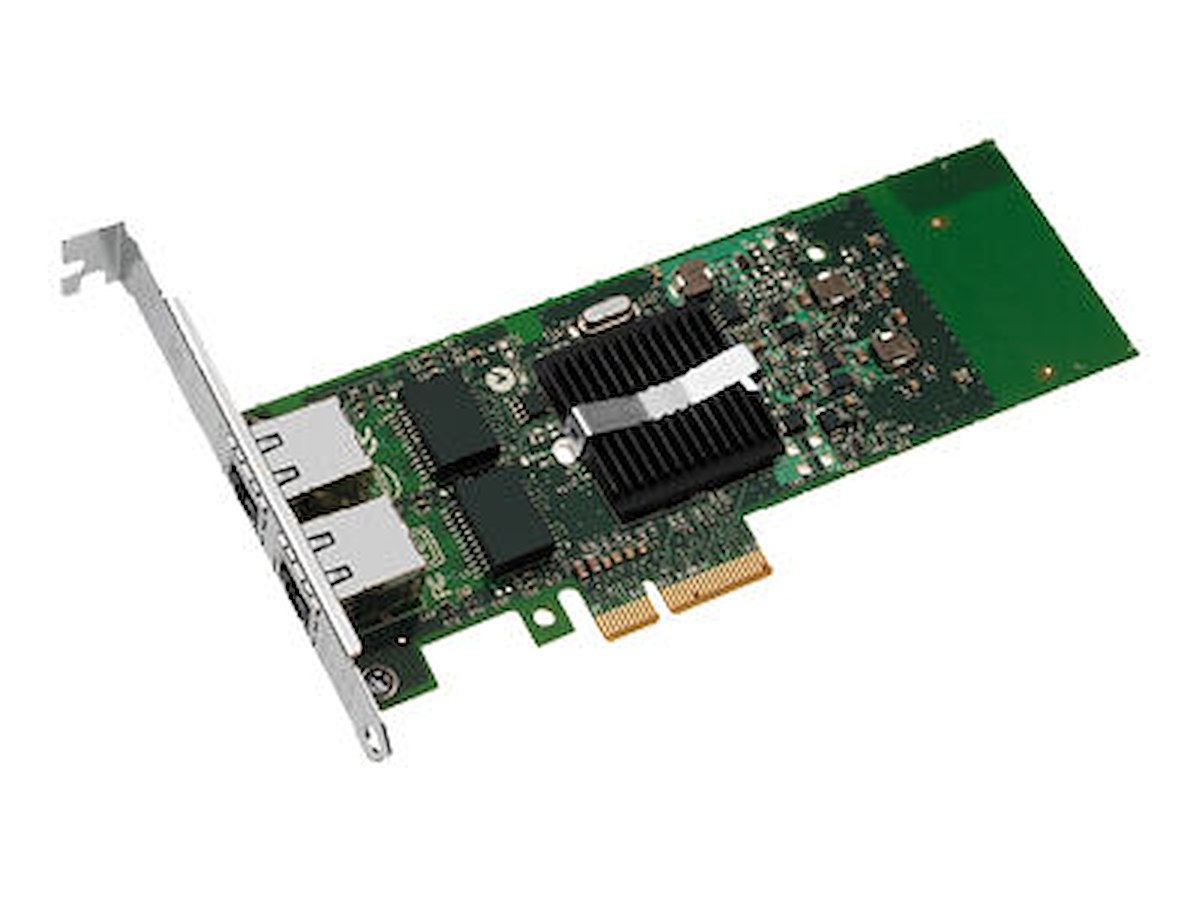

The Intel® Gigabit ET and EF Multi-Port Server Adapters are Intel's third generation of PCIe GbE network adapters. Built with the Intel® 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization.
Features and benefits:
- Industry-leading, energy-efficient design for next-generation Gigabit performance and multi-core processors.
- Enables higher bandwidth and throughput from standard and low-profile PCI Express slots and servers.
- Provides centralized storage area network (SAN) management at a lower cost than competing iSCSI solutions.
- Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux.
- Allows each port to operate without interfering with the other
- Enables dual- or quad-port operation in almost any PCI Express server slot, except x1 slots.
- Enables widespread deployment.
- Compliant with the European Union directive 2002/95/EC to reduce the use of hazardous materials.
- Provides point-and-click management of individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration. -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Ethernet LAN-porte (RJ-45) 2 PCI version 2.0 Netværk Maksimal dataoverførselshastighed 1000 Mbit/s Ethernet LAN Ja Understøttede netværksprotokoller IEEE 1588 PTC Maksimal driftstilstand 100 m LAN Kontroller Intel® 82576 Design Intern Ja Certificering FCC B, UL, CE, VCCI, BSMI, CTICK, MIC Strømstyring Strømforbrug (typisk) 2,9 W Systemkrav Kompatible operativsystemer Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*, , VMware ESX/ESXi* Driftsbetingelser Driftstemperatur (T-T) 0 - 55 °C Opbevaringstemperatur (T-T) -40 - 70 °C Vægt & størrelser Bredde 68,1 mm Dybde 167,4 mm Logistik data Harmoniseret systemkode (HS) 8517620090 Andre funktioner Kabeltype Category 5 up to 100m Markedssegment Server Understøttede dataoverførselshastigheder 10/100/1000 Porte, antal 2 Intel® Virtual Machine Device Queues (VMDq) Ja PCI-SIG* SR-IOV kompetent Ja On-chip QoS og trafik administration Ja Intel® Fleksibel Port-deling Ja Speed & slot width 2.5 GT/s, x4 Lane Message signal interrupt Ja Muligheder med lav halogen tilgængelig Ingen Intelligent Offloads Ja Intel® Ethernet Power Administration Ingen Intel® Virtualization Technology for Connectivity (VT-c) Ja Grænsefladetype PCIe v2.0 (2.5 GT/s) Produkttype Network Interface Card Thermal Design Power (TDP) 2,9 W Ethernet adapter ARK ID 50397 Eksportkontrolklassisfikationsnummer (ECCN) 5A992C Automatiseret sporingssystem til vareklassificering (CCATS) G135872 Controller type Intel 82576 Beslagshøjde Low-Profile (LP) / Full-Height (FH) Sokkeltype x4 / x8 / x16 PCI-bus 2.0 (2.5 GT/s) Opbevaring over ethernet iSCSI, NFS Lanceringsdato Q3'08 Netværkskort kabel medium Copper Netværkssikkerhed interfacekort IPSec Netværkskorttype Server Produktbeskrivelse URL http://www.intel.com/Assets/PDF/prodbrief/320116.pdf Status Launched Sidste ændring 63903513 Produktfamilie Intel Gigabit server adapter Produktserie Gigabit Ethernet Adapters (1GbE) Produktkode navn Portville
