iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance -

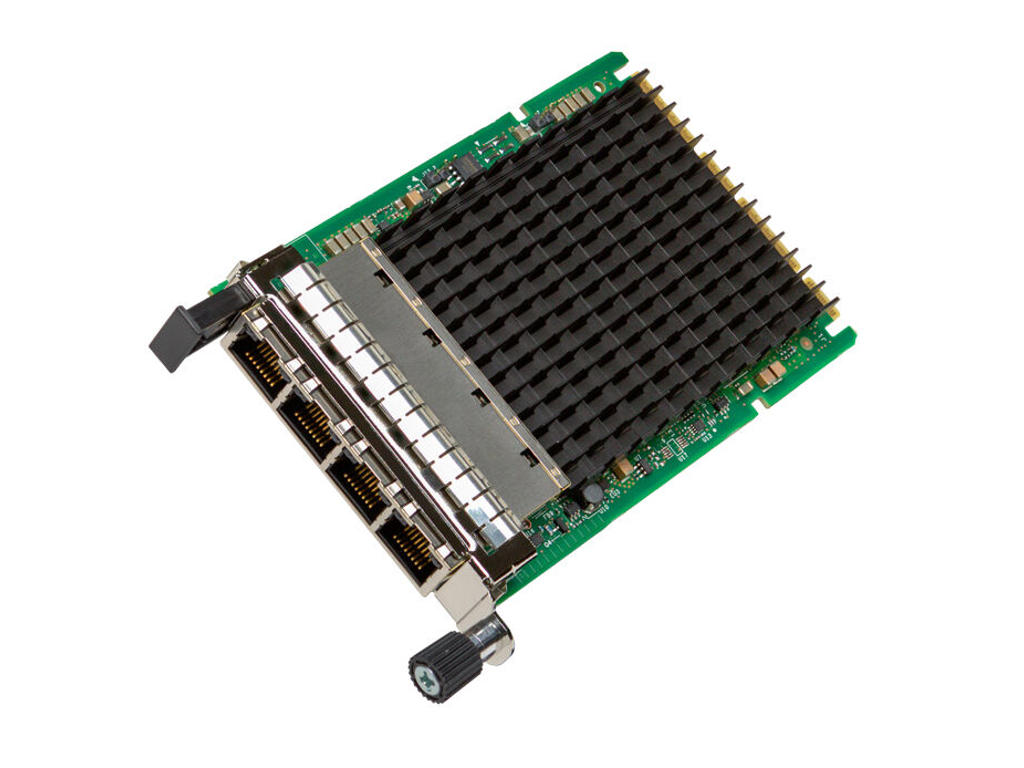

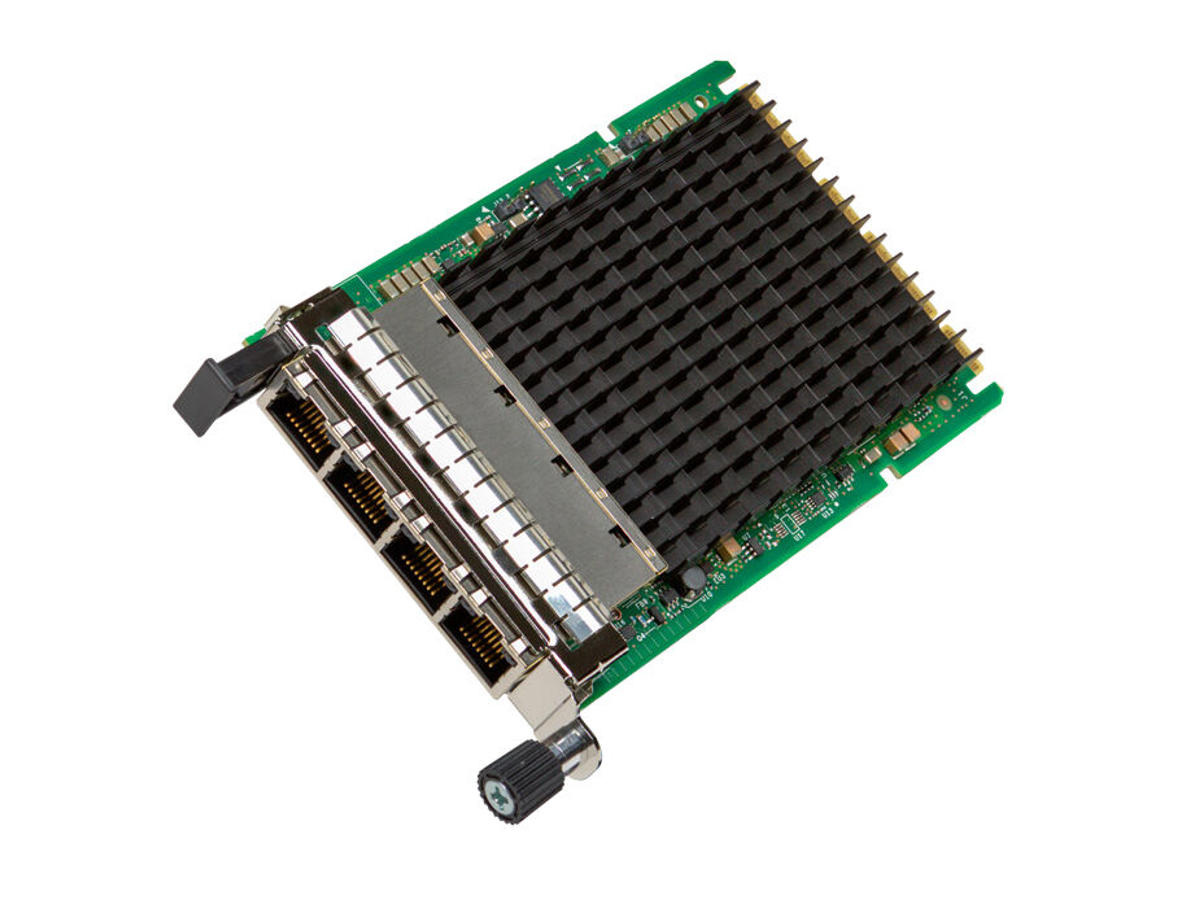

Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Ethernet Ethernet LAN-porte (RJ-45) 4 PCI version 3.0 Netværk Maksimal dataoverførselshastighed 10000 Mbit/s Netværksstandarder IEEE 1588, IEEE 802.1as, IEEE 802.3az Ethernet LAN Ja Ethernet-grænsefladetype 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Hurtigt ethernet, Gigabit Ethernet Maksimal driftstilstand 100 m LAN Kontroller Intel X710-TM4 Design Intern Ja Komponent til Server Systemkrav Kompatible operativsystemer https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html Driftsbetingelser Opbevaringstemperatur (T-T) -40 - 70 °C Vægt & størrelser Bredde 115 mm Dybde 76 mm Logistik data Harmoniseret systemkode (HS) 85176990 Andre funktioner Kabeltype RJ45 Category 6, Category 6A, Category 5e up to 100m Intel® Virtual Machine Device Queues (VMDq) Ja PCI-SIG* SR-IOV kompetent Ja On-chip QoS og trafik administration Ja Intel® Fleksibel Port-deling Ja Speed & slot width 8.0 GT/s, x8 Lane Intelligent Offloads Ja iWARP/RDMA Ingen Intel® Data Direct I/O Teknologi Ja Intel® Virtualization Technology for Connectivity (VT-c) Ja Grænsefladetype PCIe v3.0 (8.0GT/s) Produkttype Network Interface Card Processorserie 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) Eksportkontrolklassisfikationsnummer (ECCN) 5A991 Automatiseret sporingssystem til vareklassificering (CCATS) NA Controller type Intel(R) Ethernet Controller X710-TM4 Beslagshøjde OCP 3.0 Målgruppe Artificial Intelligence, High Performance Computing Opbevaring over ethernet iSCSI, NFS Lanceringsdato Q3'20 Netværkskort kabel medium Copper Netværkskorttype Server Status Launched Produktserie 700 Series Network Adapters (up to 40GbE)
