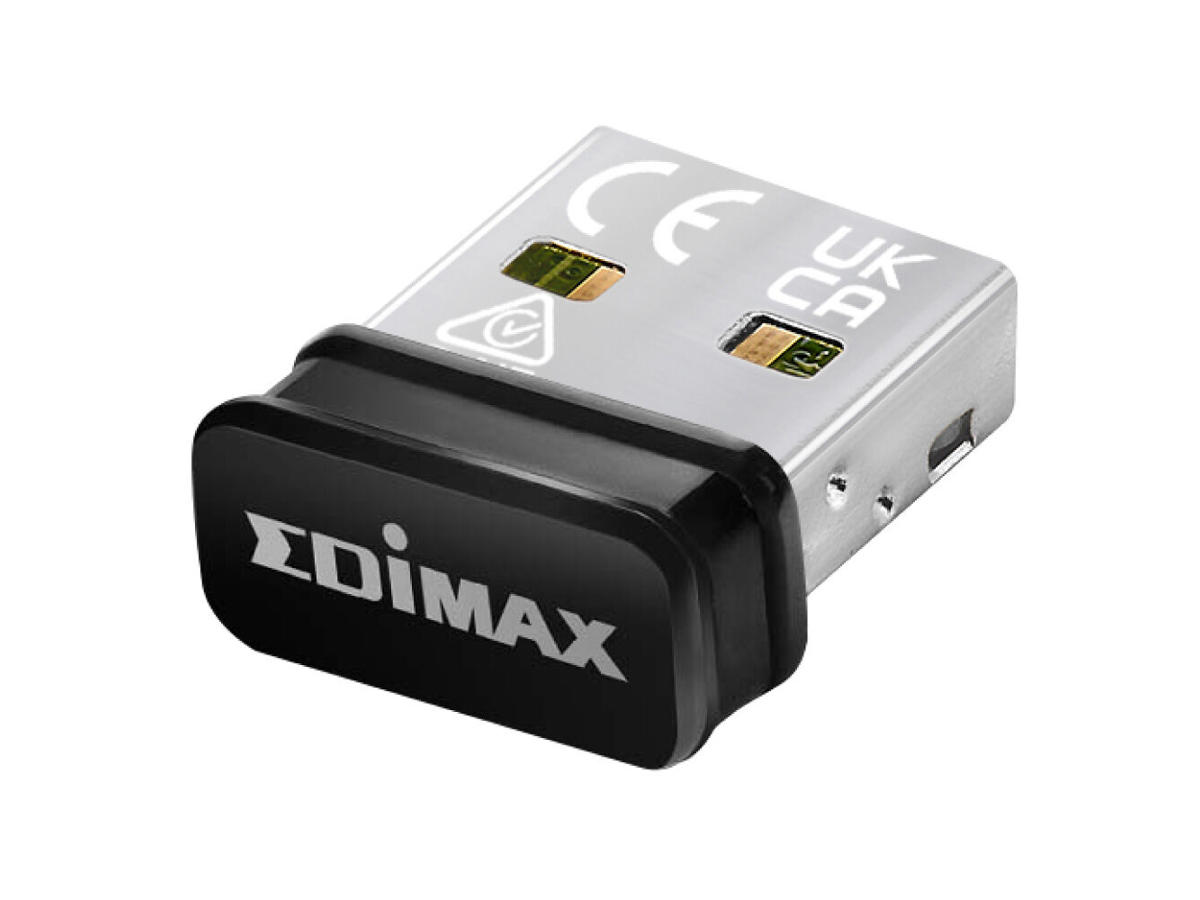

Instant Upgrade to High Speed AC600 Wi-Fi 5
Nano Sized for Stealth and Ease of Carry
Tiny Yet Powerful
High Performance Selectable 2.4GHz and 5GHz Band with Max. Data Transfer Rate up to 433Mbps (5GHz) and 200Mbps* (2.4GHz).
Security that Matters
Equipped with the latest WPA3 protection means that you can rest assured that you are in a safe network environment.
Wide Compatibility
Tested with Windows and Linux, you will sure find it easy, power and smooth to use.
Go Stealth
Renowned compactness, users can insert the nano adapter into any USB port and leave it there. Nano sized for stealth and ease of carry. So tiny that you may forget it is there.
Works with Any Wi-Fi
Backward compliant with 802.11a/b/g/n standards, the EW-7811ULC supports any existing Wi-Fi routers, access points and range extenders.
Embedded Wireless Adapter Solution for Industrial IoT
Tested by Millions
For over 10 years, millions of users and devices count on EDIMAX adapters to connect to the internet. Choose EDIMAX for reliability and ease-of-use. -
Porte & Grænseflader Forbindelsesteknologi Trådløs Værtsgrænseflade USB Grænseflade WLAN Netværk Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Ethernet LAN Ingen Wi-Fi Ja Wi-Fi-bånd Dual-band (2,4 GHz / 5 GHz) Bedste Wi-Fi standard Wi-Fi 5 (802.11ac) Wi-Fi-standarder 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) Understøttede WLAN-dataoverførselshastigheder 11,54,200,433 Mbit/s Sikkerhedsalgoritmer 802.1x RADIUS, WEP, WPA, WPA2, WPA3-SAE, WPS Design Intern Ingen Komponent til PC/Laptop Produktfarve Sort, Grå Antenne Ja Antennedesign Intern Modtager, følsomhed 2.4GHz: 11b(11Mbps): -86±2dBm 11g(54Mbps): -71±2dBm 11n(20MHz, MCS7): -69±2dBm 11n(40MHz, MCS9): -60±2dBm 5GHz: 11a(54Mbps): -67±2dBm 11n(20MHz, MCS7): -65±2dBm 11n(40MHz, MCS7): -57±2dBm 11ac(80MHz, MCS9): -52±2dBm Certificering FCC, BSMI, NCC Systemkrav Understøttede Windows-operativsystemer Ja Understøttede Linux-operativsystemer Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Vægt & størrelser Bredde 15 mm Dybde 17,4 mm Højde 7,2 mm Vægt 2 g Tekniske detaljer Compliance-certifikater CE Bæredygtighed Overholdelse af bæredygtighed Ja
