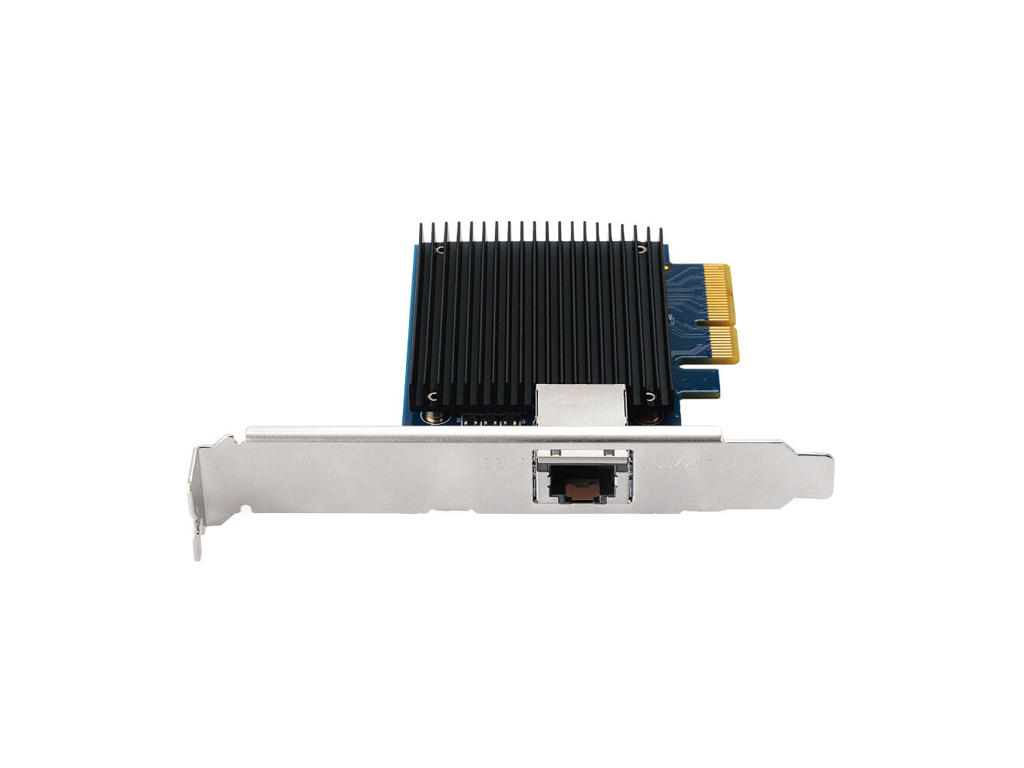

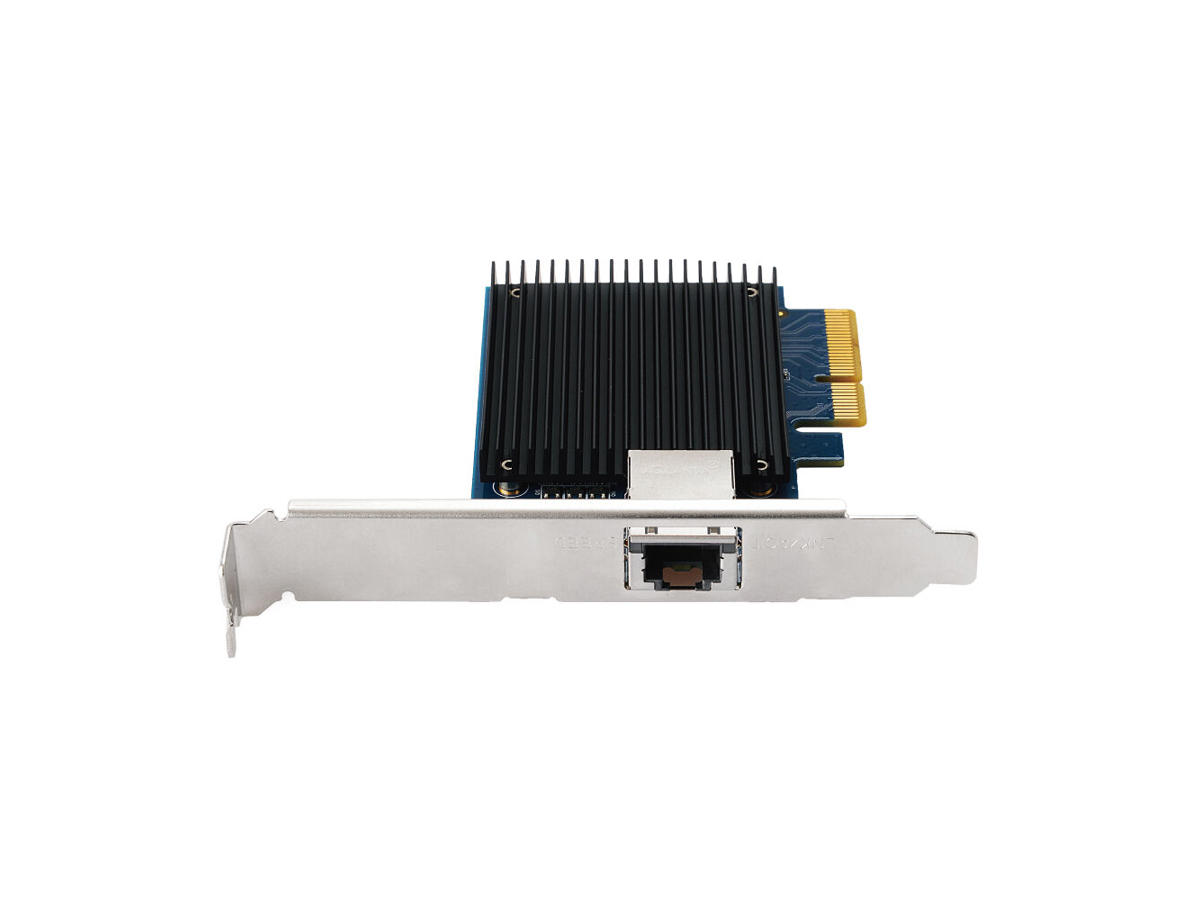

The EN-9320TX-E V2 is a 10 Gigabit Ethernet PCI Express Server Adapter designed for the high-speed PCI Express bus architecture. This meets the high-performance requirements such as large file transfers and HD video editing, which utilizes a high-performance shared storage system to have improved server efficiency and network performance. Connecting the EN-9320TX-E V2 with the RJ45 cable, your system instantly upgraded to superior performance in fast and reliable10Gbps high-speed.
Ultra-Fast 10Gbps Ethernet Networking
With 10GBase-T (10G ) networking technology, the EN-9320TX-E V2 can provide up to 10Gbps network speed, 10 times faster performance than standard Gigabit Ethernet transmissions.
Prioritize Bandwidth for Experiencing the Best
The built-in Quality-of-Service (QoS) technology lets you prioritize applications for a smooth connection experience. With the EN-9320TX-E V2, you can enjoy latency-free traffic for gaming, video conferencing, or media streaming with ease.
Easy Migration 10GbE Adapter
Equipped with a 10 Gigabit RJ45 interface, the EN-9320TW-E V2 is not only a cost-effective solution of 10 Gbps high-speed adapter on 10G Gigabit network, but it also offers full compatibility to 10/5/2.5/1Gbps and 100 Mbps networking standards and readily available copper network.
High Performance with Advanced Features
With the benefits of low-latency, high throughput, and cost-effective, the EN-9320TX-E V2 meets the bandwidth-intensive requirements such as large fil transfers, HD video editing, and online gaming, while utilizes high-performance speeds and shared storage system to have improved server efficiency and network performance.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | PCI Express |
| Grænseflade | Ethernet |
| Ethernet LAN-porte (RJ-45) | 1 |
| Netværk | |
| Maksimal dataoverførselshastighed | 100 Mbit/s |
| Netværksstandarder | IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet |
| Wake-on-LAN klar | Ja |
| Fuld duplex | Ja |
| Design | |
| Intern | Ja |
| Komponent til | PC |
| LED-indikatorer | Link, Hastighed |
| Certificering | CE, FCC |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Ja |
| Understøttede Linux-operativsystemer | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -40 - 85 °C |
| Vægt & størrelser | |
| Bredde | 87 mm |
| Dybde | 67,9 mm |
| Højde | 1,6 mm |
| Vægt | 78,4 g |
| Emballeringsdata | |
| Antal pr. pakke | 1 stk |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
