10X Faster and Further

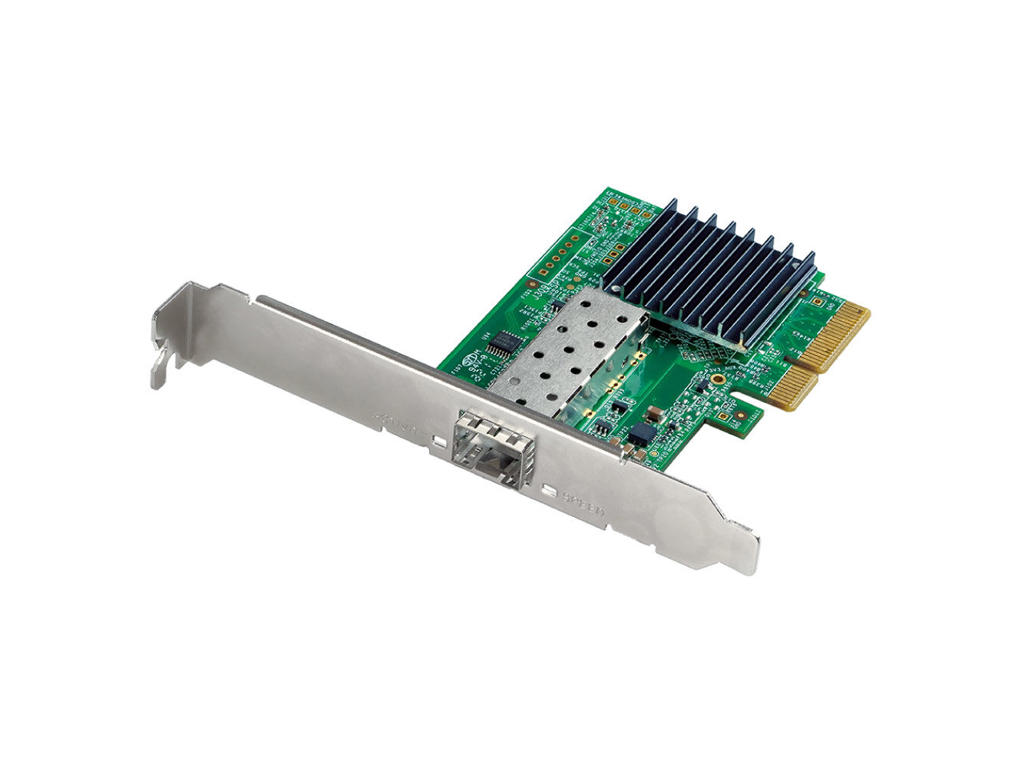

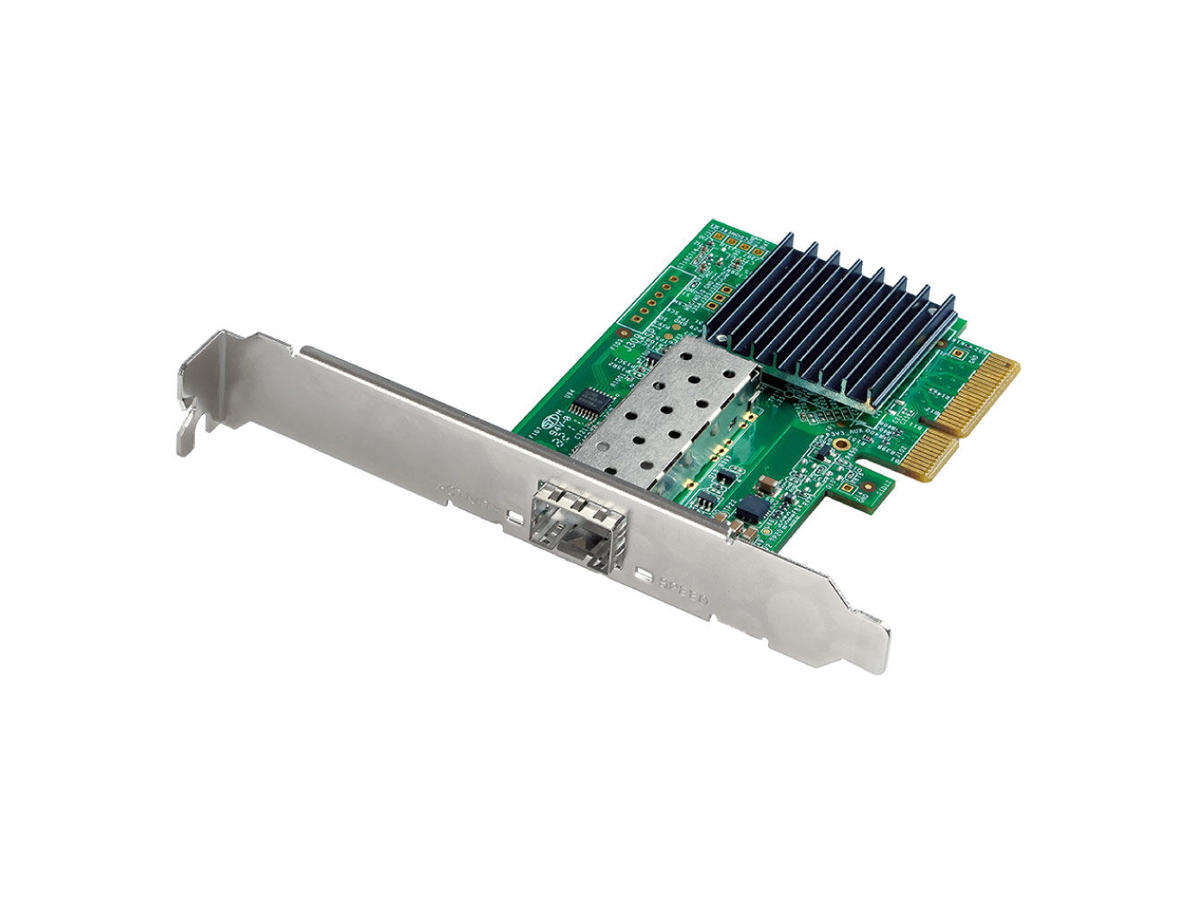

With SFP+ standard, the EN-9320SFP+ V2 PCIe card provides 10X faster than standard Gigabit Ethernet which can easily handle the bandwidth-intensive tasks such as large file transferring, 8K streaming, low-latency gaming and video conferencing at Home/SOHO/SMB environment. With the fiber optical cable, it offers much further distances than the copper cable, not only for the high-speed but also for long distance connection.
VLAN for High Performance
Virtual Local Area Network (VLAN) divides the existing network into several logical networks to separate traffic within a business without additional hardware, further saving costs. Connecte the EN-9320SFP+ V2 to an IEEE 802.1Q VLAN supported switch or network device for better security, higher performance and less latency.
QoS for Bandwith Priority
The built-in Quality-of-Service (QoS) technology lets you prioritize applications for a smooth connection experience. With the EN-9320SFP+ V2, you can enjoy latency-free traffic for big file transferring, gaming, video conferencing, or media streaming with ease.
Enhanced CPU & Network Efficiency
The PCIe card features TCP, UDP, and IP checksum offloading, which offloads checksum processing to the network card to enhance the CPU and network efficiency. With the PCIe Gen 3.0 x4 interface, it is easy to migrate the PCIe card into your existing computes and workstation motherboards. An built-in efficient cooling heatsink keeps the PCIe card cool with non-stop reliable connection while processing high performance tasks.
Flexible Low Profile Bracket
The PCIe card comes pre-configured with a standard installation bracket and includes a low-profile/half-height profile bracket for flexible installation in a wide range of computer, workstations, mini computer, regardless of form factor, providing a convenient addition or replacement SFP+ networking interface.
Best Choice for 10GbE High Performance -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Fiber Fiberkanal porte 1 Fiber optisk strømstik SFP+ Netværk Maksimal dataoverførselshastighed 10000 Mbit/s Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z Ethernet LAN Ja Ethernet-grænsefladetype 10 Gigabit Ethernet Ethernet LAN-datahastigheder 100,1000,10000 Mbit/s Fuld duplex Ja Jumbo Frames support Ja Jumbo rammer 16000 Design Intern Ja Komponent til PC Produktfarve Grøn, Grå Certificering FCC Systemkrav Understøttede Windows-operativsystemer Windows 10, Windows 11, Windows 8, Windows 8.1 Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 82 mm Dybde 62 mm Højde 15 mm Vægt 48 g Emballage indhold Monteringsbeslag inkluderet Ja Hurtig installationsvejledning Ja Tekniske detaljer Compliance-certifikater CE Bæredygtighed Overholdelse af bæredygtighed Ja
