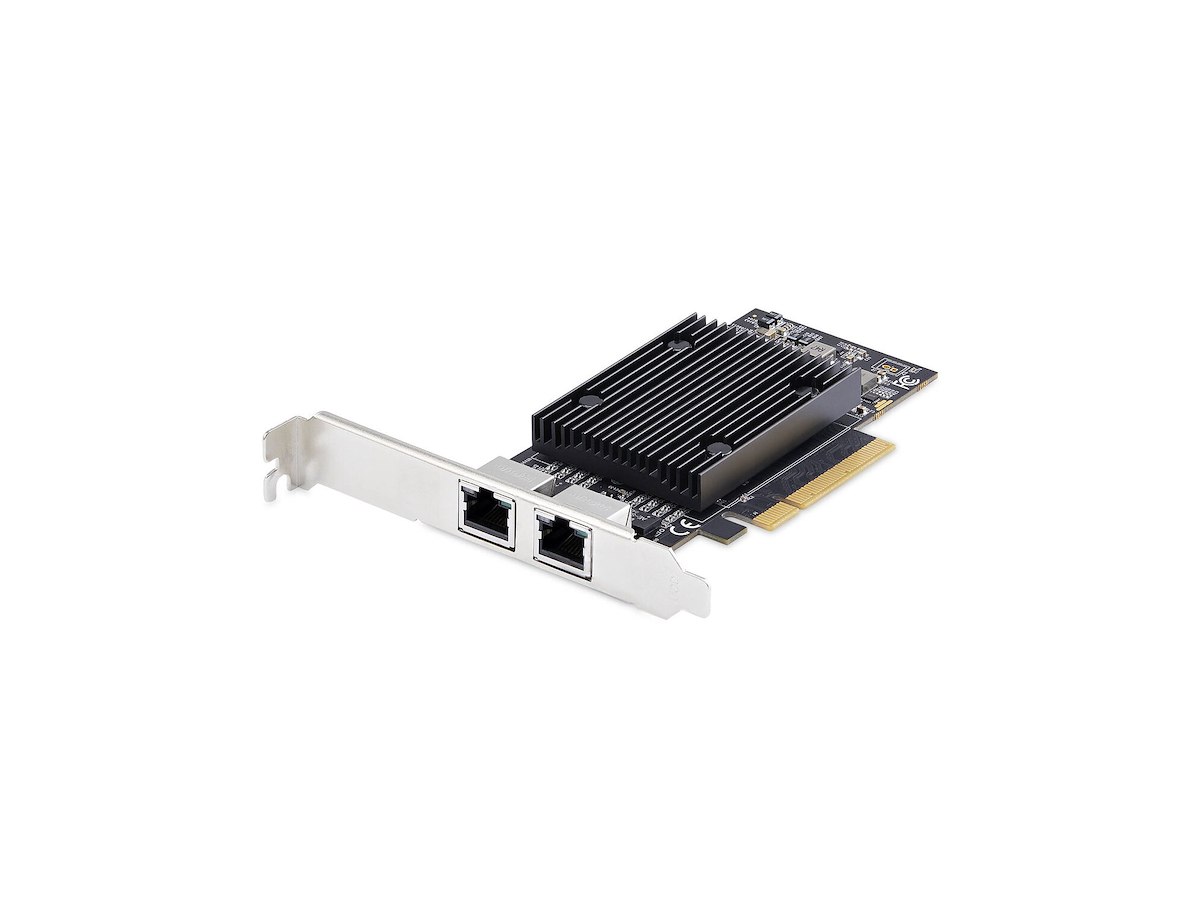

Add two 10 Gigabit Ethernet ports to a PC via copper cable using an available PCIe slot.
This PCIe network card makes it easy to add two 10GBase-T ports to your server or workstation, providing an affordable solution for high-bandwidth applications. It supports 10GbE over Cat 6 cabling up to 55 meters and Cat 6A cabling up to 100 meters.
Versatile and Cost-Effective
Compatible with a broad range of operating systems, this versatile dual-port NIC reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs and online storage/backup. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
High-Performance Connectivity
This 2-port PCI Express 10GBase-T network card features the Broadcom BCM57416 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer.
Compliant with IEEE 802.1Q standards, this network card offers an efficient way to upgrade or replace your existing network ports with dual 1G/10G-compatible RJ45 ports, delivering up to 10Gbps of throughput per port in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
Easy Installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis and includes a low-profile/half-height installation bracket that you can use as needed.
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | PCI Express |
| Grænseflade | Ethernet |
| Ethernet LAN-porte (RJ-45) | 2 |
| PCI version | 2.0 |
| Netværk | |
| Maksimal dataoverførselshastighed | 20000 Mbit/s |
| Netværksstandarder | IEEE 802.1Q, IEEE 802.3ad |
| Ethernet LAN | Ja |
| Auto MDIX IEEE | Ja |
| Fuld duplex | Ja |
| Jumbo Frames support | Ja |
| Auto-forhandling | Ja |
| Jumbo rammer | 9000 |
| VLAN mærkning | Ja |
| Link aggregering | Ja |
| Design | |
| Intern | Ja |
| Komponent til | PC |
| Produktfarve | Sort |
| Chipsæt | Broadcom BCM57416 |
| LED-indikatorer | Aktivitet, Status |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Understøttede Linux-operativsystemer | Ja |
| Understøttede operativsystemer til servere | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 55 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 90% |
| Vægt & størrelser | |
| Bredde | 121 mm |
| Dybde | 146,5 mm |
| Højde | 22 mm |
| Vægt | 122 g |
| Emballeringsdata | |
| Pakkebredde | 170 mm |
| Pakkedybde | 142 mm |
| Pakkehøjde | 30 mm |
| Pakkevægt | 130 g |
| Emballage indhold | |
| Brugervejledning | Ja |
| Tekniske detaljer | |
| Compliance-certifikater | CE, Federal Communications Commission (FCC), RoHS, Lov om handelsaftaler (TAA) |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 605 mm |
| Hovedkassens længde (udvendigt) | 385 mm |
| Hovedkassen højde (udvendigt) | 325 mm |
| Produkter pr. hovedkasse (udvendigt) | 80 stk |
