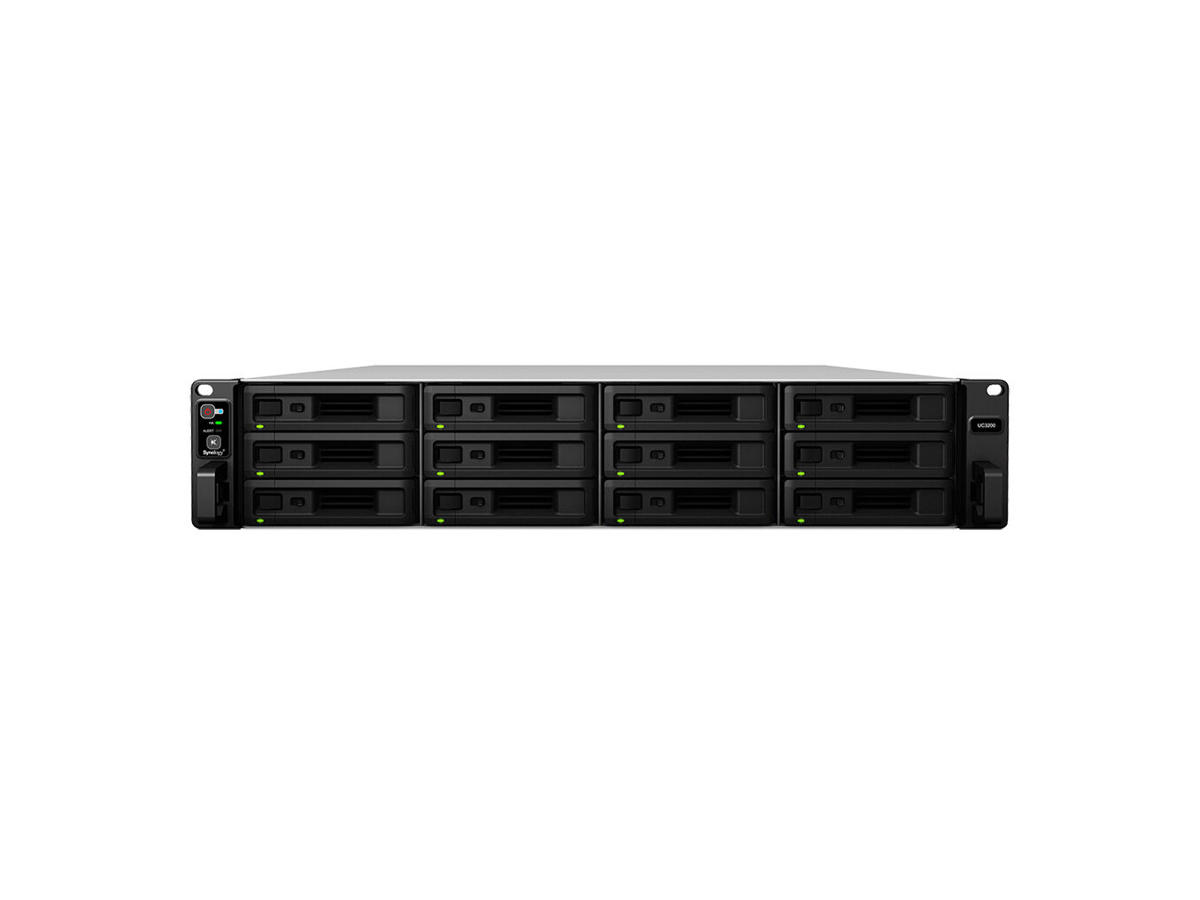

Delivering reliable, highly available iSCSI services Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions. 12 x 3.5”/2.5” HDD/SSD High-performance SAS interface drive slots with maximum 576TB raw capacity. Supporting SED (Self Encrypting Drive) to encrypt all data to hard drives, UC3200 provides upmost data security at the hardware level. Redundant power supply Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure. Active-active controller module Dual controller modules work simultaneously to provide high performance and non-disruptive iSCSI services. PCIe 3.0 slot Further boost network bandwidth with optional 10GbE/25GbE network interface cards' expansion. 2 x 1GbE & 1 x 10GbE Onboard RJ45 interfaces of 1GbE and 10GbE with the Link Aggregation support. Mini-SAS HD port Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion. Processor Armed with Intel® Xeon® D-1521 4-core 2.4 GHz processor burst up to 2.7 GHz, UC3200’s dual CPUs provide enterprise-class performance of 140,000 4K random write IOPS with low latency. 4 x DDR4 memory slots 8GB ECC UDIMM, expandable up to 64GB to boost system performance. Fan Redundant, modularized fans for easy maintenance and replacement, minimizing service downtime. SATA DOM The dedicated SATA DOM isolates the operating system from the regular data stored in hard drives. Non-Transparent Bridge (NTB) Connect two controller modules at a blazingly fast speed and instantly sync memory data between the controllers to prevent cached data loss when one controller is unavailable. Works with mainstream virtualization systems Optimized for virtualization environments. - Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimize computational efficiency. - Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates. - Turn Synology UC3200 into a block-based storage component with the support of OpenStack® Cinder. - Compliance with iSCSI industry standard ALUA allows hosts to identify the optimized paths to increase data transfer performance and efficiency. A system built exclusively for iSCSI DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible. Disaster-proof your critical data Snapshot Replication is put in place with the support of Btrfs file system, offering schedulable and near-instantaneous data protection. Supporting up to 4,096 system-wide snapshots for local volumes or offsite servers, UC3200 brings application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.
Lagring | |
Datalagringsdriver installeret | Ingen |
Antal understøttede lagerdiske | 12 |
Installeret lagerdisktype | Ingen |
Understøttet datalagringsdrev typer | HDD & SSD |
Understøtter RAID | Ja |
Understøttede lagerdrev brugerflader | Serial Attached SCSI (SAS) |
Understøttede lagerdisk størrelser | 2.5,3.5" |
Maksimalt understøttet lagerkapacitet | 192 TB |
RAID-niveauer | 0, 1, 5, 6, 10, F1, JBOD |
Hot-swap drevbåse | Ja |
Understøttede filsystemer | BTRFS |
Processor | |
Processorserie | Intel® Xeon® D, Intel Xeon D-1500 |
Processorproducent | Intel |
Processormodel | D-1521 |
Processorfrekvens | 2,4 GHz |
Processor boost frekvens | 2,7 GHz |
Processorkerner | 4 |
Processortråde | 8 |
Processor-cache | 6 MB |
CPU-konfiguration (maks.) | 1 |
PCI Express-konfigurationer | 1x16, 1x4, 1x8 |
PCI Express slots version | 2.0, 3.0 |
Processor kode | SR2DF |
Processor kodenavn | Broadwell |
Processor litografi | 14 nm |
Processor driftstilstande | 64-bit |
Processor-pakke størrelse | 37.5 x 37.5 mm |
Processor sokkel | BGA 1667 |
Skalerbarhed | 1S |
Stepping | V2 |
Thermal Design Power (TDP) | 45 W |
Maksimal intern hukommelse understøttet af processor | 128 GB |
Konfliktfri processor | Ja |
Hukommelse | |
Intern hukommelse | 8 GB |
Intern hukommelsestype | DDR4 |
Maksimal understøttede RAM | 64 GB |
Hukommelsesstik | 4 |
Hukommelse form faktor | UDIMM |
Netværk | |
Ethernet LAN | Ja |
Ethernet LAN-datahastigheder | 1000,10000 Mbit/s |
Ethernet LAN datahastighed understøttet (maks.) | 10000 Mbit/s |
Wi-Fi | Ingen |
iSCSI-understøttelse | Ja |
Understøttede netværksprotokoller | iSCSI, Telnet, SSH, SNMP |
Link aggregering | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 3 |
USB-port | Ingen |
PCI Ekspres x8 (Gen 3.x) slots | 1 |
Design | |
Kabinettype | Stativ (2U) |
Kølingstype | Aktiv |
Produktfarve | Sort, Grå |
Antal blæsere | 2 blæser(e) |
Ventilator diameter | 6 cm |
LED-indikatorer | Strøm, Status |
Præstation | |
Type | SAN |
Enhedsklasse | Små & mellemstore virksomheder |
Backup funktion | Ja |
Backup detaljer | iSCSI LUN |
Flersproget support | Ja |
Støjniveau | 51,3 dB |
Snapshot | Ja |
Webbaseret administration | Ja |
Knap til nulstilling | Ja |
Tænd-/slukkontakt | Ja |
Understøttet browser | Chrome, Firefox, Edge,Internet Explorer 10+, Safari 10+, Chrome |
Software | |
Understøttede Linux-operativsystemer | Ja |
Understøttede operativsystemer til servere | Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016 |
Andre understøttede operativsystemer | Solaris 10, Solaris 11, VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5 |
Strømstyring | |
Placering af strømforsyning | Indbygget |
Strømforsyningens kapacitet (PCU) | 500 W |
Antal strømforsyninger | 1 |
Redundant strømforsyning | Ja |
Strømforbrug (typisk) | 417,48 W |
Strømforbrug (HDD standby) | 274,38 W |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Vægt & størrelser | |
Bredde | 482 mm |
Dybde | 724 mm |
Højde | 88 mm |
Vægt | 19,7 kg |
Emballage indhold | |
Kabler inkluderet | Vekselstrøm |
Hurtig installationsvejledning | Ja |
Tekniske detaljer | |
Bæredygtighedscertifikater | RoHS |
Processor særlige funktioner | |
Indlejret tilgængelige muligheder | Ingen |
Enhanced Intel SpeedStep Teknologi | Ja |
Udfør deaktivering af bit | Ja |
Idle status | Ja |
Intel® 64 | Ja |
Intel® Enhanced Halt State | Ja |
Intel® Secure Key Technology version | 1,00 |
Intel® Trusted Execution Teknologi | Ja |
Intel® TSX-NI | Ja |
Intel® TSX-NI-version | 1,00 |
Intel® Virtualization Technology (VT-x) | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
Intel® OS Guard | Ja |
Intel® Sikker Nøgle | Ja |
Intel® Turbo Boost Teknologi | 2.0 |
Maksimalt antal PCI Express-kanaler | 32 |
Termiske overvågningsteknologier | Ja |
UART | Ja |
Hukommelsestyper understøttet af processor | DDR3-SDRAM, DDR4-SDRAM |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 35 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Opbevaringstemperatur (T-T) | -20 - 60 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
Driftshøjde | 0 - 5000 m |
Godkendelser | |
Certificering | EAC VCCI CCC RCM KC FCC CE BSMI |
Logistik data | |
Harmoniseret systemkode (HS) | 84714100 |
Andre funktioner | |
Processor ARK ID | 91202 |
