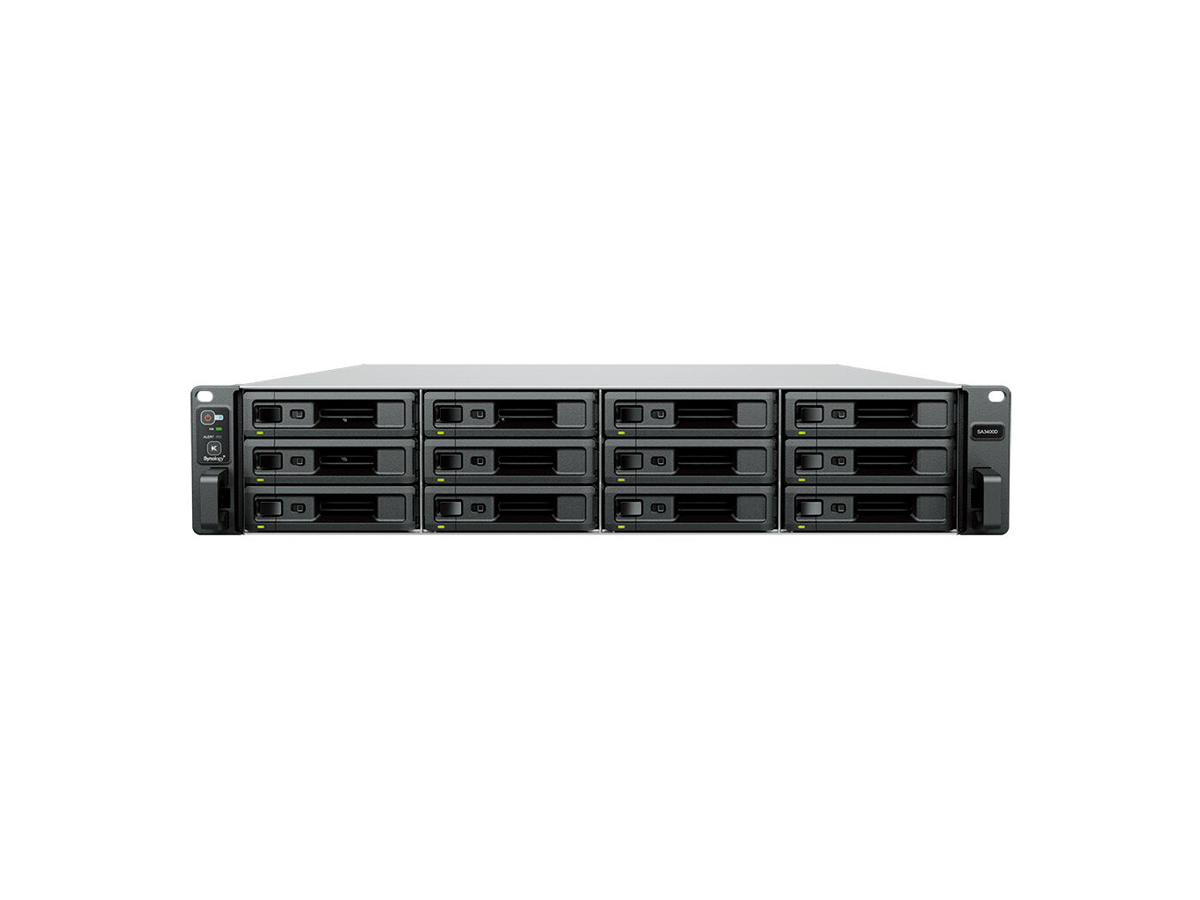

Synology SA3400D NAS & lagringsserver Stativ (2U) Ethernet LAN D-1541
Varenummer: SA3400D
.
DKK 111.168,75 / Stk
DKK 88.935,00 ekskl. moms
  •
Synology SA3400D. Understøttet datalagringsdrev typer: HDD & SSD, Grænseflade til lagerdisk: Serial Attached SCSI (SAS), Understøttede lagerdisk størrelser: 2.5,3.5". Processorserie: Intel® Xeon® D, Processorproducent: Intel, Processormodel: D-1541. Intern hukommelse: 8 GB, Intern hukommelsestype: DDR4, Maksimal understøttede RAM: 64 GB. Understøttede netværksprotokoller: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel,.... Kabinettype: Stativ (2U), Kølingstype: Aktiv, Antal blæsere: 2 blæser(e)


Mere information

  • Built-in High Availability
    Keep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.

    Made for demanding environments
    The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fibre Channel block storage applications.

    Consolidate your data infrastructure
    Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.

    Flexible options to meet changing needs
    Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.

    Add storage capacity on demand
    Scale server capacity up to 576 TB7 when your data storage needs increase by adding two 12-bay RXD1219sas expansion units.

    Boost network and I/O performance
    Add 10/25GbE connectivity with optional add-in cards.8 Create all-flash storage volumes with SAS SSD for lightening-fast I/O, or boost IOPS and cut down latency on HDD volumes by creating SAS SSD read/write cache volumes.

    Performance backed by Synology drives
    Engineered to handle intensive workloads, Synology hard drives consistently deliver top-grade performance.

  • Lagring
    Datalagringsdriver installeret Ingen
    Antal understøttede lagerdiske 12
    Installeret lagerdisktype Ingen
    Understøttet datalagringsdrev typer HDD & SSD
    Grænseflade til lagerdisk Serial Attached SCSI (SAS)
    Understøtter RAID Ja
    Understøttede lagerdisk størrelser 2.5,3.5"
    RAID-niveauer 0, 1, 5, 10, JBOD
    Hot-swap drevbåse Ja
    Understøttede filsystemer BTRFS, ext4
    Processor
    Processorserie Intel® Xeon® D
    Processorproducent Intel
    Processormodel D-1541
    Processorfrekvens 2,1 GHz
    Processor boost frekvens 2,7 GHz
    Processorkerner 8
    Processor-cache 12 MB
    CPU-konfiguration (maks.) 1
    Hukommelse
    Intern hukommelse 8 GB
    Intern hukommelsestype DDR4
    Maksimal understøttede RAM 64 GB
    Netværk
    Ethernet LAN Ja
    Understøttede netværksprotokoller SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
    Link aggregering Ja
    Porte & Grænseflader
    Ethernet LAN-porte (RJ-45) 3
    USB-port Ingen
    Design
    Kabinettype Stativ (2U)
    Kølingstype Aktiv
    Antal blæsere 2 blæser(e)
    Ventilator diameter 6 cm
    Præstation
    Type NAS
    Backup funktion Ja
    Antal brugere 16000 bruger(e)
    Adgangskontrolliste (ACL) Ja
    Knap til nulstilling Ja
    Strømstyring
    Strømforsyningens kapacitet (PCU) 500 W
    Antal strømforsyninger 2
    Redundant strømforsyning Ja
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50/60 Hz
    Vægt & størrelser
    Bredde 482 mm
    Dybde 724 mm
    Højde 88 mm
    Vægt 19,7 kg
    Processor særlige funktioner
    Intel® Secure Key Technology version 1,00
    Intel® TSX-NI-version 1,00
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 35 °C
    Relativ luftfugtighed ved drift (H-H) 5 - 95%
    Opbevaringstemperatur (T-T) -20 - 60 °C
