An all-in-one edge storage solution

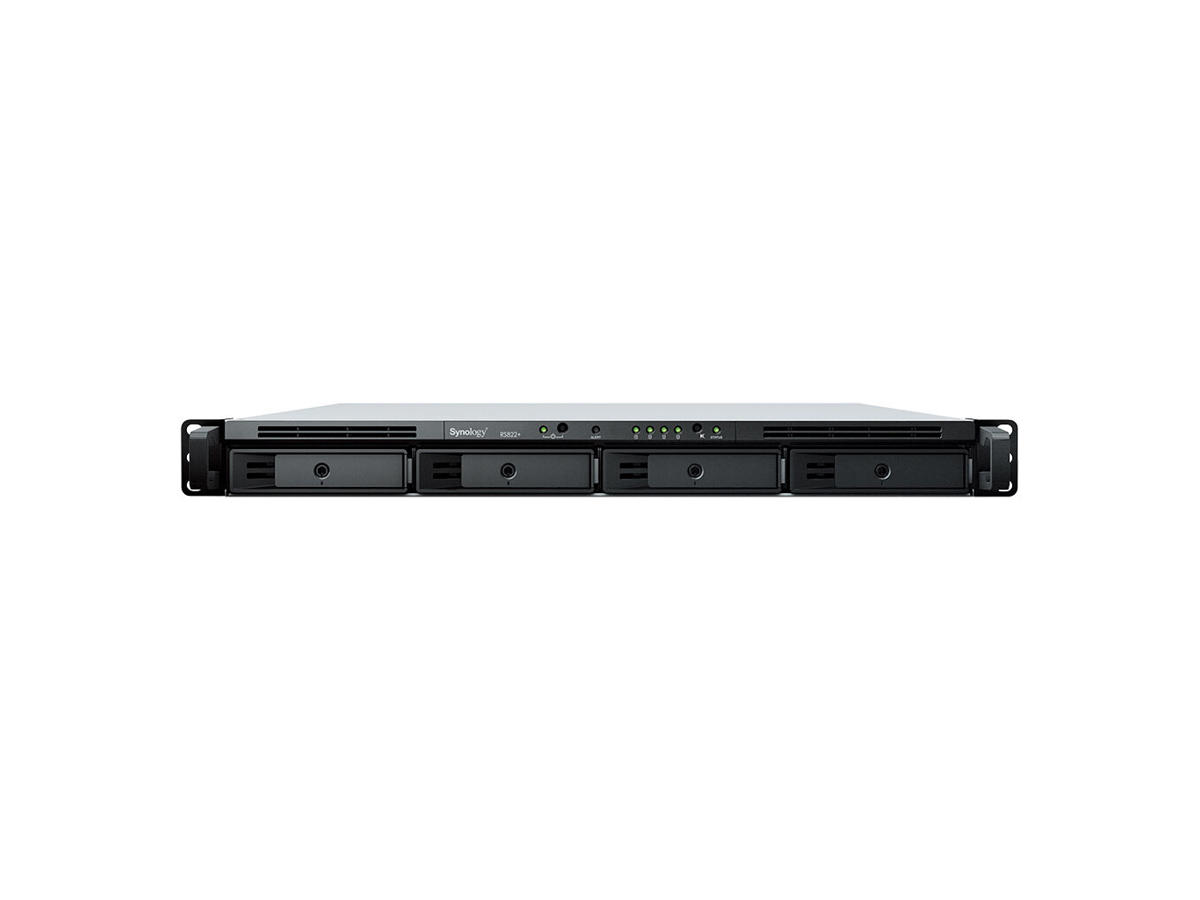

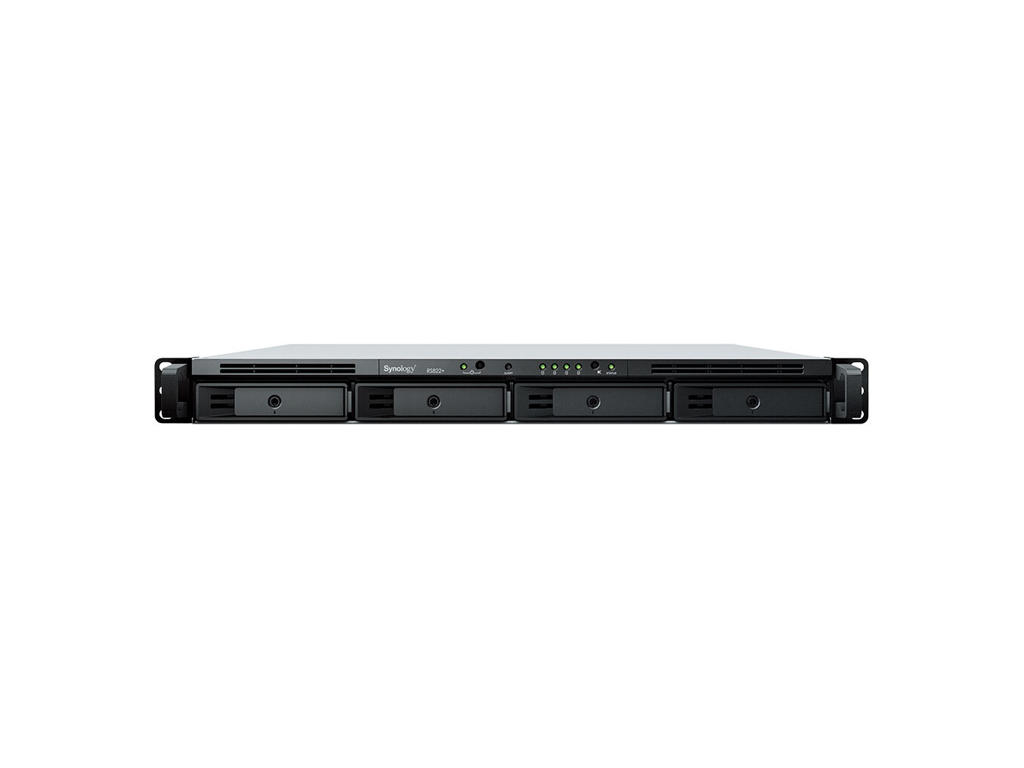

The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Built for reliability
RS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
All-in-one data management platform
The RS822+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
| Lagring | |
| Datalagringsdriver installeret | Ingen |
| Antal understøttede lagerdiske | 4 |
| Installeret lagerdisktype | Ingen |
| Understøttet datalagringsdrev typer | HDD & SSD |
| Understøtter RAID | Ja |
| Understøttede lagerdrev brugerflader | SATA |
| Maksimalt understøttet lagerkapacitet | 108 TB |
| RAID-niveauer | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drevbåse | Ja |
| Understøttede filsystemer | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Processor | |
| Processorserie | Ryzen Embedded |
| Processorproducent | AMD |
| Processormodel | V1500B |
| Processorfrekvens | 2,2 GHz |
| Processorgeneration | AMD Ryzen Embedded V1000 Series |
| Processorkerner | 4 |
| Processortråde | 8 |
| On-board grafikkort, model | Ikke tilgængelig |
| Hukommelse | |
| Intern hukommelse | 2 GB |
| Intern hukommelsestype | DDR4 |
| Maksimal understøttede RAM | 32 GB |
| Hukommelse form faktor | SO-DIMM |
| Netværk | |
| Wake-on-LAN klar | Ja |
| Understøttede netværksprotokoller | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP) |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 4 |
| USB-port | Ja |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 1 |
| Antal eSATA-porte | 1 |
| PCI Ekspres x8 (Gen 3.x) slots | 1 |
| Design | |
| Antal blæsere | 3 blæser(e) |
| LED-indikatorer | Alarm, Strøm, Status |
| Præstation | |
| Type | NAS |
| Backup funktion | Ja |
| Adgangskontrolliste (ACL) | Ja |
| Knap til nulstilling | Ja |
| Tænd-/slukkontakt | Ja |
| Software | |
| Operativsystem installeret | DSM |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Vægt & størrelser | |
| Bredde | 430,5 mm |
| Dybde | 457,6 mm |
| Højde | 44 mm |
| Vægt | 6,4 kg |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 35 °C |
| Relativ luftfugtighed ved drift (H-H) | 8 - 80% |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
| Driftshøjde | 0 - 5000 m |
| Andre funktioner | |
| Certificering | FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL |
