Varenummer: RS3621RPXS/144T/12X12T
Mere information
-
Safeguard your business assets

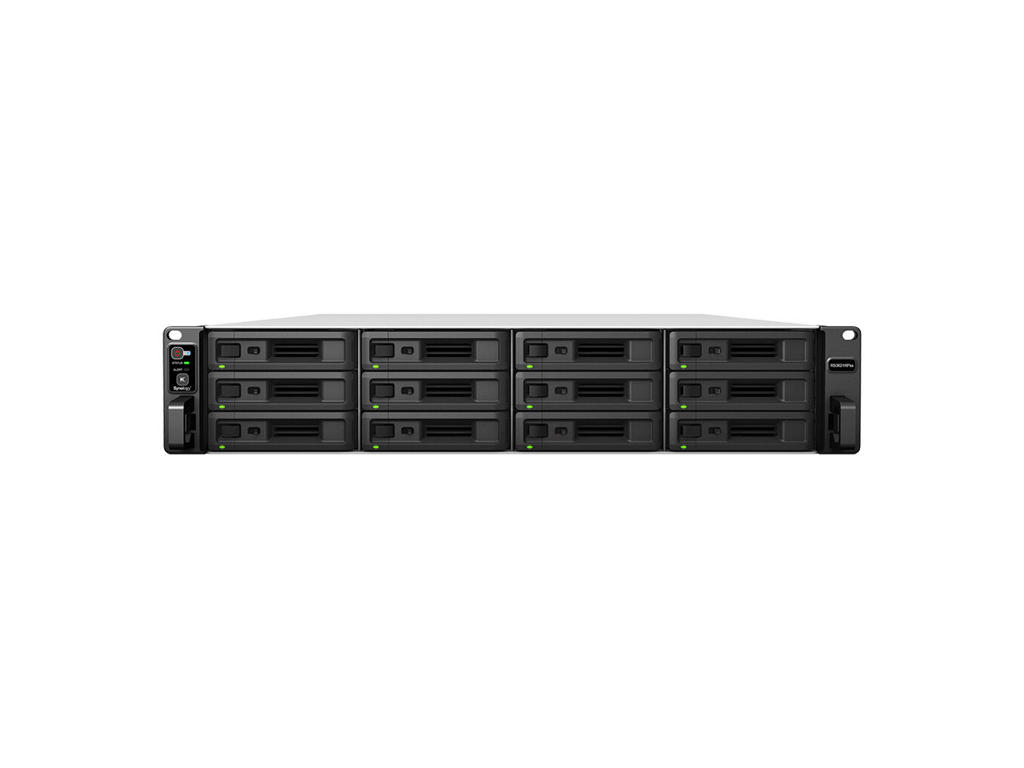

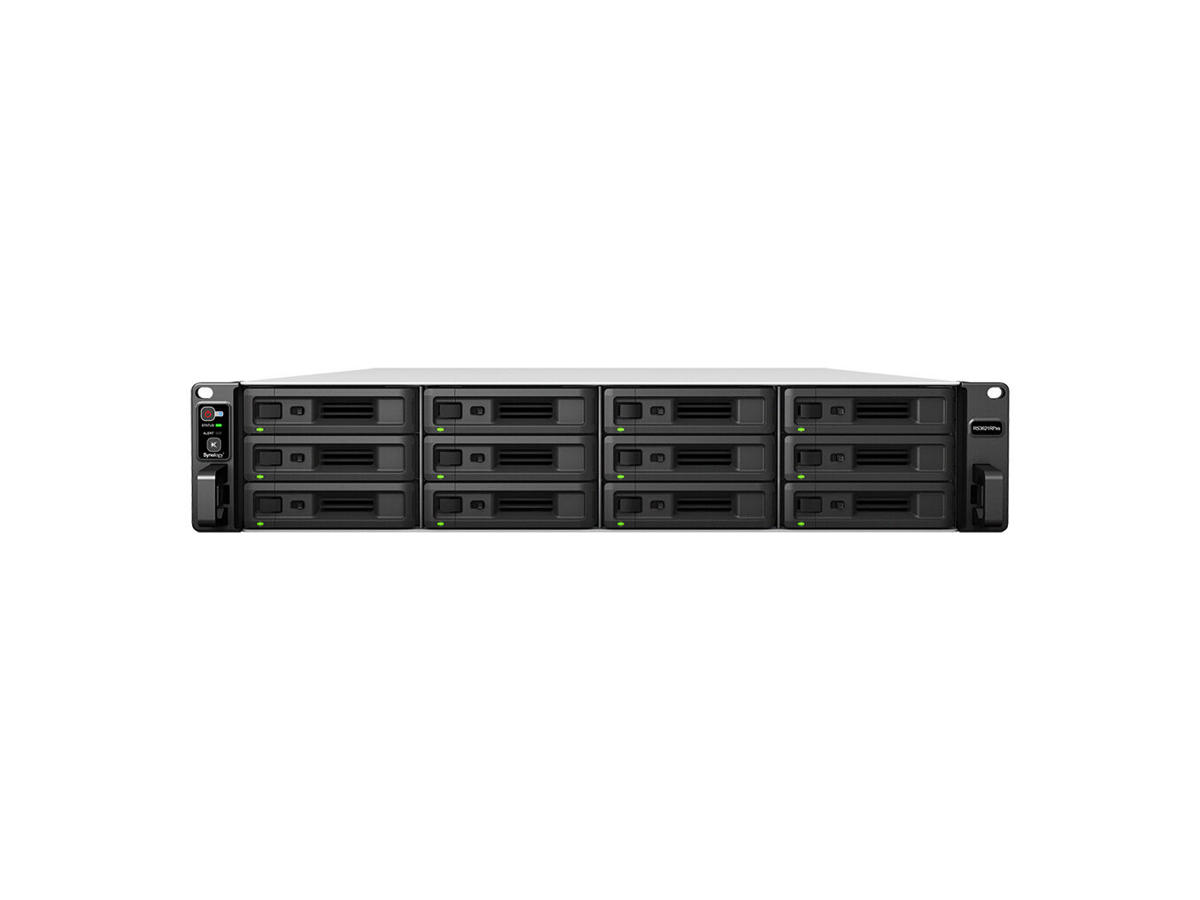

Synology RS3621RPxs is a powerful 12-bay storage server. Its 6-core processor enables compute-intensive services while its redundant power, ECC memory, and Btrfs file system safeguard mission-critical data. Capable of delivering 189,098 4K random read IOPS and 4,718 MB/s sequential read throughput1, it is ideal for small businesses.
Reliability first
Service continuity is at the core of the RS3621RPxs design.
Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.
Near-zero downtime
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.
Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.
Customize to suit
The two built-in PCIe slots allow users to customize the RS3621RPxs to satisfy unique performance, networking, and storage requirements2.
10GbE ready
Support for 10GbE NICs expands the throughput of the unit by up to 5x times using link aggregation.
SSD cache3
Boost read/write IOPS by up to 16 times by enabling SSD cache via our Synology M.2 NVMe adapter cards and SNV3000 Series SSDs or by installing one or more 2.5” SAT5200 SSDs.
On-demand drive bays
Expand to 36 drive bays using two RX1217(RP) expansion units with minimal intervention.
Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication4, integrity checks, and incremental transfer technology reduce bandwidth and storage used.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Storage for virtualization
Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments
Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance. -
Lagring Datalagringsdriver installeret Ja Total installeret opbevaringskapacitet 144 TB Antal installerede lagerdiske 12 Antal understøttede lagerdiske 12 Installeret lagerdisktype HDD Understøttet datalagringsdrev typer HDD & SSD Kapacitet af datalagringsdrev 12 TB Understøtter RAID Ja Understøttede lagerdrev brugerflader Serial ATA II, Serial ATA III Understøttede lagerdisk størrelser 3.5,2.5" RAID-niveauer 0, 1, 5, 6, 10, F1, JBOD Online RAID-migrering Ja Online RAID-udvidelse Ja Hot-swap drevbåse Ja Understøttede filsystemer BTRFS, Fedt, HFS+, NTFS, exFAT, ext3, ext4 Processor Processorserie Intel® Xeon® D Processorproducent Intel Processormodel D-1531 Processorfrekvens 2,2 GHz Processor boost frekvens 2,7 GHz Processorkerner 6 Processortråde 12 Processor-cache 9 MB CPU-konfiguration (maks.) 1 Konfliktfri processor Ja Hukommelse Intern hukommelse 8 GB Intern hukommelsestype DDR4 Maksimal understøttede RAM 64 GB Hukommelsesstik 4 Hukommelse form faktor UDIMM Fejlkorrigerende kode Ja Netværk Ethernet LAN Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s iSCSI-understøttelse Ja Wake-on-LAN klar Ja Understøttede netværksprotokoller SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN Link aggregering Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 4 USB-port Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 2 PCI Ekspres x8 (Gen 3.x) slots 2 Design Kabinettype Stativ (2U) Kølingstype Aktiv Produktfarve Sort Antal blæsere 4 blæser(e) Ventilator diameter 8 cm LED-indikatorer Ja Præstation Type NAS Enhedsklasse Små & mellemstore virksomheder Backup funktion Ja Backup detaljer Cloud, iSCSI LUN Flersproget support Ja Antal brugere 4000 bruger(e) Støjniveau 50,2 dB Tredjepart support Ja Snapshot Ja Webbaseret administration Ja Sikkerhedsalgoritmer HTTPS, SSH, SSL/TLS Adgangskontrolliste (ACL) Ja Knap til nulstilling Ja Tænd-/slukkontakt Ja Indbygget iTunes server Ja Indbygget FTP-server Ja Understøttet browser Chrome, Firefox, Edge, Internet Explorer, Safari System logfil Ja Filmappe SMB/NFS/AFP/FTP Software Operativsystem installeret DiskStation Manager Understøttede Windows-operativsystemer Ja Understøttede Mac-operativsystemer Ja Strømstyring Placering af strømforsyning Indbygget Strømforsyningens kapacitet (PCU) 500 W Redundant strømforsyning Ja Strømforbrug (typisk) 140,01 W Strømforbrug (HDD standby) 65,94 W Vekselstrømsindgangsspænding 100 - 240 V Vægt & størrelser Bredde 482 mm Dybde 724 mm Højde 88 mm Emballage indhold Kabler inkluderet Vekselstrøm Antal strømkabler 2 Processor særlige funktioner Indlejret tilgængelige muligheder Ingen Enhanced Intel SpeedStep Teknologi Ja Udfør deaktivering af bit Ja Idle status Ja Intel® 64 Ja Intel® Enhanced Halt State Ja Intel® Secure Key Technology version 1,00 Intel® Trusted Execution Teknologi Ja Intel® TSX-NI Ja Intel® TSX-NI-version 1,00 Intel® Virtualization Technology (VT-x) Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® VT-x with Extended Page Tables (EPT) Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 35 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Driftshøjde 0 - 5000 m Andre funktioner Compliance-certifikater RoHS Bæredygtighed Overholdelse af bæredygtighed Ja
