Fast and scalable all-flash NAS

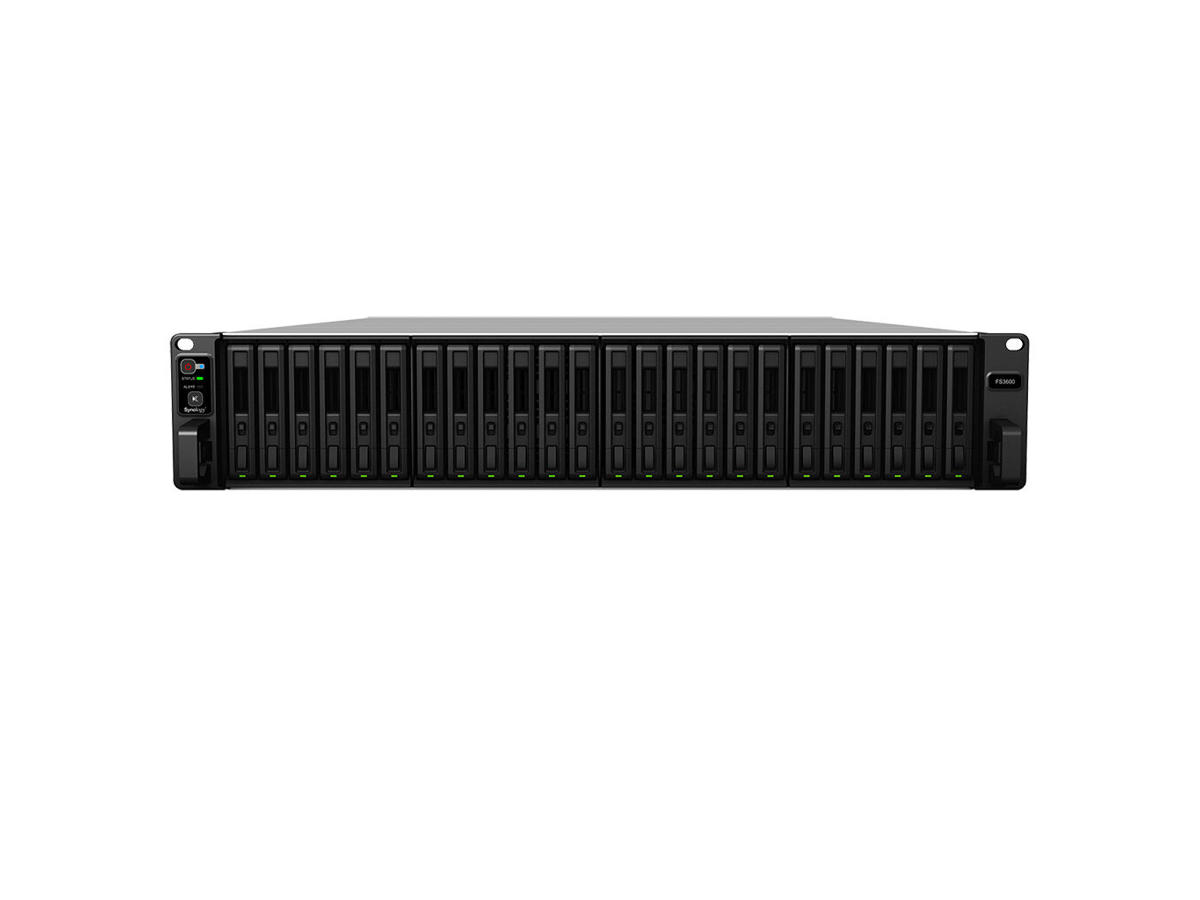

FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS1 to satisfy enterprise demand for high-speed infrastructure.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention -
Lagring Datalagringsdriver installeret Ingen Total installeret opbevaringskapacitet 0 TB Antal installerede lagerdiske 0 Antal understøttede lagerdiske 24 Installeret lagerdisktype Ingen Understøttet datalagringsdrev typer HDD & SSD Kapacitet af datalagringsdrev 0 GB Understøtter RAID Ja Understøttede lagerdrev brugerflader Serial ATA III, Serial Attached SCSI (SAS) Hot-swap drevbåse Ja Understøttede filsystemer BTRFS, Fedt, HFS+, NTFS, exFAT, ext3, ext4 Processor Processorserie Intel® Xeon® D, Intel Xeon D-1500 Processorproducent Intel Processormodel D-1567 Processorfrekvens 2,1 GHz Processor boost frekvens 2,7 GHz Processorkerner 12 Processortråde 24 Processor-cache 18 MB L3-cache 18 MB CPU-konfiguration (maks.) 1 PCI Express-konfigurationer 1x16, 1x4, 1x8 PCI Express slots version 2.0, 3.0 Processor cache type L3 Processor kode SR2M3 Processor kodenavn Broadwell Processor litografi 14 nm Processor driftstilstande 64-bit Processor-pakke størrelse 37.5 x 37.5 mm Processor sokkel BGA 1667 Skalerbarhed 1S Stepping Y0 Thermal Design Power (TDP) 65 W Maksimal intern hukommelse understøttet af processor 128 GB Konfliktfri processor Ja Hukommelse Intern hukommelse 16 GB Intern hukommelsestype DDR4 Maksimal understøttede RAM 128 GB Hukommelsesstik 4 Hukommelse form faktor DIMM Netværk Ethernet LAN Ja Ethernet LAN-datahastigheder 10,100,1000,10000 Mbit/s iSCSI-understøttelse Ja Understøttede netværksprotokoller SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP) Dynamisk DNS (DDNS) Ja Porte & Grænseflader Ethernet LAN-porte (RJ-45) 6 USB-port Ja Antal USB 2.0-porte 0 Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 2 Fiberkanal porte 0 Design Kabinettype Stativ (2U) Kølingstype Aktiv Produktfarve Sort Antal blæsere 4 blæser(e) Ventilator diameter 8 cm Præstation Type NAS Enhedsklasse Små & mellemstore virksomheder Backup funktion Ja Backup detaljer Cloud, USB drev Støjniveau 57 dB Strømstyring Placering af strømforsyning Indbygget Strømforsyningens kapacitet (PCU) 500 W Antal strømforsyninger 1 Redundant strømforsyning Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Vægt & størrelser Bredde 482 mm Dybde 724 mm Højde 88 mm Vægt 14,9 kg Processor særlige funktioner Indlejret tilgængelige muligheder Ja Enhanced Intel SpeedStep Teknologi Ja Udfør deaktivering af bit Ja Idle status Ja Intel® 64 Ja Intel® Enhanced Halt State Ja Intel® Secure Key Technology version 1,00 Intel® Trusted Execution Teknologi Ja Intel® TSX-NI Ja Intel® TSX-NI-version 1,00 Intel® Virtualization Technology (VT-x) Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® OS Guard Ja Intel® Sikker Nøgle Ja Intel® Turbo Boost Teknologi 2.0 Maksimalt antal PCI Express-kanaler 32 Termiske overvågningsteknologier Ja UART Ja Hukommelsestyper understøttet af processor DDR3-SDRAM, DDR4-SDRAM Driftsbetingelser Driftstemperatur (T-T) 0 - 35 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Logistik data Harmoniseret systemkode (HS) 84714100 Andre funktioner Compliance-certifikater RoHS Processor ARK ID 93356
