Economical, high-performance data management solution for SMBs
Harness all-flash storage to speed up business workflows

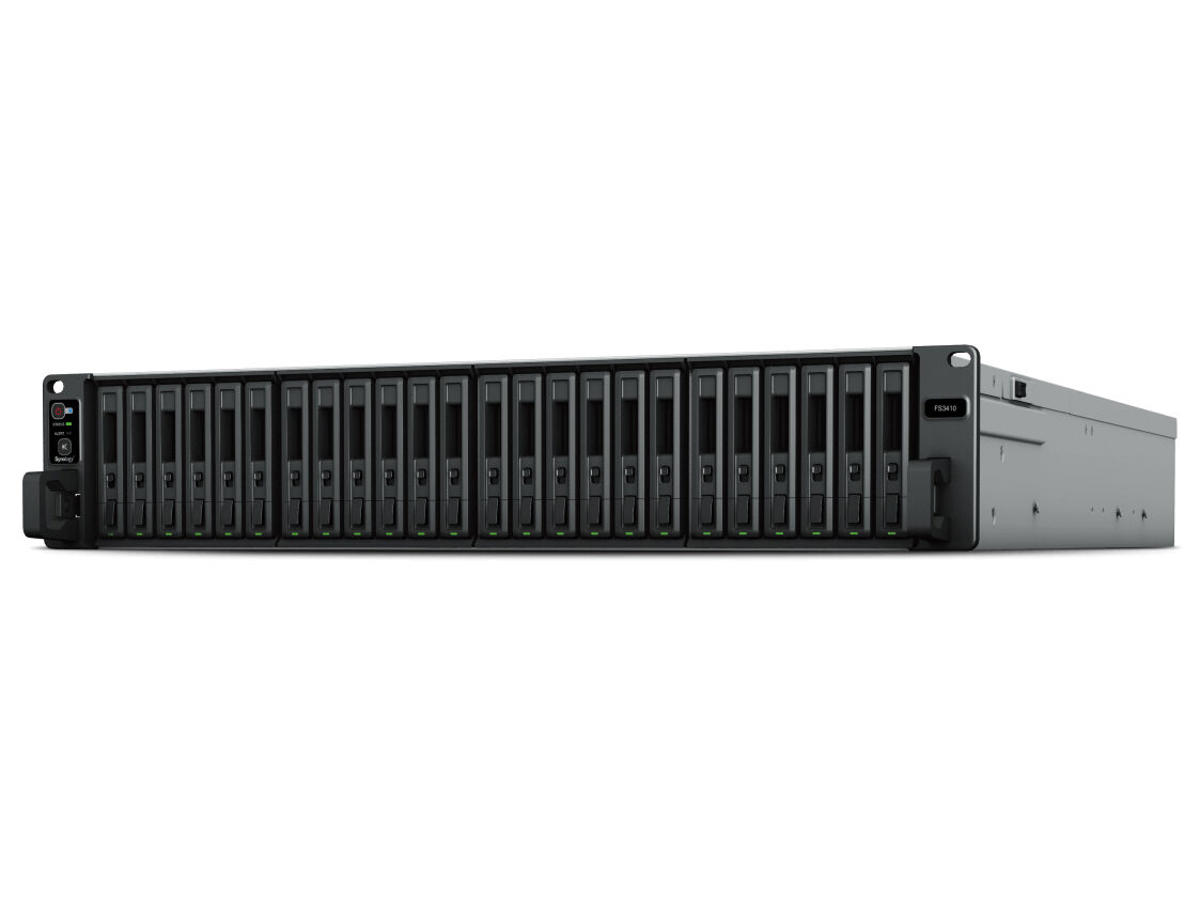

With 24 all-flash bays in a 2U rackmount enclosure, the Synology FlashStation FS3410 is the ideal solution for SMBs, enterprise offices, and data centers requiring high sustained I/O performance for applications such as video post-production, virtual machines (VMs), enterprise email servers, and online transaction processing.
Storage
Supports 24 x 2.5” SATA SSDs
Throughput
Over 356,500/129,400 iSCSI 4K random read/write IOPS1
Memory
16 GB DDR4 ECC RDIMM, up to 128 GB
Expandability
Optional 25/40GbE through PCIe 3.0 expansion
Powerful flash storage server
Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.
Built for high reliability
The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.
Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Dual power supply
Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.
Failover cluster
Pair two FS3410 units with Synology High Availability to enable automatic minute-level failover in the event of server failure or to minimize downtime when performing system updates or upgrades.
Powerful networking options
The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity
Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.
Support for 10/25/40GbE
Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage
The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.
| Lagring | |
| Datalagringsdriver installeret | Ingen |
| Total installeret opbevaringskapacitet | 0 TB |
| Antal installerede lagerdiske | 0 |
| Antal understøttede lagerdiske | 24 |
| Installeret lagerdisktype | Ingen |
| Understøttet datalagringsdrev typer | SSD |
| Kapacitet af datalagringsdrev | 0 GB |
| Understøtter RAID | Ja |
| Understøttede lagerdrev brugerflader | Serial ATA III |
| Understøttede lagerdisk størrelser | 2.5" |
| Samlet installeret systemdrevkapacitet | 1000 TB |
| RAID-niveauer | 0, 1, 5, 6, 10, F1, JBOD |
| Hot-swap drevbåse | Ja |
| Understøttede filsystemer | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Processor | |
| Processorserie | Intel® Xeon® D |
| Processorproducent | Intel |
| Processormodel | D-1541 |
| Processorfrekvens | 2,1 GHz |
| Processor boost frekvens | 2,7 GHz |
| Processorkerner | 8 |
| Processortråde | 16 |
| Processor-cache | 12 MB |
| CPU-konfiguration (maks.) | 1 |
| Konfliktfri processor | Ja |
| Hukommelse | |
| Intern hukommelse | 16 GB |
| Intern hukommelsestype | DDR4 |
| Maksimal understøttede RAM | 128 GB |
| Hukommelse form faktor | RDIMM |
| Fejlkorrigerende kode | Ja |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-datahastigheder | 10,100,1000,10000 Mbit/s |
| Ethernet LAN datahastighed understøttet (maks.) | 10000 Mbit/s |
| iSCSI-understøttelse | Ja |
| Wake-on-LAN klar | Ja |
| Understøttede netværksprotokoller | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 7 |
| USB-port | Ja |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal serielle porte | 1 |
| PCI Ekspres x8 (Gen 3.x) slots | 2 |
| Design | |
| Kabinettype | Stativ (2U) |
| Kølingstype | Aktiv |
| Produktfarve | Sort |
| Antal blæsere | 4 blæser(e) |
| LED-indikatorer | Status |
| Præstation | |
| Type | Lagringsserver |
| Enhedsklasse | Store virksomheder |
| Backup funktion | Ja |
| Backup detaljer | Cloud, USB drev |
| Flersproget support | Ja |
| Antal brugere | 16000 bruger(e) |
| Snapshot | Ja |
| Sikkerhedsalgoritmer | AES |
| Adgangskontrolliste (ACL) | Ja |
| Understøttet browser | Google Chrome, Firefox, Microsoft Edge, Safari 13 |
| System logfil | Ja |
| Filmappe | Y |
| Software | |
| Operativsystem installeret | DSM |
| Version af operativsystem | 7,1 |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Vægt & størrelser | |
| Bredde | 430,5 mm |
| Dybde | 692 mm |
| Højde | 88 mm |
| Vægt | 15 kg |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Antal strømkabler | 2 |
| Hurtig start guide | Ja |
| Processor særlige funktioner | |
| Indlejret tilgængelige muligheder | Ingen |
| Enhanced Intel SpeedStep Teknologi | Ja |
| Udfør deaktivering af bit | Ja |
| Idle status | Ja |
| Intel® 64 | Ja |
| Intel® Enhanced Halt State | Ja |
| Intel® Secure Key Technology version | 1,00 |
| Intel® Trusted Execution Teknologi | Ja |
| Intel® TSX-NI | Ja |
| Intel® TSX-NI-version | 1,00 |
| Intel® Virtualization Technology (VT-x) | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 35 °C |
| Relativ luftfugtighed ved drift (H-H) | 8 - 80% |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
| Andre funktioner | |
| Compliance-certifikater | CE, RoHS |
| Bæredygtighed | |
| Overholdelse af bæredygtighed | Ja |
