Varenummer: QVP-41C
Mere information
-

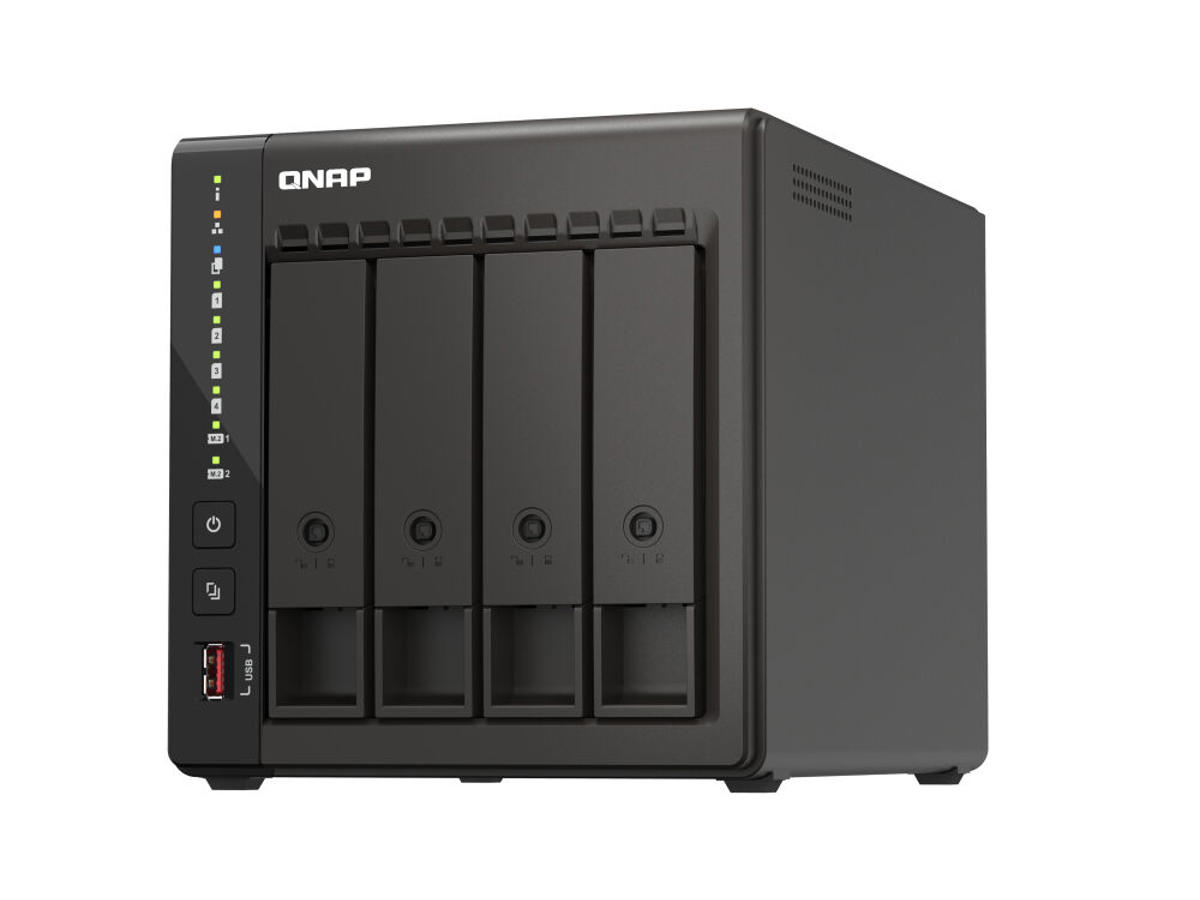

QVP-41C
4-bay high-performance NVR for SMBs and SOHO
The QVP-41C QVR Pro appliance is a tower-based network surveillance server with an Intel® Celeron® quad-core processor that supports eight free IP camera channels and up to twenty-four IP camera channels. Offering an economic and high-performance software and hardware integrated video surveillance solution, the QVP-41C fulfills requirements for secure, reliable, and centrally-managed video surveillance storage for small businesses and offices.
QVP-41C vs. other NAS-based surveillance systems. What’s the difference?
In a conventional NAS-based surveillance system, surveillance is just one of many applications available to users. As all these applications need to share NAS system resources and storage space, surveillance performance could be impacted. The QVP-41C QVR Pro Appliance overcomes this by providing dedicated storage space and reserving full system resources for surveillance, delivering the utmost performance to fulfill professional surveillance system requirements. The QVP-41C also comes with built-in camera channel licenses and essential applications to enable local installation without requiring an internet connection. Simply install the hard drives and power up the QVP-41C to start the installation process. -
Lagring Datalagringsdriver installeret Ingen Total installeret opbevaringskapacitet 0 TB Antal installerede lagerdiske 0 Antal understøttede lagerdiske 4 Installeret lagerdisktype Ingen Understøttet datalagringsdrev typer HDD & SSD Understøtter RAID Ja Understøttede lagerdrev brugerflader M.2, Serial ATA II, Serial ATA III Understøttede lagerdisk størrelser 2.5,3.5" Antal M.2 (M & B) porte 2 RAID-niveauer 1, 5, 6, 10, JBOD Online RAID-migrering Ja Online RAID-udvidelse Ja Hot-swap drevbåse Ja Understøttede filsystemer ext4 Processor Processorserie Intel® Celeron® Processorproducent Intel Processormodel J6412 Processorfrekvens 2,6 GHz Processorkerner 4 Processortråde 4 Hukommelse Intern hukommelse 8 GB Intern hukommelsestype DDR4 Maksimal understøttede RAM 16 GB Hukommelsesstik 2 Hukommelse form faktor SO-DIMM Netværk Ethernet LAN Ja Ethernet LAN-datahastigheder 1000 Mbit/s DHCP-server Ja Wake-on-LAN klar Ja Understøttede netværksprotokoller HTTP, HTTPS, TCP/IP, UDP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and SMTP Porte & Grænseflader Ethernet LAN-porte (RJ-45) 2 USB-port Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 1 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 2 Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 2 Antal HDMI-porte 1 HDMI-version 2.0 Lyd in/out Ja PCU Ekspres x4 (Gen 3.x) slots 1 Design Kabinettype Tower Kølingstype Aktiv Produktfarve Sort Antal blæsere 3 blæser(e) Ventilator diameter 12 cm Blæser 2, diameter 6 cm LED-indikatorer HDD, LAN, Status, USB Indbygget skærm Ja Skærmtype LCD Indbyggede højttaler(e) Ja Antal indbyggede højttalere 1 Præstation Type NAS Enhedsklasse Små & mellemstore virksomheder Backup funktion Ja Backup detaljer Cloud Lydalarm Ja Støjniveau 16,9 dB Webbaseret administration Ja Sikkerhedsalgoritmer HTTPS, SSH Knap til nulstilling Ja Tænd-/slukkontakt Ja System logfil Ja Varm reservedel Ja Understøtter S.M.A.R.T. Ja USB kopifunktion Ja Strømstyring Placering af strømforsyning Indbygget Strømforsyningens kapacitet (PCU) 90 W Antal strømforsyninger 1 Strømforbrug (typisk) 35,79 W Strømforbrug (dvale) 28,974 W Vekselstrømsindgangsspænding 100-240 V Vægt & størrelser Bredde 160,2 mm Dybde 220,5 mm Højde 168,5 mm Vægt 2,21 kg Pakkebredde 250 mm Pakkedybde 303 mm Pakkehøjde 317 mm Pakkevægt 3,61 kg Emballage indhold Kabler inkluderet Vekselstrøm, LAN (RJ-45) Antal strømkabler 1 Antal skruer 28 Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Andre funktioner Garantiperiode 3 År
