Varenummer: DS2422+/72T/6X12T
Mere information
-
Built for high-performance mass storage

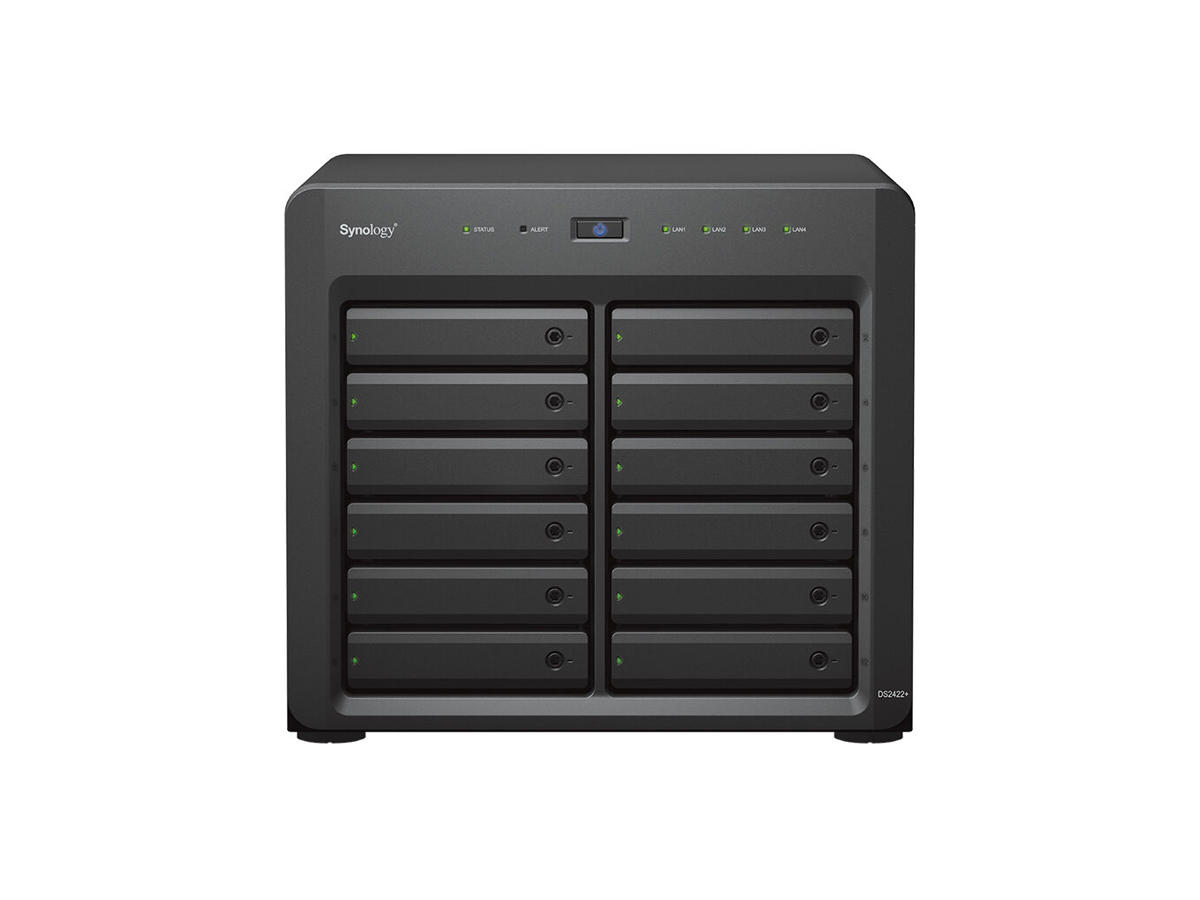

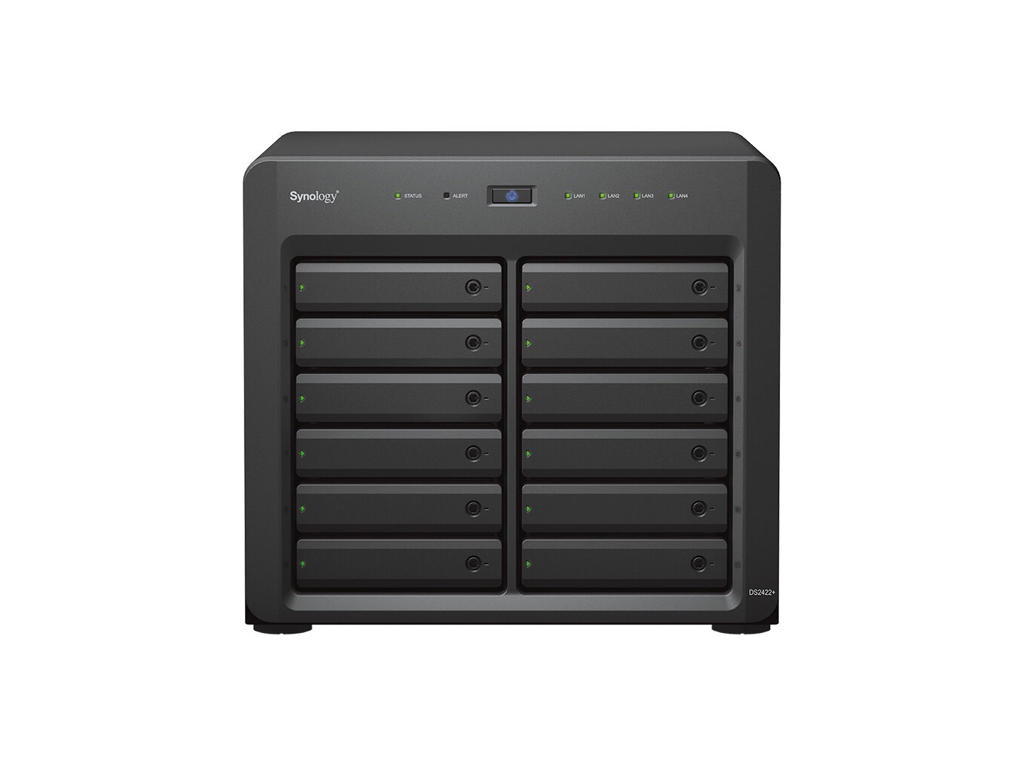

The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.
Faster performance
Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience. See the improvements that help make your business productive.
Rise to the challenge
Prepare your DS2422+ for heavy workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.
Maximize bandwidth
Handle heavier input/output and serve more users with dual-port Synology 10 or 25GbE network interface cards.
Boost storage performance
Accelerate HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance with SSD cache.
Do both with one card
Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.
Active Backup Suite
Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware® and Hyper-V® virtual machines with the Active Backup Suite.
Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.
Implement a 3-2-1 backup strategy
Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.
Hyper Backup
Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication,4 and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables flexible point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds.
Ready for remote work
Empower your workforce to collaborate, share files, and communicate from anywhere.
Synology Drive
Access and collaborate on team documents via web portal, desktop clients, and mobile apps with powerful cross-site sync and file management.
Synology Office
Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.
Synology Chat
Instantly message colleagues and organize conversations to achieve clear and cohesive communication.
Certified virtual machine storage
DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.
Synology Storage Console for VMware® or Windows platforms lets you manage storage directly from your hypervisor. VMware® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.
Powered by Synology DiskStation Manager
Data Protection
Keep your business safe from data loss and minimize service downtime.
User Management
Manage user accounts and devices throughout your business with powerful directory services.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
File Management
Manage, sync, and share files from multiple devices through a centralized platform.
System Administration
Manage the health of your deployments and centrally administer updates with ease.
Surveillance
Protect your home or business with intelligent monitoring and video management tools. -
Lagring Datalagringsdriver installeret Ja Total installeret opbevaringskapacitet 72 TB Antal installerede lagerdiske 6 Antal understøttede lagerdiske 12 Installeret lagerdisktype HDD Understøttet datalagringsdrev typer HDD & SSD Kapacitet af datalagringsdrev 12 TB Grænseflade til lagerdisk Serial ATA II, Serial ATA III Understøtter RAID Ja Understøttede lagerdrev brugerflader Serial ATA II, Serial ATA III Understøttede lagerdisk størrelser 2.5,3.5" RAID-niveauer 0, 1, 5, 6, 10, JBOD Online RAID-migrering Ja Online RAID-udvidelse Ja Hot-swap drevbåse Ja Understøttede filsystemer BTRFS, Fedt, HFS+, NTFS, exFAT, ext3, ext4 Processor Processorserie Ryzen Embedded Processorproducent AMD Processormodel V1500B Processorfrekvens 2,2 GHz Processorgeneration AMD Ryzen Embedded V1000 Series Processorkerner 4 Processortråde 8 L2-cache 2 MB Antal understøttede processorer 1 Hukommelse Intern hukommelse 4 GB Intern hukommelsestype DDR4 Hukommelsesur hastighed 2666 MHz Maksimal understøttede RAM 32 GB Hukommelsesstik 2 Hukommelse form faktor SO-DIMM Fejlkorrigerende kode Ja Netværk Ethernet LAN Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s iSCSI-understøttelse Ja Wake-on-LAN klar Ja Understøttede netværksprotokoller SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV Porte & Grænseflader Ethernet LAN-porte (RJ-45) 4 USB-port Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 2 Eksterne mini-SAS-porte 1 Samtidige forbindelser 1000 PCI Ekspres x8 (Gen 3.x) slots 1 Design Kabinettype Desktop Kølingstype Aktiv Produktfarve Sort Antal blæsere 2 blæser(e) Ventilator diameter 12 cm Drevlåsning Ja LED-indikatorer Ja Præstation Type NAS Enhedsklasse Hjem & hjemmekontor Backup funktion Ja Backup detaljer Cloud, iSCSI LUN Flersproget support Ja Antal brugere 2048 bruger(e) Tredjepart support Ja Snapshot Ja Sikkerhedsalgoritmer HTTPS, SSL/TLS Adgangskontrolliste (ACL) Ja Knap til nulstilling Ja Tænd-/slukkontakt Ja Indbygget iTunes server Ja Indbygget FTP-server Ja Understøttet browser Google Chrome, Firefox, Microsoft Edge, Safari System logfil Ja Varm reservedel Ja Filmappe SMB/AFP/NFS/FTP/WebDAV Software Operativsystem installeret DiskStation Manager Understøttede Windows-operativsystemer Ja Understøttede Linux-operativsystemer Ja Understøttede Mac-operativsystemer Ja Strømstyring Placering af strømforsyning Indbygget Strømforsyningens kapacitet (PCU) 550 W Antal strømforsyninger 1 Strømforbrug (typisk) 73,11 W Strømforbrug (HDD standby) 32,12 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Vægt & størrelser Bredde 300 mm Dybde 340 mm Højde 270 mm Emballage indhold Kabler inkluderet Vekselstrøm, LAN (RJ-45) Antal strømkabler 1 Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Driftshøjde 0 - 5000 m Andre funktioner Compliance-certifikater CE, RoHS Bæredygtighed Overholdelse af bæredygtighed Ja
