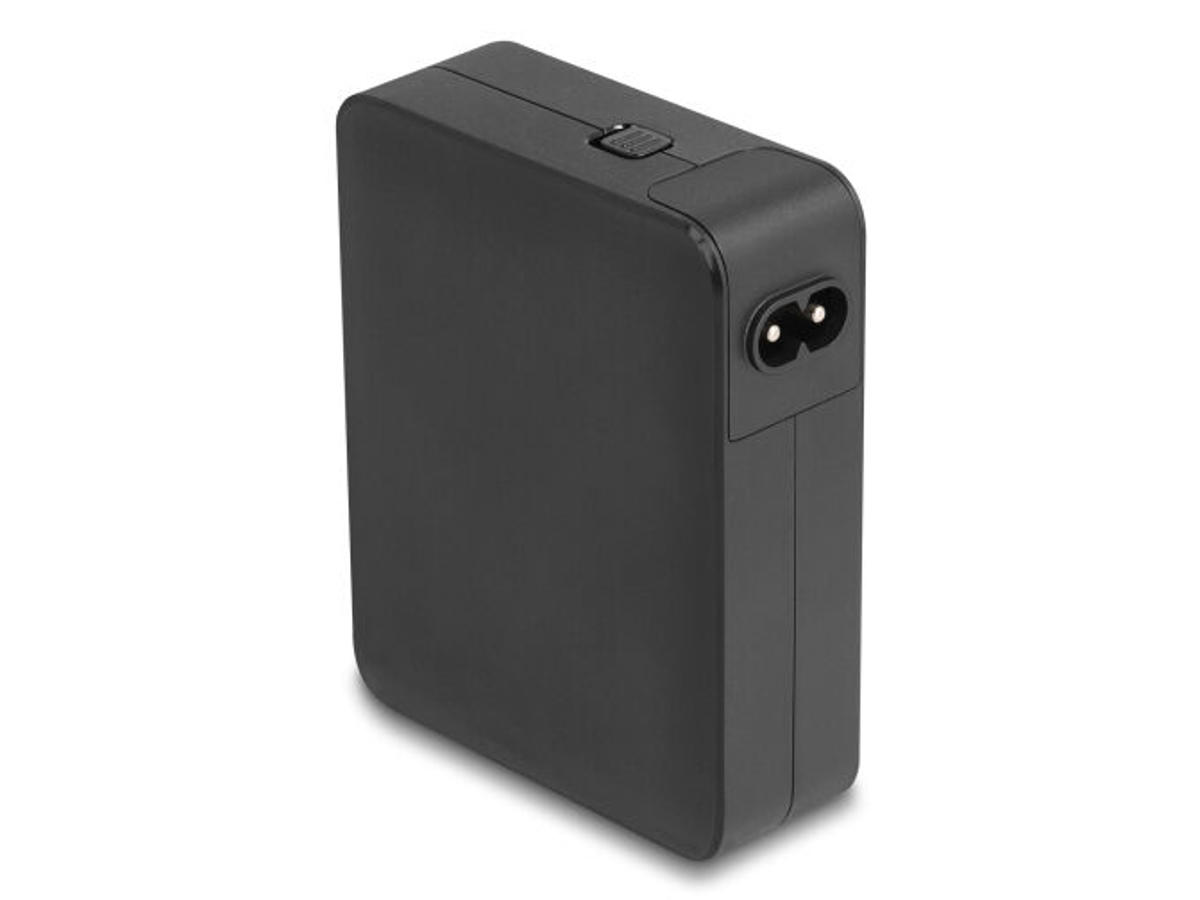

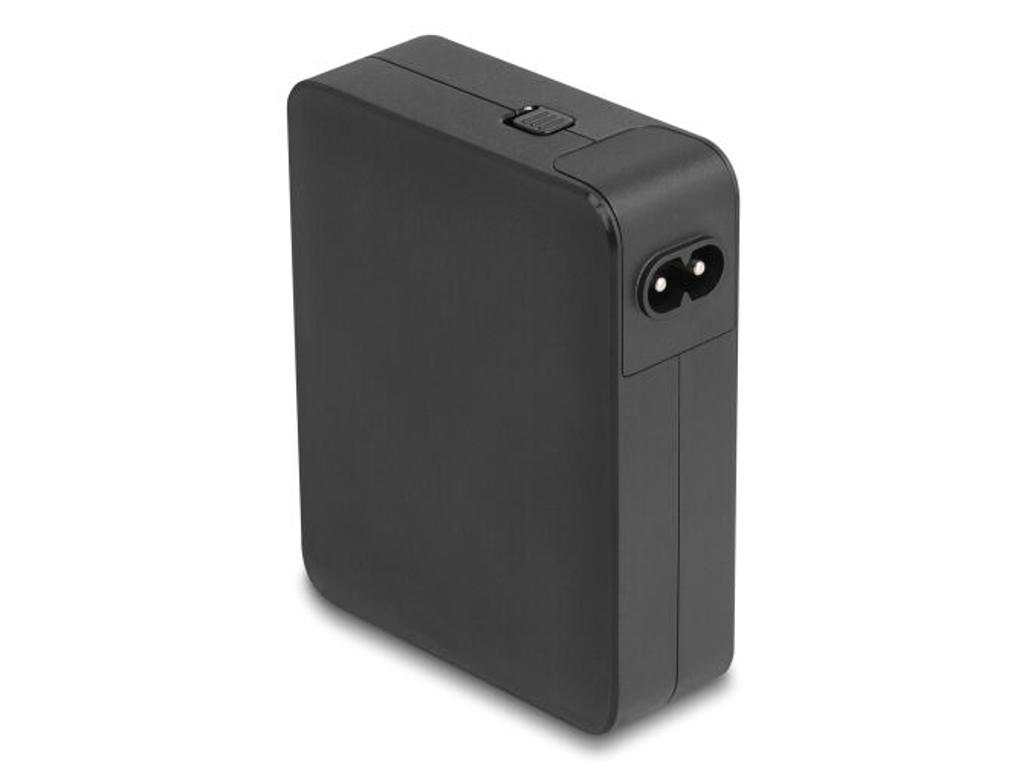

This USB charger by Delock can be used to charge four USB devices. Three ports are equipped with a USB Type-C™ Power Delivery (PD 3.1), thereby supported devices can be charged with up to 145 watt. In addition, one USB Type-A port with fast charging technology up to 18 watt is available for smartphones.
USB-PD Version 3.1
The USB PD 3.1 specification defines the voltage levels 28, 36 and 48 volts with support for Extended Power Range (EPR) with 5 amps each. Due to a calculated maximum power of 240 W (48 V / 5 A), other device classes can be supplied with power in addition to powerful laptops and desktop PCs. The Delock charger features an output power of 28 V and 5 A.
GaN technology
The use of GaN (gallium nitride) transistors increases efficiency compared to conventional silicon technology. Even with very compact dimensions a high output power can be achieved.
Ideal travel companion
This charger by Delock is also the ideal companion when travelling. With the three included adapters, the charger can be used in many countries around the world.
An adapter with a small appliance plug and a suitable connection cable are also included, allowing the power supply unit to be placed anywhere within reach.
| Præstation | |
| Oplader type | Indendørs |
| Oplader, kompabilitet | Laptop, Smartphone, Tablet |
| Strømkilde type | Vekselstrøm |
| Antal enheder der er tilsluttet samtidigt (maks.) | 4 |
| Antal USB type-C-porte | 3 |
| Hurtig opladning | Ja |
| USB strømforsyning | Ja |
| USB strømforsyning revision | 3.1 |
| USB strømforsyning op til | 145 W |
| Strømbeskyttelsesfunktioner | Overstrøm, Overophedning, Overbelastning, Kortslutning |
| Design | |
| Produktfarve | Sort |
| Kabellængde | 1,2 m |
| Galliumnitrid (GaN) transistorer | Ja |
| Strømstyring | |
| Indgangsspænding | 100 - 240 V |
| Indgangsfrekvens | 50 - 60 Hz |
| Indgangsstrøm | 2 A |
| Maksimal ydeevne | 145 W |
| Port 3 udgangseffekt | 45 W |
| Port 4 udgangseffekt | 18 W |
| Gennemsnitlig aktiv effektivitet | 86,42% |
| Effektivitet ved lav belastning (10 %) | Ja |
| Effektivitet (@10 %) | 75,38% |
| Vægt & størrelser | |
| Bredde | 76 mm |
| Dybde | 97 mm |
| Højde | 31 mm |
| Emballeringsdata | |
| Pakketype | Hængende boks |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Kabler inkluderet | Vekselstrøm, USB Type-C til USB Type-C |
| Brugervejledning | Ja |
| Inkluderede strømstik typer | CN, EU, JP, UK, US |
| Logistik data | |
| Oprindelsesland | Kina |
