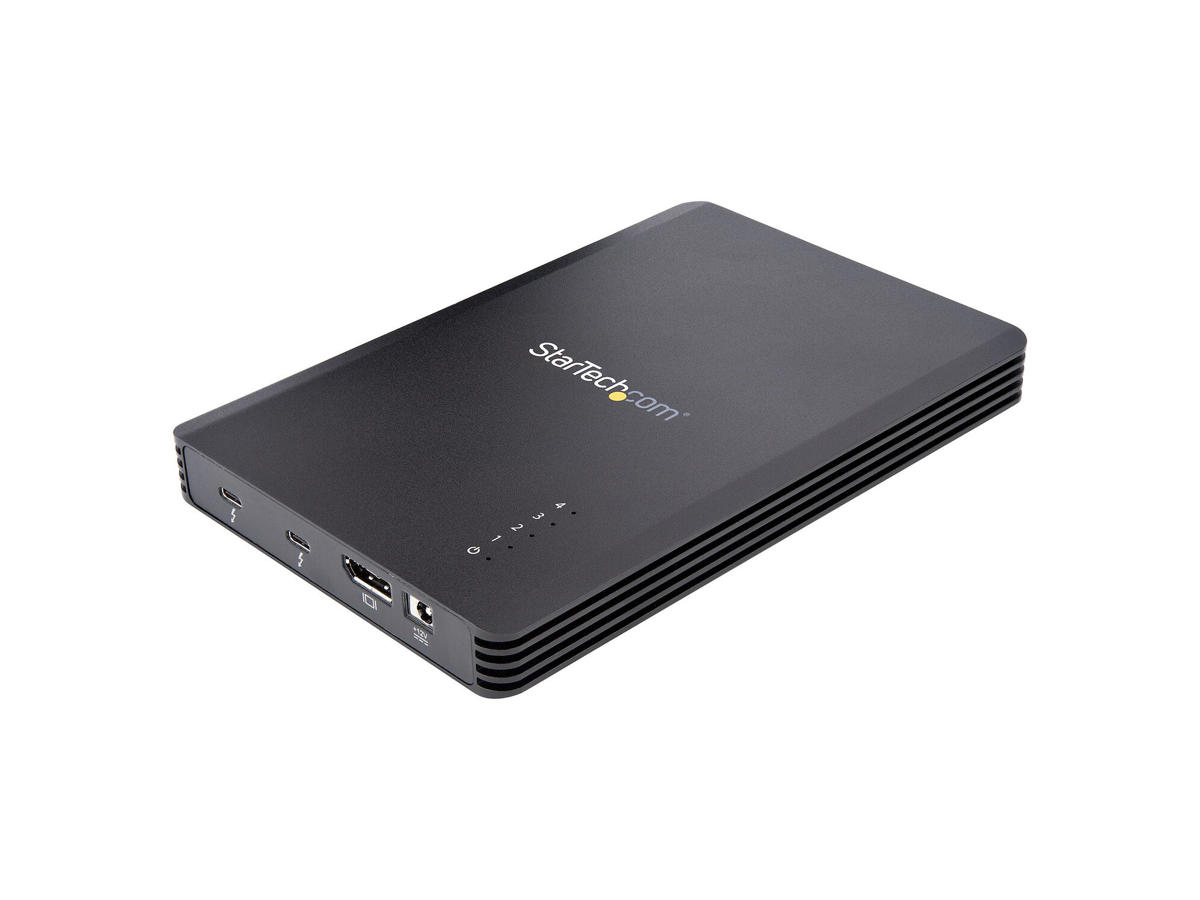

4-Drive PCIe M.2 Enclosure | Thunderbolt™ 3 | 72W EPS Power Supply & 2.3 ft (70 cm) Thunderbolt 3 Cable Included
This Thunderbolt™ 3 to 4x M.2 PCIe SSD enclosure enables you to turn four M-Key PCI-Express based M.2 NVMe or AHCI solid state drives (SSDs) into a high-performance external storage solution.
The SSD enclosure is self-powered with an included 72W EPS power supply that powers the enclosure, the connected drives, and provides up to 15W of power to any downstream Thunderbolt 3 devices. A 2.3 ft. (70 cm) Thunderbolt 3 Certified host cable is also included, to connect the enclosure to your computer.
High Performance M.2 Storage via 40Gbps Thunderbolt 3
The enclosure is compatible with 80mm M.2 PCIe based (M-Key) single/double-sided SSDs. Create an external storage solution that utilizes the high-performance bandwidth available to your Thunderbolt 3 port, providing combined data transfer speeds of up to 40Gbps for up to four drives. The vented metal enclosure features thermal pads and a cooling fan to ensure your SSDs are operating at optimal temperatures.
Dedicated 8Gbps Throughput for Each Individual Drive
A single 8 Gbps PCIe lane is dedicated to each connected drive. This ensures consistent read/write performance across the entire enclosure, regardless of individual drive activity. The enclosure also supports software RAID with storage management systems like Storage Spaces (Microsoft), RAID Assistant (macOS), or mdraid/mdadm (Linux). The support for software RAID, combined with exceptional drive performance, makes this the ideal enclosure for creative professionals working with large files such as high-resolution graphics, video, and CAD files.
Thunderbolt Certified
This enclosure is Thunderbolt Certified to ensure an optimal user experience and compatibility when connected to a Thunderbolt 3 host device, such as a MacBook Pro 16, 13, Air, Lenovo ThinkPad X1 Carbon / T Series, Dell XPS / Latitude / Precision or HP EliteBook. The external drive enclosure is also forward compatible with Thunderbolt 4 devices (at Thunderbolt 3 performance).
Additional Ports for Workspace Flexibility
The enclosure features a DisplayPort output port, enabling you to connect a DisplayPort monitor to your computer through the Thunderbolt 3 enclosure, with resolutions up to 4K 60Hz. The enclosure also features a downstream Thunderbolt 3 port for daisy chaining an additional TB3 device or connect an additional TB3 compatible display (up to 5K 60Hz).
M2E4BTB3 is backed by a 2-year StarTech.com warranty, with free lifetime North American based multilingual technical support.
Notes:
• This device is not compatible with SATA based (B-Keyed or M+B Keyed) M.2 solid state drives.
• This device does not support Thunderbolt 2 or Thunderbolt 1 host devices using interface adapters.
• This device only supports 80mm M.2 SSDs.
• Connected downstream devices share bandwidth with connected SSDs and may reduce overall data transfer performance when connected.
• Apple Mac computers with M1 processors can only support one external display connected through the SSD enclosure. However, Apple Mac computers with Intel or M1 Max / Pro processors can support dual external displays connected through the SSD enclosure.
The StarTech.com Advantage
Lagring | |
Størrelse på lagerdisk | M.2 |
Understøttede lagerdrev brugerflader | M.2 |
Antal understøttede lagerdiske | 4 |
Understøttede lagerdisk længder | 80 mm |
Porte & Grænseflader | |
USB-tilslutning | Ja |
USB-stik type | USB Type-C |
USB-stik køn | Hunstik |
Antal USB-porte | 2 |
DC-in-stik | Ja |
Design | |
Produkttype | SSD kabinet |
Produktfarve | Sort |
LED-indikatorer | Aktivitet, Strøm |
Antal blæsere | 1 blæser(e) |
Ventilator diameter | 4 cm |
Præstation | |
Dataoverførselshastighed | 40 Gbit/sek. |
Chipsæt | Intel - JHL6540, TI - TPS65983B |
Gennemsnitstid mellem fejl (MTBF) | 50000 t |
Støjniveau | 34,5 dB |
Plug and play | Ja |
Strømstyring | |
Kompatible strømplug typer | AU, EU, JP, UK, US |
Indgangsspænding for vekselstrømsadapter | 100 - 240 V |
Indgangsstrøm til vekselstrømsadapter | 2 A |
Udgangsspænding for vekselstrømsadapter | 12 V |
Vekselstrømsadapterens udgangsstrøm | 6 A |
Driftsbetingelser | |
Driftstemperatur (T-T) | 5 - 45 °C |
Opbevaringstemperatur (T-T) | -20 - 50 °C |
Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
Vægt & størrelser | |
Bredde | 160 mm |
Dybde | 120 mm |
Højde | 20 mm |
Vægt | 610 g |
Pakkebredde | 234 mm |
Pakkedybde | 157 mm |
Pakkehøjde | 132 mm |
Pakkevægt | 620 g |
Emballage indhold | |
AC-adapter inkluderet | Ja |
Kabler inkluderet | Vekselstrøm, Thunderbolt |
Brugervejledning | Ja |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 540 mm |
Hovedkassens længde (udvendigt) | 260 mm |
Hovedkassen højde (udvendigt) | 380 mm |
Produkter pr. hovedkasse (udvendigt) | 8 stk |
