Mere information
-

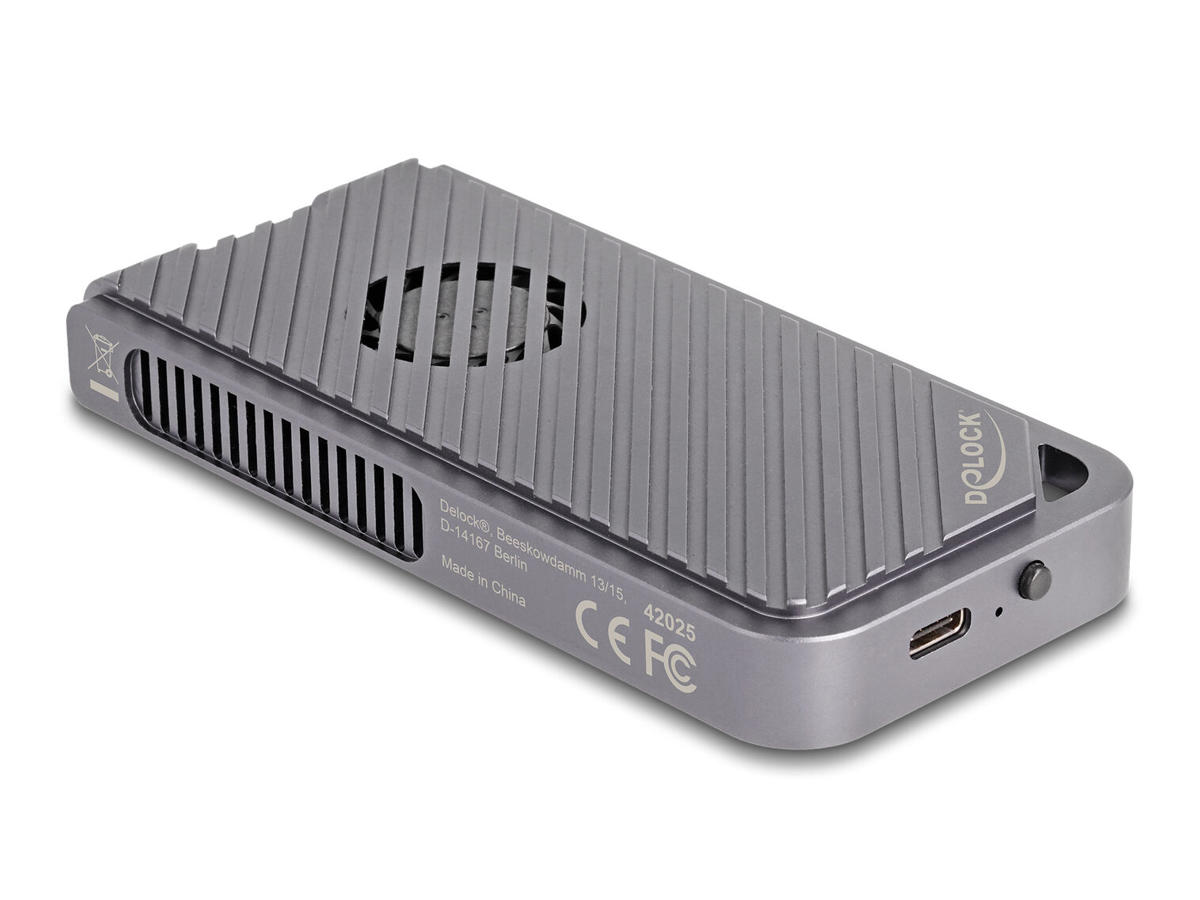

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280 format, it can be connected via Thunderbolt™ 3, Thunderbolt™ 4 or USB-C™ to the PC or laptop.
USB 40 Gbps
Due to USB 40 Gbps compatibility, the Delock enclosure can be connected to Thunderbolt™ 3 and 4 ports, as well as to all USB Type-C™ ports. The maximum data transfer rate depends on the host device.
LED illumination
In addition to the Power LED there is an LED light bar on the side. This glows in pulsating blue light when the enclosure is connected to a USB interface and in colourful illumination when connected to a Thunderbolt™ interface.
SSD installation without tools
The special feature of this enclosure is that no tools are required to install the M.2 SSD.
Active cooling by fan
A silent fan in the bottom area of the enclosure ensures sufficient cooling of the used SSDs, so that the operation also works without problems with the enclosure closed. The fan can be switched on and off.
Note
Due to the USB to NVMe controller, the data transfer rate on a USB Gen 2x2 port is only 10 Gbps. -
Lagring Størrelse på lagerdisk M.2 Understøttede lagerdrev brugerflader M.2, PCI Express Antal understøttede lagerdiske 1 Understøttede lagerdisk højder 1.5 mm Installeret lagerdisktype SSD NVMe Ja Hot-swap Ja Porte & Grænseflader USB-tilslutning Ja USB version USB4 Gen 4 USB-stik type USB Type-C USB-stik køn Hunstik Antal USB-porte 1 Integreret USB-kabel Ja Design Produkttype SSD kabinet Produktfarve Grå Materiale Aluminium, Metal LED-indikatorer Ja Antal blæsere 1 blæser(e) Ventilator diameter 3 cm Præstation Dataoverførselshastighed 40 Gbit/sek. Chipsæt Intel JHL7440, Realtek RTL9210B Plug and play Ja Strømstyring Strømkilde type USB Systemkrav Understøttede mobile operativsystemer Android 10, Android 11.0, Android 12.0, iOS Understøttede Windows-operativsystemer Windows 10, Windows 11, Windows 8.1 Understøttede Linux-operativsystemer Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15 Understøttede Mac-operativsystemer Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Vægt & størrelser Bredde 56 mm Dybde 117 mm Højde 16 mm Kabellængde 0,5 m Emballage indhold Pakketype Kasse Kabler inkluderet Thunderbolt, USB Type-C til USB Type-C Skruer inkluderet Ja Skruetrækker inkluderet Ja Brugervejledning Ja Tekniske detaljer Compliance-certifikater CE
