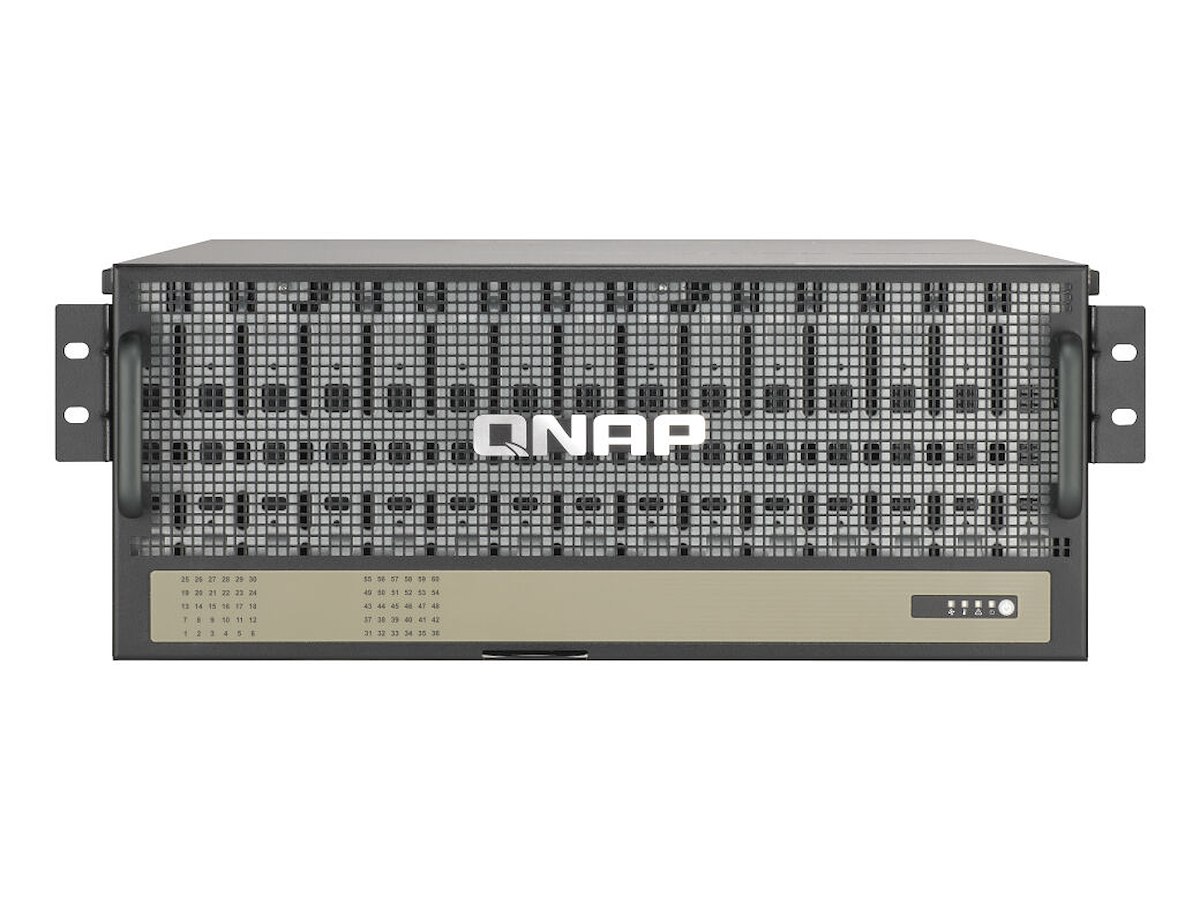

TL-R6020Sep-RP
4U 60-Bay SAS/SATA storage expansion solution supporting 1PB effective capacity in a single chassis
The TL-R6020Sep-RP SAS/SATA storage expansion enclosure in a 60-bay, 4U high-density chassis is the ideal petabyte-level storage expansion solution for QNAP NAS. It provides four high-speed Mini-SAS HD (SFF-8644) ports, supporting SAS 12Gbps transmission interfaces and Broadcom® SAS DataBolt™ bandwidth optimization technology. Its Mini-SAS dual-path redundancy design ensures system operation even if one expansion unit cable fails. Supporting daisy-chaining of up to four units, it's ideal for cold storage applications such as surveillance video archiving, big data storage, and multimedia image storage.
4U space for sixty hard drives
The TL-R6020Sep-RP provides sixty 3.5-inch SAS/SATA HDD slots, delivering petabyte-level massive storage in a single chassis. QNAP NAS allows flexible management of connected TL-R6020Sep-RP storage space through the Storage & Snapshot Manager app. Paired with QNAP-certified hard drives, the TL-R6020Sep-RP provides a highly stable and reliable storage solution.
Diverse JBOD connection methods improve overall performance
The TL-R6020Sep-RP is not limited to daisy chaining. By installing more SAS storage expansion cards in the NAS, you can reduce the number of single-cluster TL-R6020Sep-RP drives and improve overall performance. TL-R6020Sep-RP can also expand an existing QNAP TL SAS JBOD by adding two more, increasing the existing storage capacity to petabyte-level.
Monitor each hard drive from the front panel
The TL-R6020Sep-RP features sixty hard drive status indicators (blue and red) on the front panel, eliminating the need to pull the system from the rack and open the top cover to access the drive trays. A pull-out label also serves as a rack label, making it easy to identify and manage individual TL-R6020Sep-RP. -
Lagring Størrelse på lagerdisk 3.5" Understøttede lagerdrev brugerflader SAS-3, Serial ATA III Antal understøttede lagerdiske 60 RAID-niveauer JBOD Porte & Grænseflader Grænseflade 4 x SFF-8644 Design Produkttype HDD kabinet Produktfarve Sort, Grå LED-indikatorer Ja Tænd-/slukkontakt Ja Stativ-montering Ja Rackkapacitet 4U Antal blæsere 6 blæser(e) Ventilator diameter 12 cm Præstation Dataoverførselshastighed 12 Gbit/sek. Strømstyring Strømkilde type Vekselstrøm Indgangsspænding for vekselstrømsadapter 100 - 240 V Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 434 mm Dybde 750 mm Højde 176 mm Vægt 25,2 kg Pakkebredde 595 mm Pakkedybde 593 mm Pakkehøjde 305 mm Pakkevægt 58,2 kg Emballage indhold Kabler inkluderet Vekselstrøm
