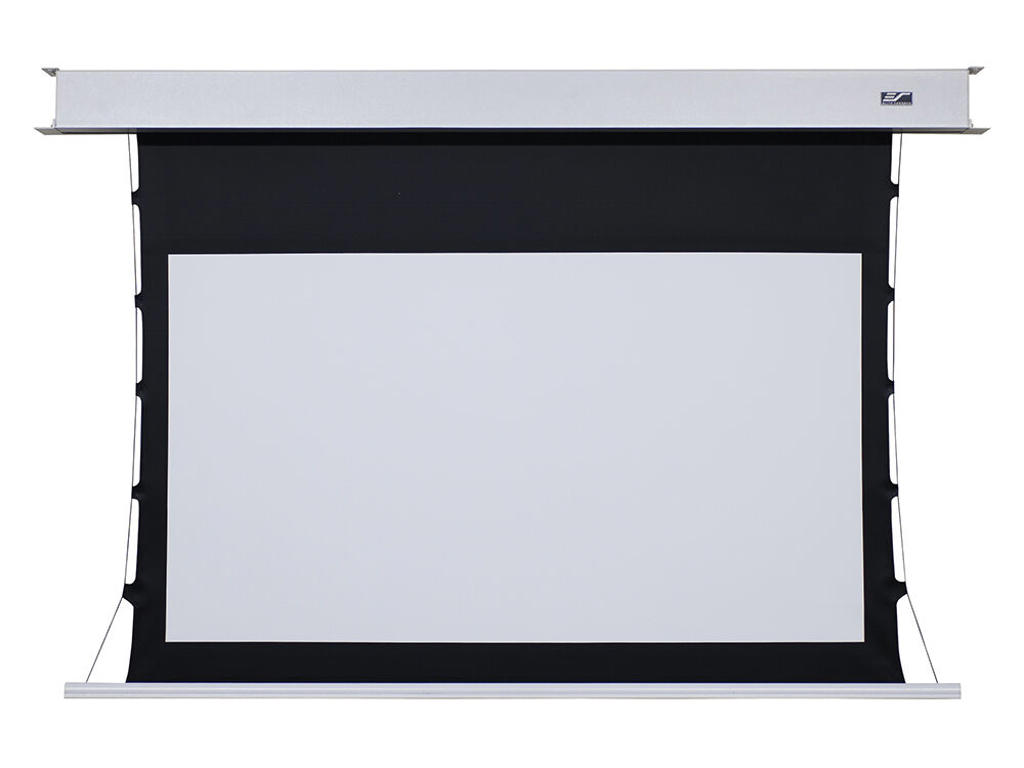

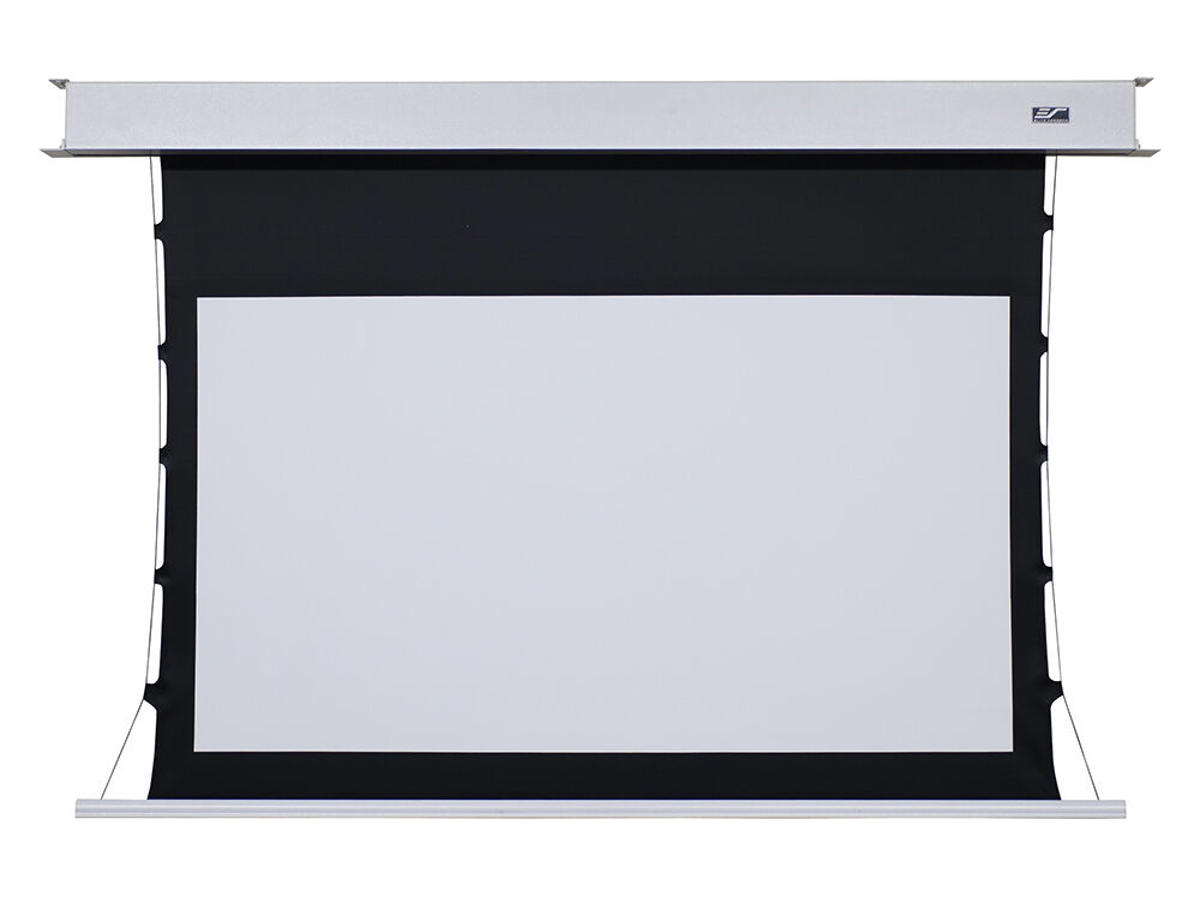

The Evanesce Tab-Tension B is our newest in-ceiling recessed projection screen. It is designed for concealed installations. It utilizes our CineWhite front projection material. The tab-tensioned system maintains flatness uniformity throughout the entire surface with no tab impressions. Images pop and videos maintain true colors.
Screen Material:
- CineWhite tensioned front projection material
- 160º wide-viewing angle
- Gain: 1.1
- 4K Ultra HD Ready
- Tab-tension cords provide uniform flatness on entire projection surface
- Black-backing
Design and Installation:
- Aluminum housing with white finish is slim yet strong and moisture resistant
- Concealed in-ceiling front projection screen for multi-use rooms
- Integrated ceiling projection screen ships fully assembled, ready to install
- Below and above ceiling access installation design
- Installation kit included
Control System:
- Internal Radio Frequency/Infrared receivers with IR, RF remotes included
- Low voltage 3-way wall switch and in-wall RJ45 module included
- Standard 5-12 volt trigger to synchronize screen operation with the projector's power cycle
- Optional in-wall up/down switch (part# ZIW-W)
- Optional 5-12 volt wireless trigger
- RJ45 port allows 3rd party control systems integration
| Præstation | |
| Diagonal | 2,54 m (100"), 254 cm |
| Naturligt aspektforhold | 16:9 |
| Synlig skærmhøjde (H) | 124,5 cm |
| Synlig skærmbredde (W) | 2,21 m |
| Drevtype | Motoriseret |
| Fjernbetjent | Ja |
| Skærmforstærkning | 1,1 |
| Betragtningsvinkel | 160° |
| Design | |
| Monteringstype | Loft |
| Rammetype | Sammenfoldningsramme |
| Sort fald | 30,5 cm |
| Produktfarve | Hvid |
| Farve på etui | Hvid |
| Vægt & størrelser | |
| Bredde | 2590,8 mm |
| Dybde | 180 mm |
| Højde | 2669,5 mm |
| Vægt | 18,5 kg |
| Logistik data | |
| Harmoniseret systemkode (HS) | 90106000 |
