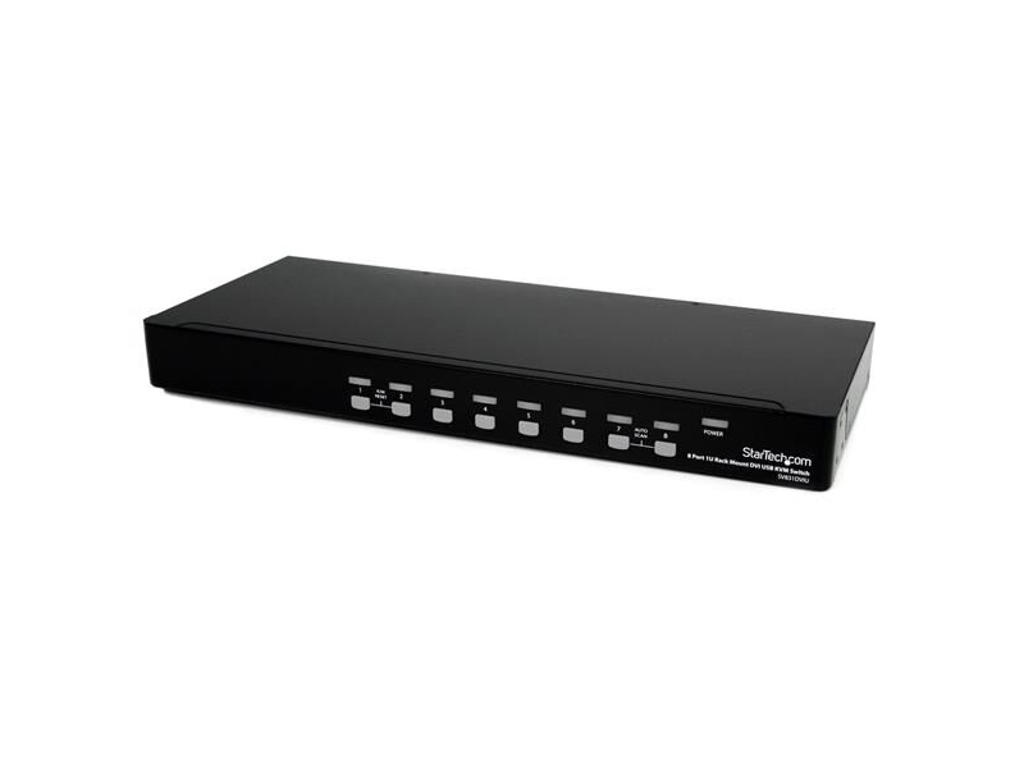

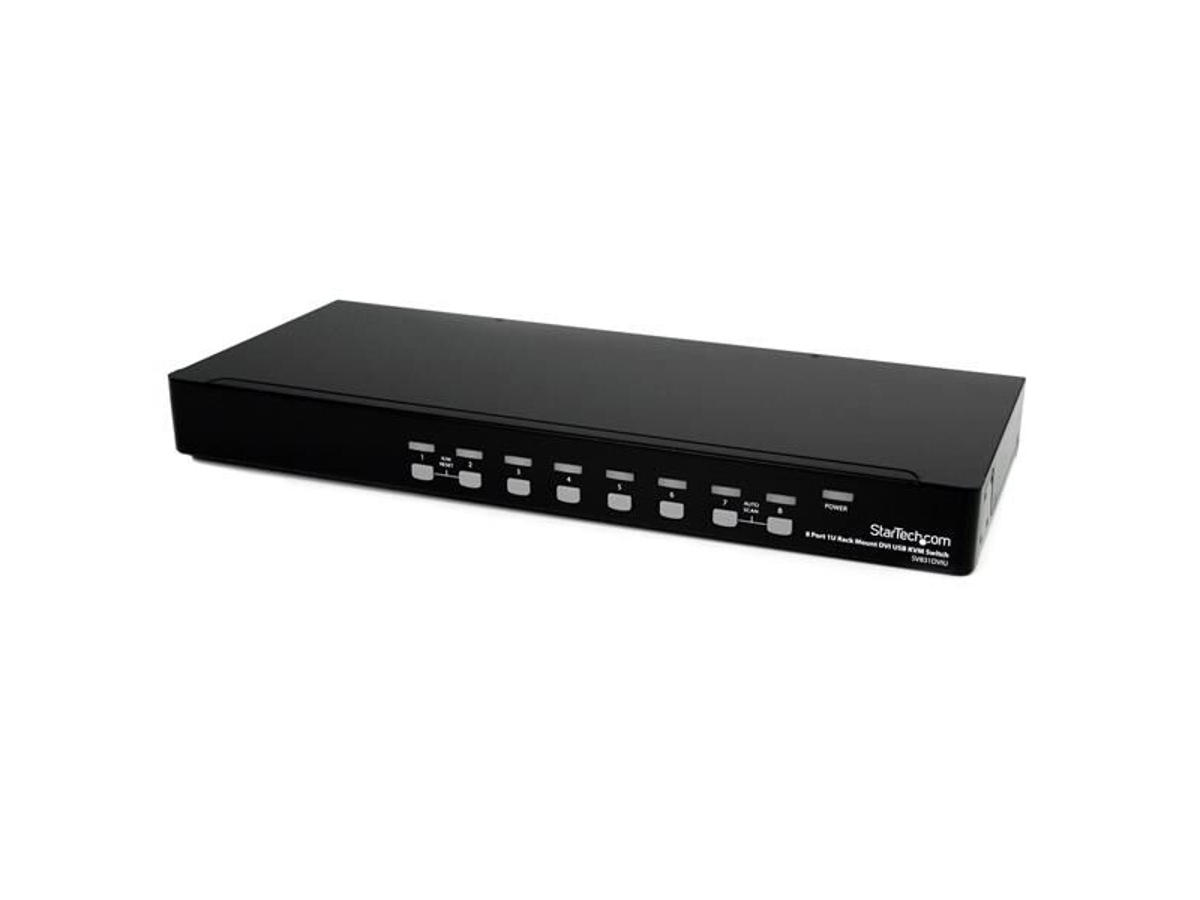

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
The StarTech.com Advantage
- High-resolution 1920x1200 DVI connections support control of DVI systems or HDMI systems (with adapter)
- Supports wireless and combo style mouse and keyboard sets for added flexibility
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
| Porte & Grænseflader | |
| Antal kontrollerede computere | 8 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | DVI-I |
| Antal USB 2.0-porte | 10 |
| Lydforbindelse | Ingen |
| Netværk | |
| Ethernet LAN | Ingen |
| Præstation | |
| Maksimal opløsning | 1920 x 1200 pixel |
| Maksimal analog opløsning | 1920 x 1200 pixel |
| Daisy kæde | Ingen |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Rackkapacitet | 1U |
| Husmateriale | Stål |
| LED-indikatorer | Ja |
| Genvejstaster | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 45254 t |
| Certificering | CE, FCC |
| Strømstyring | |
| Indgangsspænding | 100-240 V |
| Indgangsstrøm | 1.8 A |
| Udgangsspænding | 12 V |
| Udgangsstrøm | 4 A |
| Ekstern strømadapter | Ja |
| Strømstiktype | Type M |
| Kompatible strømplug typer | AU, EU, UK, US |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 438 mm |
| Dybde | 180 mm |
| Højde | 44 mm |
| Vægt | 3,5 kg |
| Emballeringsdata | |
| Pakkebredde | 265 mm |
| Pakkedybde | 595 mm |
| Pakkehøjde | 90 mm |
| Pakkevægt | 3,77 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
| Rack monteringskit | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176200 |
| Andre funktioner | |
| IP kontrol | Ja |
