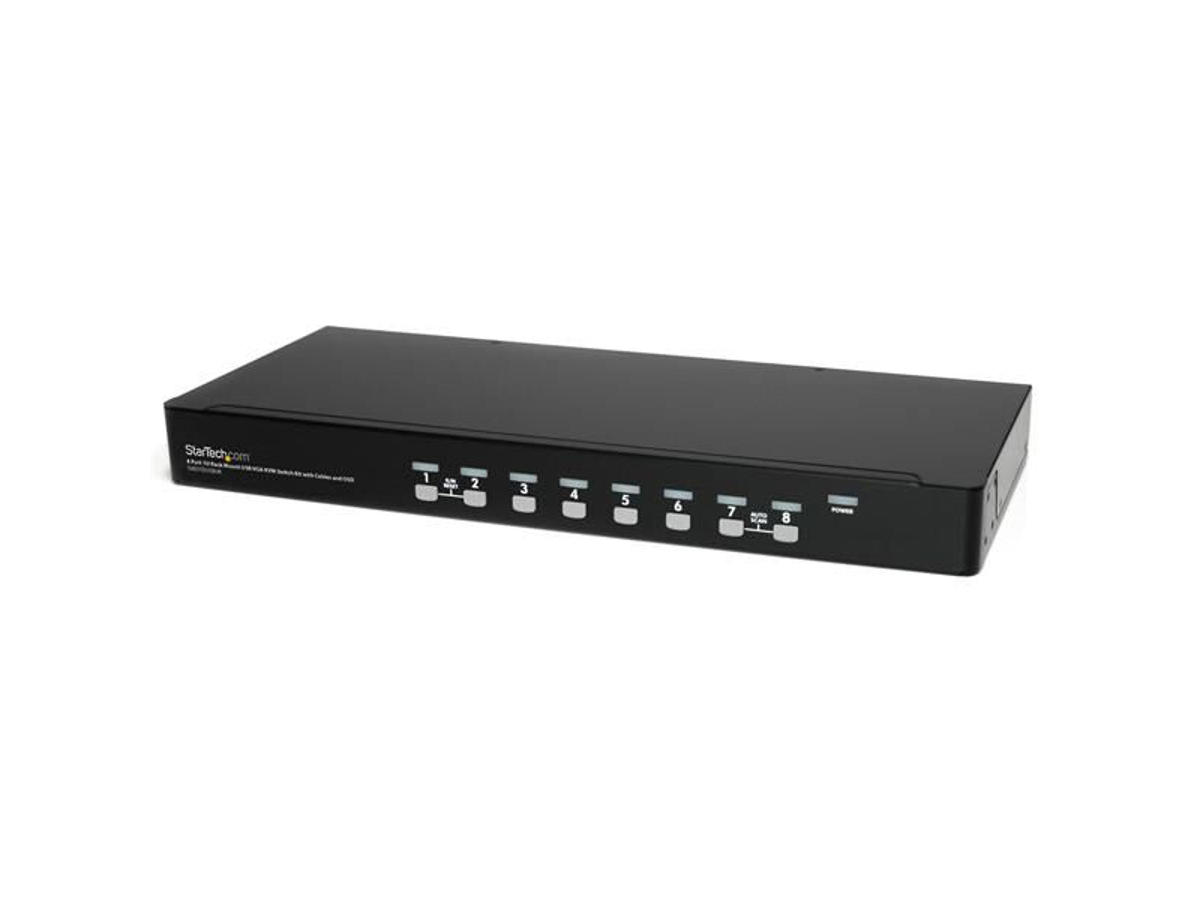

The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment
| Porte & Grænseflader | |
| Antal kontrollerede computere | 8 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | VGA |
| Konsol porte | USB A, VGA (D-Sub) |
| Antal VGA-porte (D-sub) | 9 |
| Antal konsol USB porte | 2 |
| Antal USB 2.0-porte | 2 |
| USB-stik type | USB Type-A |
| DC-in-stik | Ja |
| Præstation | |
| Maksimal opløsning | 1920 x 1440 pixel |
| Maksimal analog opløsning | 1920 x 1440 pixel |
| Plug and play | Ja |
| Daisy kæde | Ja |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Rackkapacitet | 1U |
| Husmateriale | Stål |
| Cascadable | Ja |
| LED-indikatorer | Strøm |
| Genvejstaster | Ja |
| Certificering | CE, FCC, TAA, REACH |
| Display | |
| Skærmvisning (OSD) | Ja |
| Strømstyring | |
| Indgangsspænding | 100 - 240 V |
| Udgangsspænding | 12 V |
| Udgangsstrøm | 1 A |
| Strømforbrug (typisk) | 12 W |
| Ekstern strømadapter | Ja |
| Kompatible strømplug typer | AU, EU, UK, US |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 435 mm |
| Dybde | 180 mm |
| Højde | 45 mm |
| Vægt | 2,2 kg |
| Emballeringsdata | |
| Pakkebredde | 262 mm |
| Pakkedybde | 606 mm |
| Pakkehøjde | 121 mm |
| Pakkevægt | 4,7 kg |
| Emballage indhold | |
| Kabler inkluderet | KVM |
| Brugervejledning | Ja |
| AC-adapter inkluderet | Ja |
| Rack monteringskit | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176200 |
| Andre funktioner | |
| Understøttelse af lyd | Ingen |
| IP kontrol | Ingen |
