Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

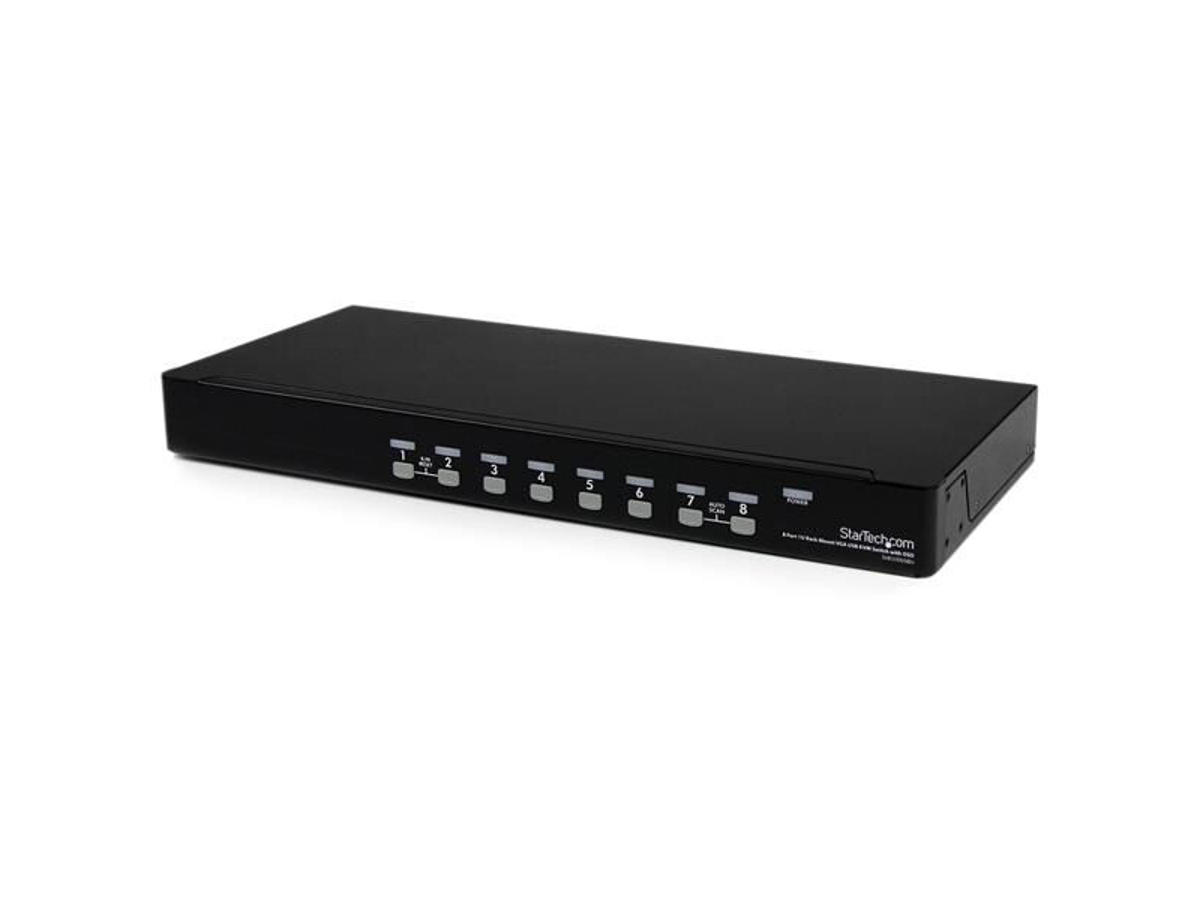

The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
The SV831DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. -
Porte & Grænseflader Antal kontrollerede computere 8 Tastatur porttype USB Mus porttype USB Video porttype VGA Konsol porte USB A, VGA (D-Sub) Antal VGA-porte (D-sub) 9 Antal konsol USB porte 2 Lydforbindelse Ingen DC-in-stik Ja Præstation Maksimal opløsning 1920 x 1440 pixel Plug and play Ja Daisy kæde Ja Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 1U Husmateriale Stål LED-indikatorer Ja Gennemsnitstid mellem fejl (MTBF) 150000 t Certificering CE, FCC, TAA, REACH Display Indbygget skærm Ingen Skærmvisning (OSD) Ja Strømstyring Indgangsspænding 100 - 240 V Indgangsstrøm 0.8 A Udgangsspænding 12 V Udgangsstrøm 1,5 A Strømstiktype Type M Kompatible strømplug typer EU, UK, US Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 5 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 540 mm Dybde 180 mm Højde 45 mm Vægt 2,9 kg Emballeringsdata Pakkebredde 89 mm Pakkedybde 573 mm Pakkehøjde 268 mm Pakkevægt 3,3 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Gummifødder Ja Andre funktioner Forbindelsesteknologi Ledningsført Dimensioner (BxDxH) 540 x 180 x 45 mm Porte, antal 8 Effektkrav 110 - 240 AC Understøttelse af lyd Ingen IP kontrol Ingen Logistik data Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 607 mm Hovedkassens længde (udvendigt) 286 mm Hovedkassen højde (udvendigt) 337 mm Produkter pr. hovedkasse (udvendigt) 4 stk
