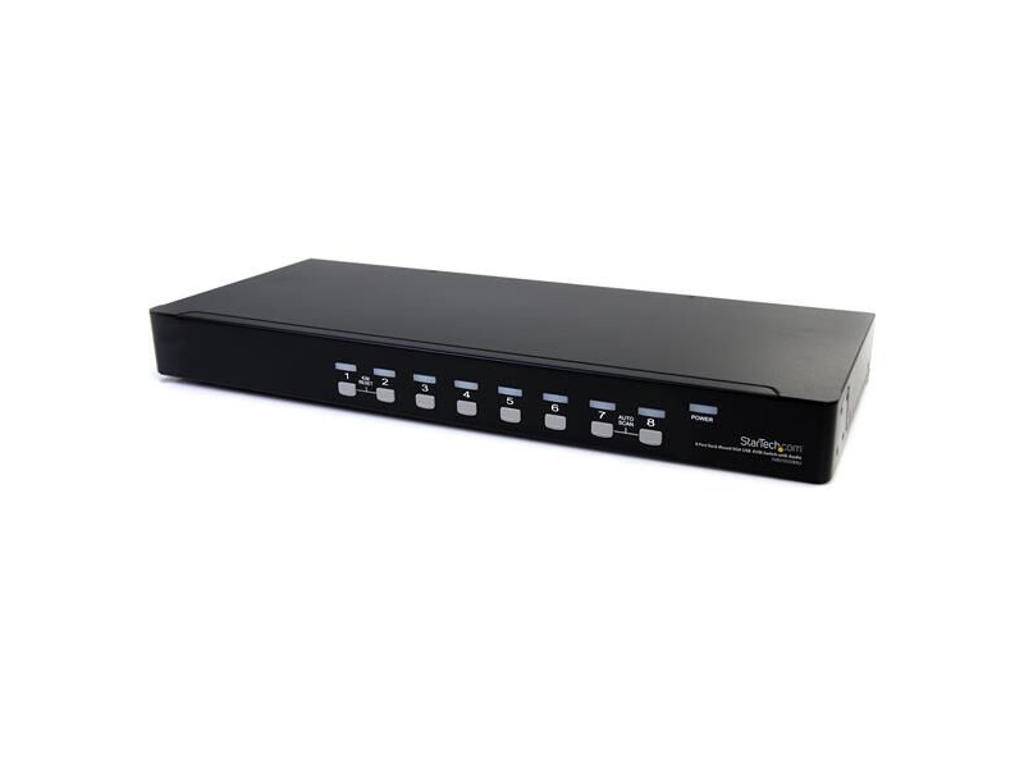

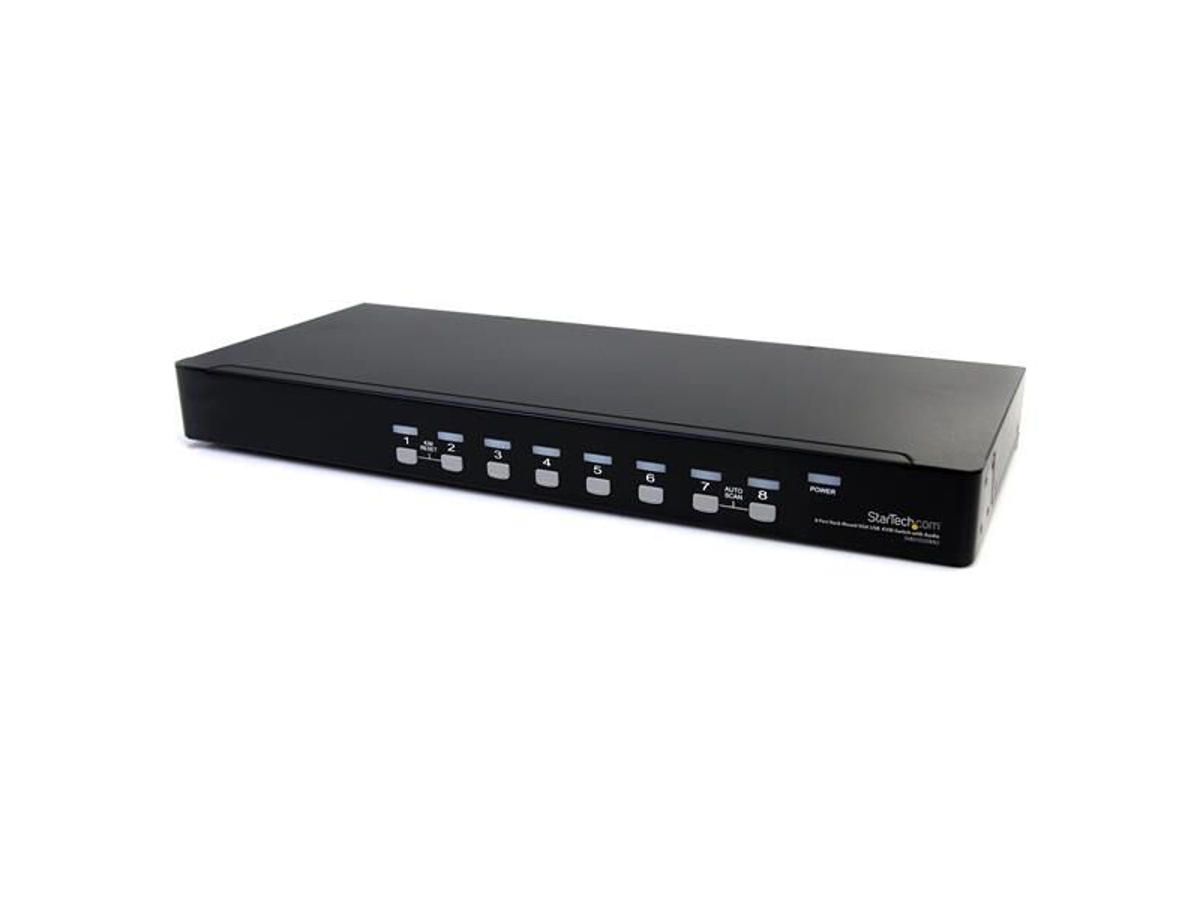

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.
Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
| Porte & Grænseflader | |
| Antal kontrollerede computere | 8 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | VGA |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, USB A, VGA (D-Sub) |
| Antal konsol USB porte | 2 |
| Antal USB 2.0-porte | 2 |
| USB-stik type | USB Type-A |
| Udgange til hovedtelefoner | 8 |
| Antal mikrofon-indgange | 8 |
| DC-in-stik | Ja |
| Præstation | |
| Maksimal opløsning | 1920 x 1440 pixel |
| Maksimal analog opløsning | 1920 x 1440 pixel |
| Plug and play | Ja |
| Daisy kæde | Ja |
| Antal brugere | 1 bruger(e) |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Rackkapacitet | 1U |
| Husmateriale | Stål |
| Cascadable | Ja |
| LED-indikatorer | Ja |
| Certificering | CE, FCC, UL |
| Display | |
| Skærmvisning (OSD) | Ja |
| Strømstyring | |
| Indgangsspænding | 110-240 V |
| Indgangsstrøm | 1.8 A |
| Udgangsspænding | 12 V |
| Udgangsstrøm | 4 A |
| Strømforbrug (typisk) | 48 W |
| Strømstiktype | Type M |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 540 mm |
| Dybde | 180 mm |
| Højde | 45 mm |
| Vægt | 2,6 kg |
| Emballeringsdata | |
| Pakkebredde | 123 mm |
| Pakkedybde | 591 mm |
| Pakkehøjde | 264 mm |
| Pakkevægt | 4,7 kg |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Brugervejledning | Ja |
| AC-adapter inkluderet | Ja |
| Gummifødder | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176200 |
| Andre funktioner | |
| Understøttelse af lyd | Ja |
| IP kontrol | Ingen |
