Control up to 4 high resolution multimedia computers from a single console

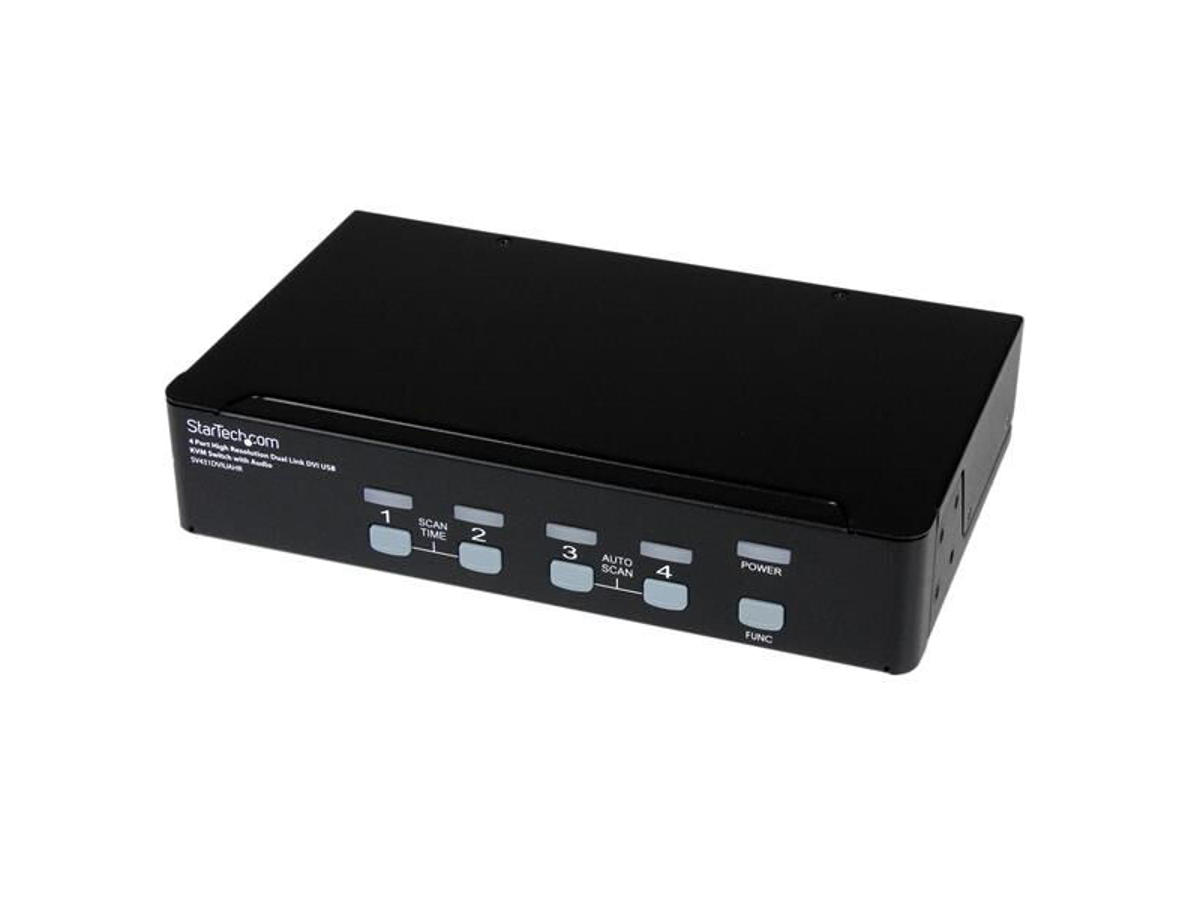

The SV431DVIUAHR 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio provides simple, yet comprehensive KVM control of up to 4 directly connected computers with dual link DVI output and USB keyboard and mouse connections.
Audio switching capability and support for high resolution dual link DVI applications up to 2560x1600 @ 60Hz (up to 3840x2400 at lower refresh rates), make this KVM a superior switching solution that integrates perfectly into multimedia environments.
The DVI USB KVM Switch is compatible with all USB supported operating systems with no software or drivers to install, and features a built-in USB 2.0 hub that allows you to share up to 3 high speed USB devices between computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Dual Link DVI interface supports higher resolution applications, allowing you to take full advantage of your larger high resolution monitor’s workspace
- Integrated USB 2.0 hub allows the user to have full multimedia control and share USB peripherals eliminating the expense of duplicate devices
- Supports even higher resolutions (exceeding 2560x1600) by using a lower refresh rate. Example 3840x2400 @30Hz -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype DVI-I Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DVI-I, USB A Antal DVI-I-porte 5 Antal USB 2.0-porte 4 Lydforbindelse Ja DC-in-stik Ja Præstation Maksimal opløsning 3840 x 2400 pixel Maksimal digital opløsning 2560 x 1600 pixel HDCP Ja Daisy kæde Ingen Antal brugere 1 bruger(e) Design Produktfarve Sort Gennemsnitstid mellem fejl (MTBF) 64000 t Certificering CE, FCC Display Indbygget skærm Ingen Strømstyring Indgangsspænding 110-240 V Indgangsstrøm 0.4 A Udgangsspænding 5 V Udgangsstrøm 2 A Strømstiktype Type M Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 220 mm Dybde 130 mm Højde 44 mm Vægt 1,75 kg Emballeringsdata Pakkebredde 95 mm Pakkedybde 411 mm Pakkehøjde 214 mm Pakkevægt 1,24 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Gummifødder Ja Logistik data Harmoniseret systemkode (HS) 85176200 Andre funktioner Understøttelse af lyd Ja IP kontrol Ingen
