This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers

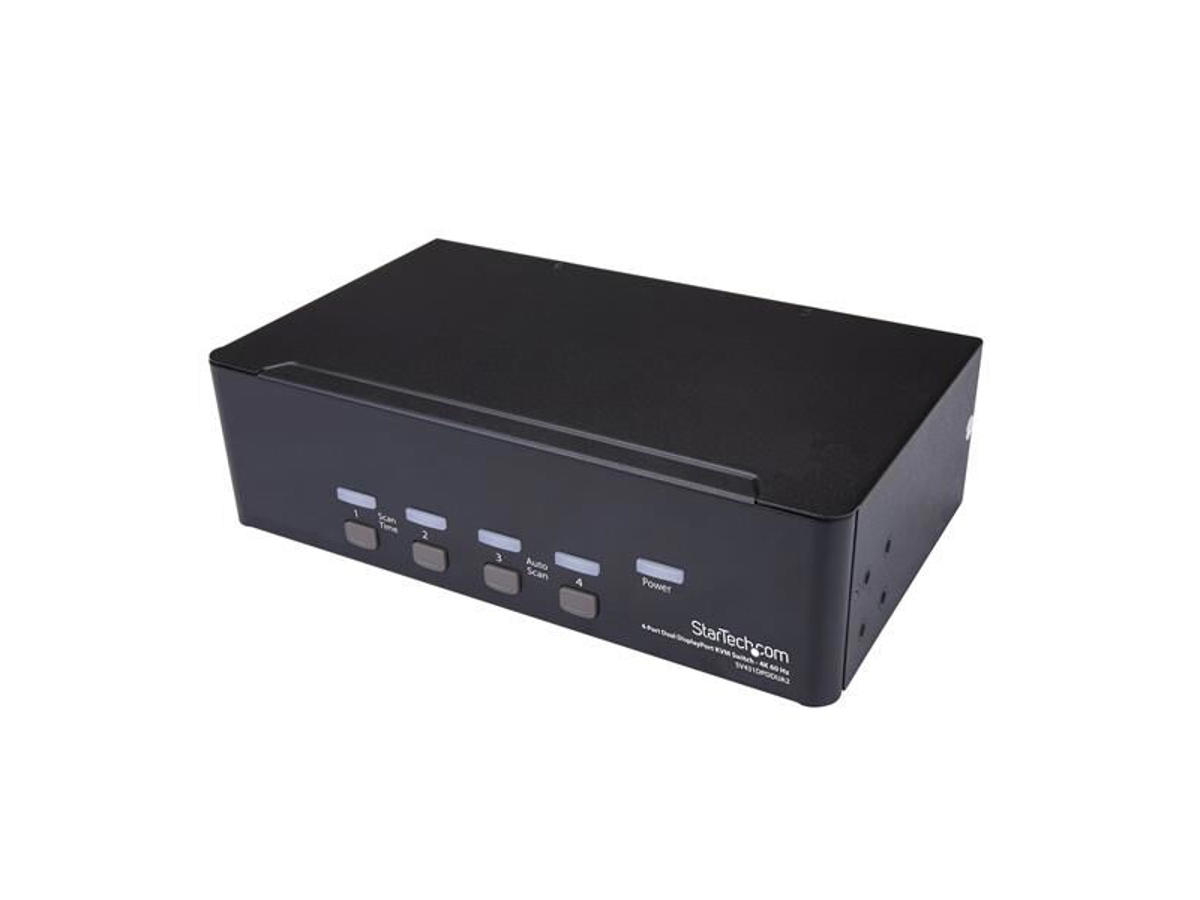

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A Antal DisplayPorts 10 Antal konsol USB porte 4 USB stik Ja USB-stik type USB Type-A Lydforbindelse Ja DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Dataoverførselshastighed (maks.) 0,5 Gbit/sek. Skanningsinterval 3,8,15,30 sek./side Daisy kæde Ingen Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 2U Husmateriale Stål LED-indikatorer Strøm Genvejstaster Ja Gennemsnitstid mellem fejl (MTBF) 142000 t Certificering CE, FCC, TAA, REACH Display Indbygget skærm Ingen Strømstyring Strømkilde Vekselstrøm Indgangsspænding 100 - 240 V Indgangsstrøm 0.6 A Udgangsspænding 12 V Udgangsstrøm 1,5 A Strømforbrug (typisk) 18 W Ekstern strømadapter Ja Strømstiktype Type M Kompatible strømplug typer AU, EU, JP, UK, US Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 216 mm Dybde 127 mm Højde 63 mm Vægt 1,2 kg Emballeringsdata Pakkebredde 243 mm Pakkedybde 297 mm Pakkehøjde 87 mm Pakkevægt 1,8 kg Emballage indhold Hurtig installationsvejledning Ja Gummifødder Ja Logistik data Harmoniseret systemkode (HS) 85176200 Andre funktioner Understøttelse af lyd Ja IP kontrol Ingen
