Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers

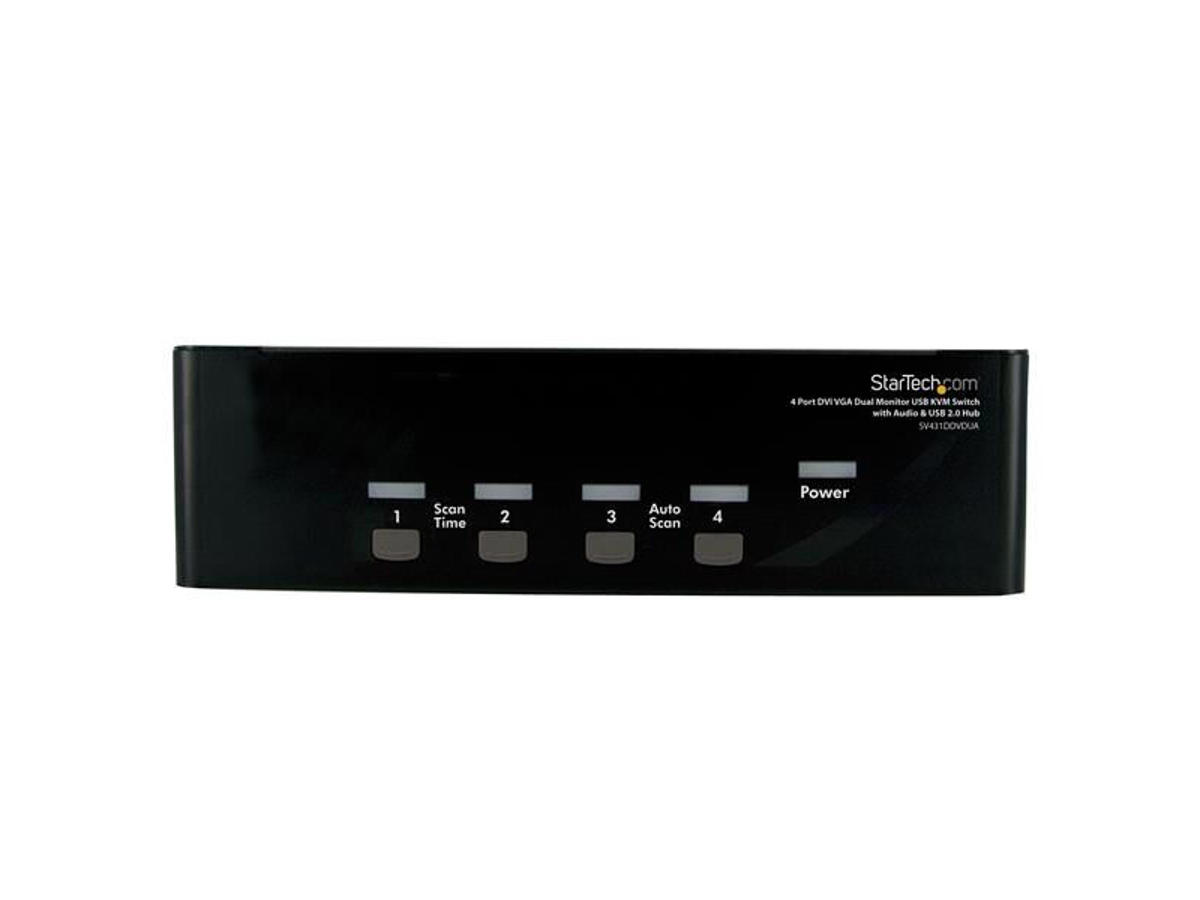

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM. -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype VGA/DVI-I Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) Antal DVI-I-porte 5 Antal VGA-porte (D-sub) 5 Antal konsol USB porte 4 USB-stik type USB Type-A Lydforbindelse Ja Udgange til hovedtelefoner 1 Antal mikrofon-indgange 1 DC-in-stik Ja Præstation Maksimal opløsning 1920 x 1200 pixel Daisy kæde Ingen Antal brugere 1 bruger(e) Design Produktfarve Sort Husmateriale Stål LED-indikatorer Ja Genvejstaster Ja Gennemsnitstid mellem fejl (MTBF) 140000 t Certificering CE, FCC, UL, REACH Display Indbygget skærm Ingen Skærmvisning (OSD) Ingen Strømstyring Indgangsspænding 100 - 240 V Indgangsstrøm 0.8 A Udgangsspænding 12 V Udgangsstrøm 1,5 A Strømforbrug (typisk) 18 W Ekstern strømadapter Ja Strømstiktype Type M Kompatible strømplug typer AU, EU, UK, US Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 220 mm Dybde 163 mm Højde 60 mm Vægt 1,3 kg Emballeringsdata Pakkebredde 255 mm Pakkedybde 300 mm Pakkehøjde 87 mm Pakkevægt 1,8 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Gummifødder Ja Logistik data Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 318 mm Hovedkassens længde (udvendigt) 506 mm Hovedkassen højde (udvendigt) 284 mm Produkter pr. hovedkasse (udvendigt) 6 stk Andre funktioner IP kontrol Ingen
