Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers

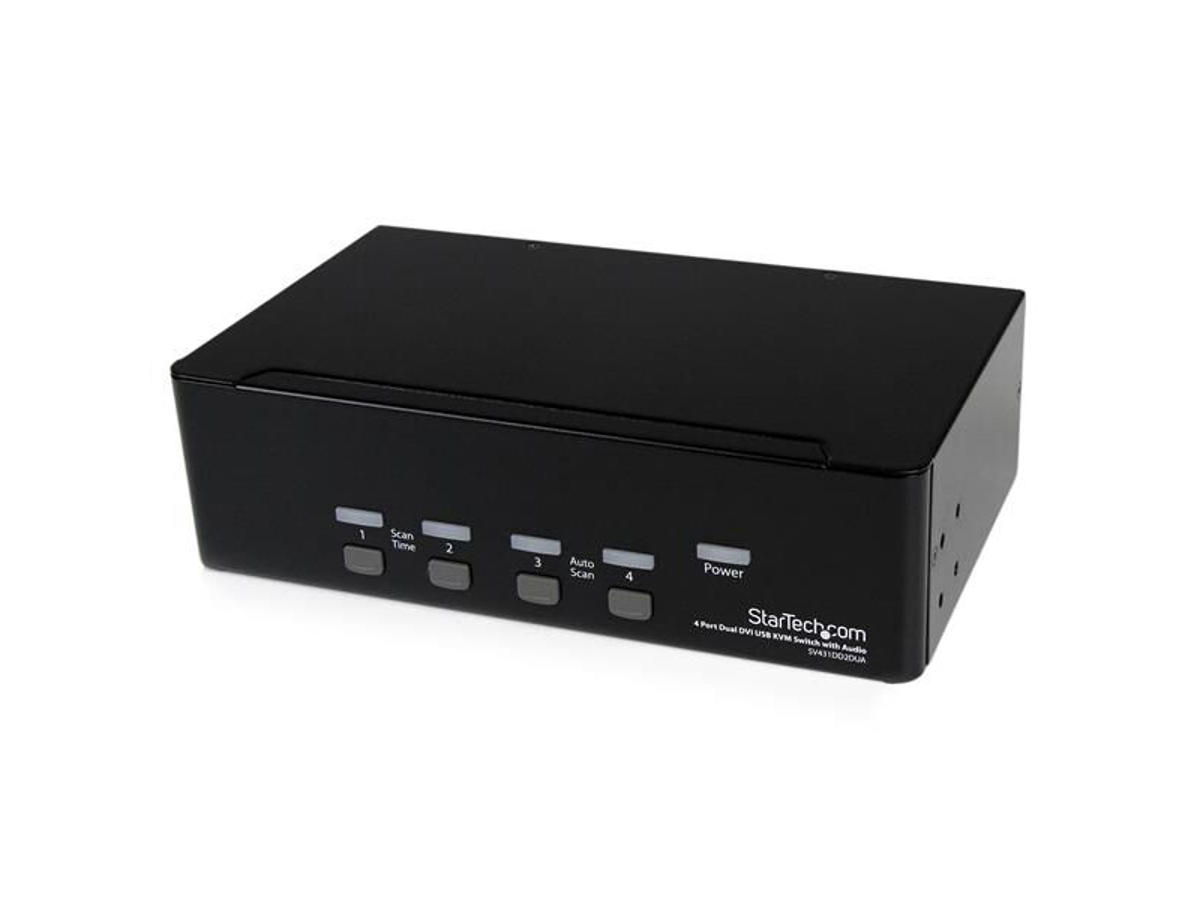

The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM. -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype DVI-I Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DVI-I, USB A Antal USB 2.0-porte 4 USB-stik type USB Type-A Lydforbindelse Ja Antal mikrofon-indgange 1 DC-in-stik Ja Netværk Ethernet LAN Ingen Præstation Maksimal opløsning 2048 x 1536 pixel Maksimal digital opløsning 1920 x 1200 pixel Maksimal analog opløsning 2048 x 1536 pixel Daisy kæde Ingen Antal brugere 1 bruger(e) Design Produktfarve Sort Husmateriale Stål LED-indikatorer Strøm Certificering CE, FCC, UL Strømstyring Indgangsspænding 100-240 V Indgangsstrøm 0.8 A Udgangsspænding 12 V Udgangsstrøm 1,5 A Kompatible strømplug typer AU, EU, UK, US Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 220 mm Dybde 130 mm Højde 60 mm Vægt 1,25 kg Emballeringsdata Pakkebredde 247 mm Pakkedybde 295 mm Pakkehøjde 86 mm Pakkevægt 1,88 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Gummifødder Ja Logistik data Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 318 mm Hovedkassens længde (udvendigt) 510 mm Hovedkassen højde (udvendigt) 298 mm Produkter pr. hovedkasse (udvendigt) 6 stk Andre funktioner IP kontrol Ingen
