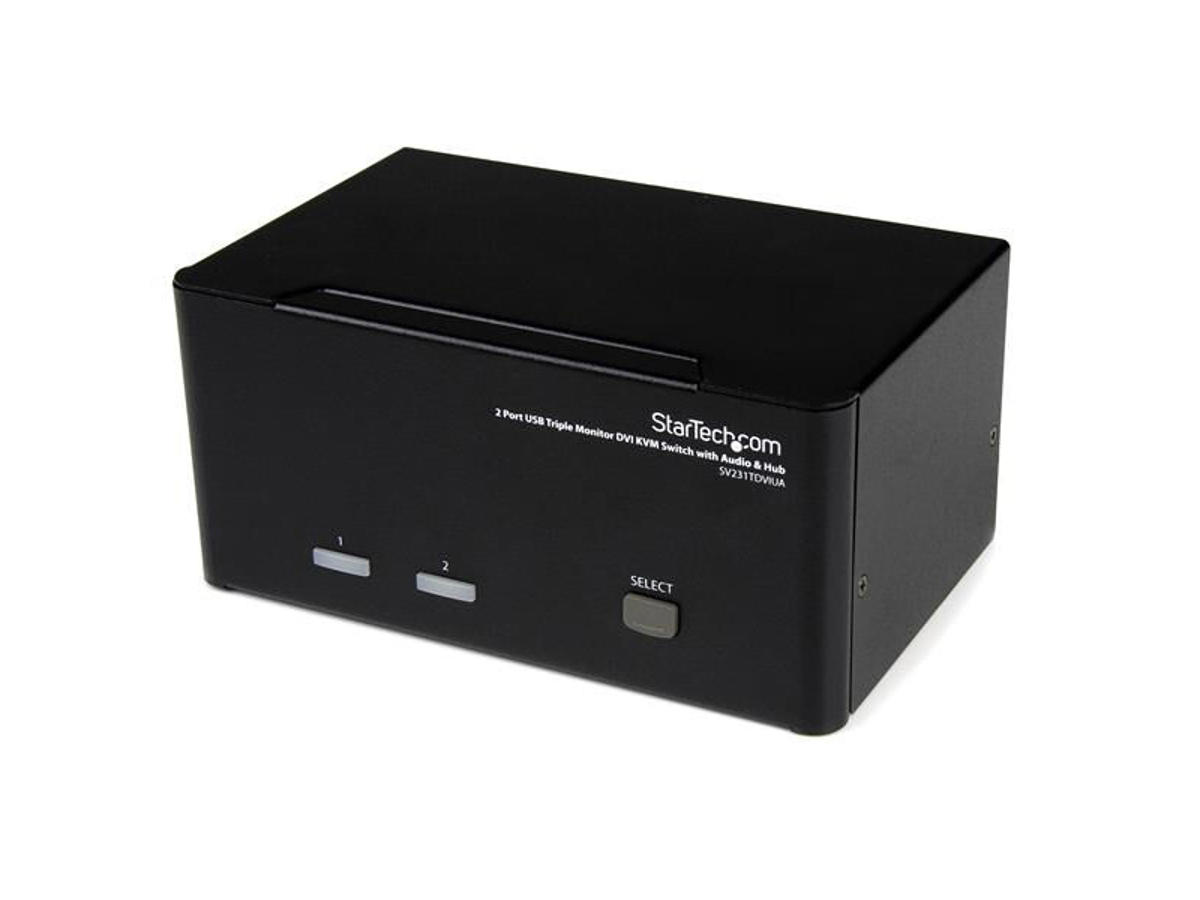

The SV231TDVIUA 2-Port Triple Monitor DVI USB KVM Switch allows 2 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam. The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs. The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support. PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections. The StarTech.com Advantage - By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space - With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity - Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
Porte & Grænseflader | |
Antal kontrollerede computere | 2 |
Tastatur porttype | USB |
Mus porttype | USB |
Video porttype | DVI-I |
Konsol porte | DVI-I, 3,5 mm hovedtelefon, 3.5mm mic, USB A |
Antal DVI-I-porte | 6 |
Antal konsol USB porte | 4 |
Antal USB 2.0-porte | 2 |
Lydforbindelse | Ja |
Udgange til hovedtelefoner | 2 |
Antal mikrofon-indgange | 2 |
DC-in-stik | Ja |
Præstation | |
Maksimal opløsning | 1920 x 1200 pixel |
Maksimal digital opløsning | 1920 x 1200 pixel |
Skanningsinterval | 3,8,15,30 sek./side |
HDCP | Ja |
Plug and play | Ja |
Daisy kæde | Ingen |
Antal brugere | 1 bruger(e) |
Design | |
Stativ-montering | Ingen |
Produktfarve | Sort |
LED-indikatorer | Aktivitet |
Genvejstaster | Ja |
Gennemsnitstid mellem fejl (MTBF) | 62000 t |
Certificering | CE, FCC |
Display | |
Indbygget skærm | Ingen |
Skærmvisning (OSD) | Ingen |
Strømstyring | |
Vekselstrømsindgangsspænding | 110-240 V |
Indgangsstrøm | 0.8 A |
Udgangsspænding | 12 V |
Udgangsstrøm | 1,5 A |
Strømforbrug (typisk) | 18 W |
Ekstern strømadapter | Ja |
Strømstiktype | Type M |
Bæredygtighed | |
Bæredygtighedscertifikater | RoHS |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -10 - 60 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Bredde | 159 mm |
Dybde | 100 mm |
Højde | 74 mm |
Vægt | 900 g |
Emballeringsdata | |
Pakkebredde | 185 mm |
Pakkedybde | 240 mm |
Pakkehøjde | 95 mm |
Pakkevægt | 1,41 kg |
Emballage indhold | |
Brugervejledning | Ja |
AC-adapter inkluderet | Ja |
Gummifødder | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176200 |
Andre funktioner | |
Understøttelse af lyd | Ja |
IP kontrol | Ingen |
