Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers

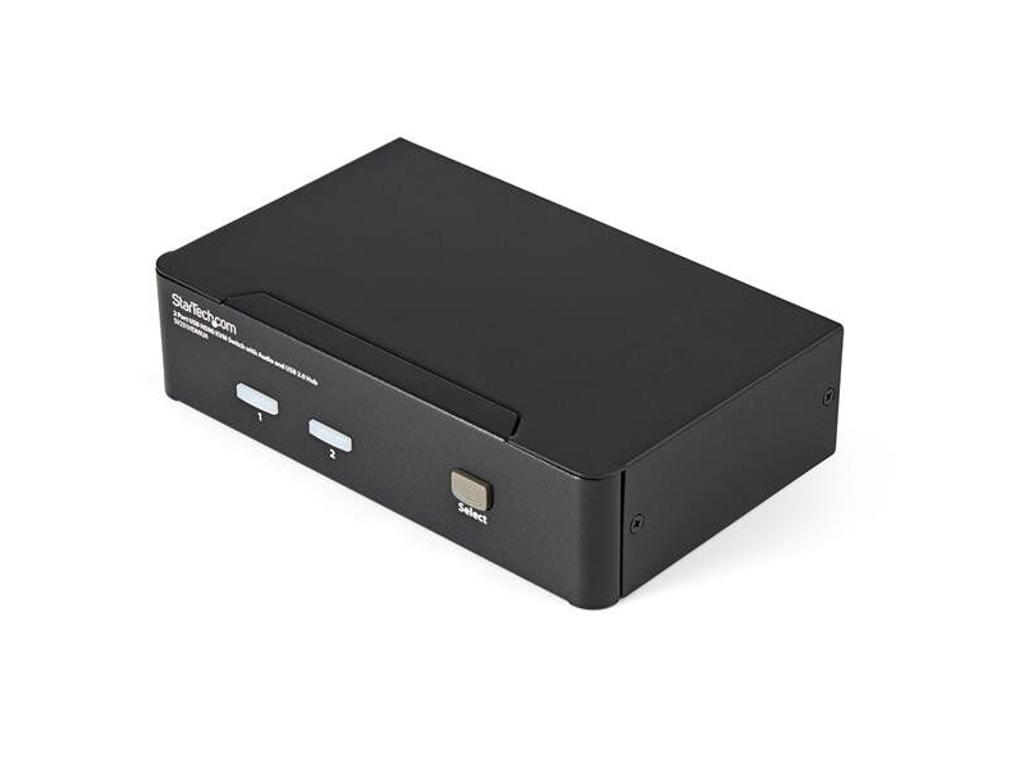

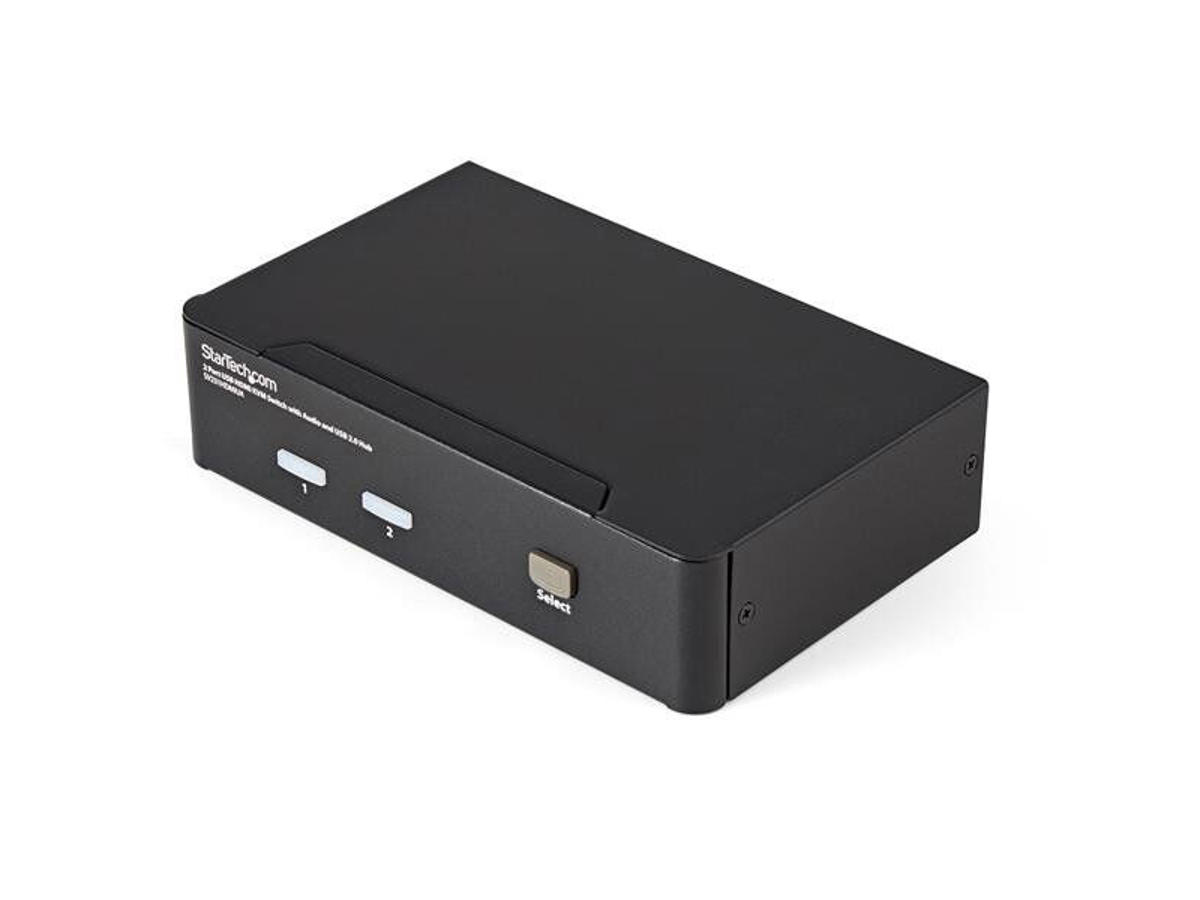

The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype HDMI Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB A Antal konsol USB porte 4 Udgange til hovedtelefoner 3 Antal mikrofon-indgange 3 Præstation HD-type Fuld HD Maksimal opløsning 1920 x 1200 pixel Daisy kæde Ingen Design Stativ-montering Ingen Produktfarve Sort Gennemsnitstid mellem fejl (MTBF) 126813 t Certificering R0HS Display Skærmvisning (OSD) Ingen Strømstyring Indgangsspænding 100 - 240, 12 V Indgangsstrøm 0.8 A Udgangsstrøm 1,5 A Strømforbrug (typisk) 18 W Strømstiktype Type M Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 125 mm Dybde 70 mm Højde 40 mm Vægt 634 g Emballeringsdata Pakkebredde 188 mm Pakkedybde 250 mm Pakkehøjde 100 mm Pakkevægt 1,1 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Gummifødder Ja Andre funktioner Forbindelsesteknologi Ledningsført Dimensioner (BxDxH) 124,8 x 70 x 40 mm Porte, antal 2 Effektkrav AC 110 - 240 V I/O-porte 1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) 2x mini-HDMI (F) Logistik data Harmoniseret systemkode (HS) 85176200
