Share keyboard, mouse, speakers and a DVI display between two multimedia computers

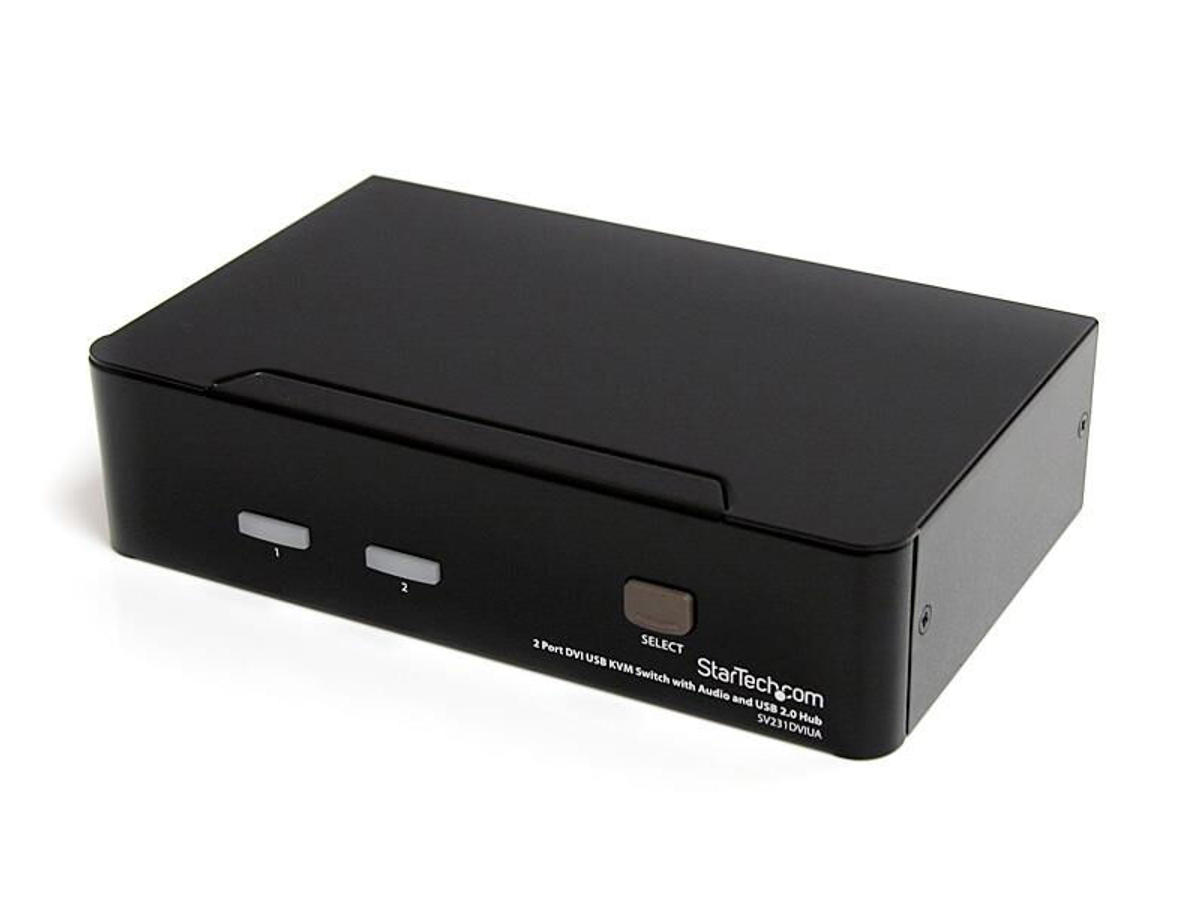

The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.
Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.
The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.
This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- High resolution support (1920x1200) offers crystal clear video clarity even on large displays
- Absolutely no software or drivers required, providing a completely OS independent KVM solution -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype DVI-I Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DVI-I, USB A Antal konsol USB porte 4 Lydforbindelse Ja Udgange til hovedtelefoner 3 Antal mikrofon-indgange 3 DC-in-stik Ja Præstation HD-type Fuld HD Maksimal opløsning 1920 x 1200 pixel Daisy kæde Ingen Antal brugere 1 bruger(e) Design Stativ-montering Ingen Produktfarve Sort LED-indikatorer Ja Gennemsnitstid mellem fejl (MTBF) 126397 t Display Indbygget skærm Ingen Strømstyring Indgangsspænding 100 - 240 V Indgangsstrøm 0.8 A Udgangsspænding 12 V Udgangsstrøm 1,5 A Strømforbrug (typisk) 18 W Strømstiktype Type M Kompatible strømplug typer EU, UK, US Bæredygtighed Compliance-certifikater CE, RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 199 mm Dybde 160 mm Højde 40 mm Vægt 650 g Emballeringsdata Pakkebredde 242 mm Pakkedybde 187 mm Pakkehøjde 91 mm Pakkevægt 1,1 kg Emballage indhold Brugervejledning Ja Gummifødder Ja Logistik data Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 314 mm Hovedkassens længde (udvendigt) 399 mm Hovedkassen højde (udvendigt) 260 mm Produkter pr. hovedkasse (udvendigt) 6 stk
