Control two computers from a single console, with high-resolution DisplayPort video, USB keyboard, mouse, and audio

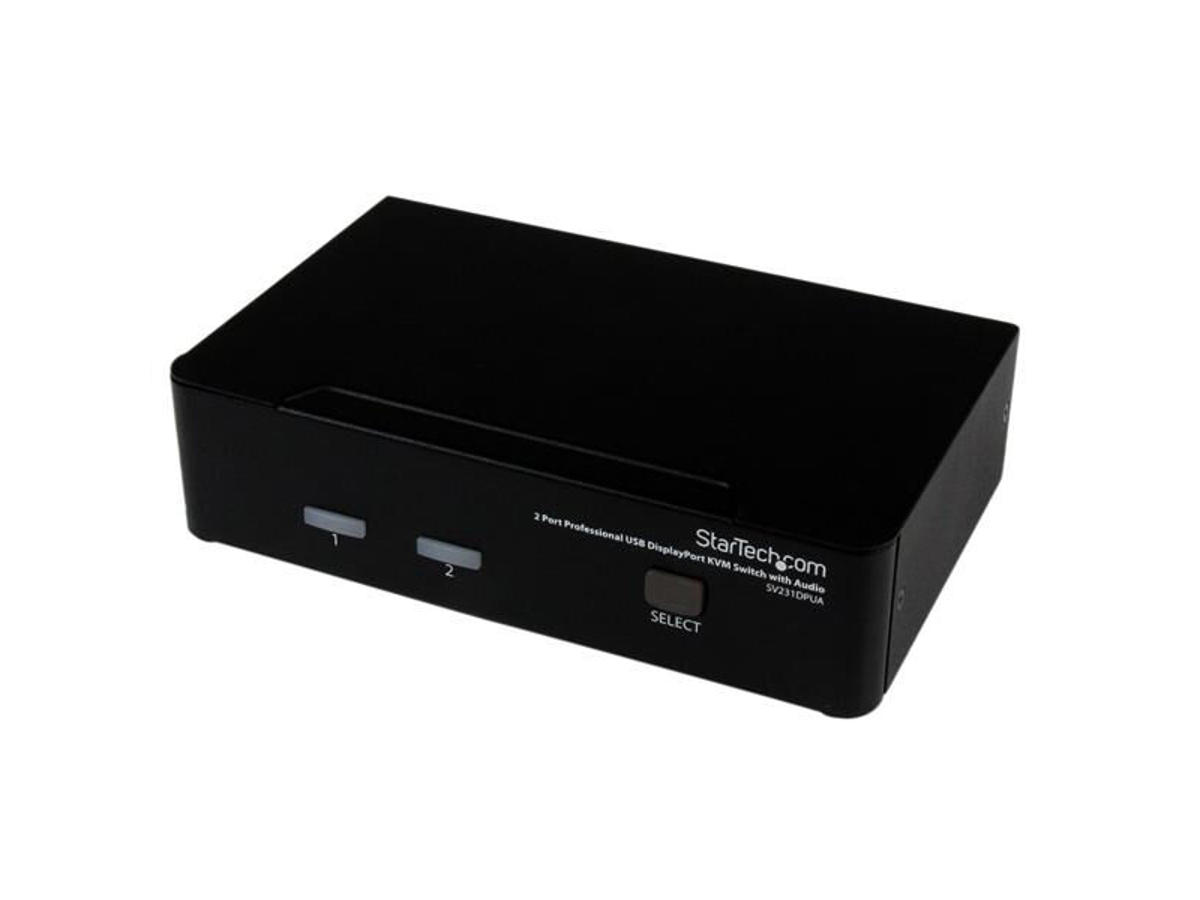

The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.) -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A Antal DisplayPorts 2 Antal konsol USB porte 4 USB stik Ja USB-stik type USB Type-A Lydforbindelse Ja Udgange til hovedtelefoner 3 Antal mikrofon-indgange 3 DC-in-stik Ja Netværk Ethernet LAN Ingen Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2400 pixel DDC2B support Ja Understøtter hot-plug Ja Plug and play Ja Daisy kæde Ingen Lyd kanaler 7.1 Design Stativ-montering Ingen Produktfarve Sort Husmateriale Stål LED-indikatorer Ja Trykknap Ja Genvejstaster Ja Certificering CE, UL, FCC, REACH Display Indbygget skærm Ingen Skærmvisning (OSD) Ingen Strømstyring Indgangsspænding 110 - 240 V Indgangsstrøm 0.8 A Udgangsspænding 12 V Udgangsstrøm 2 A Strømforbrug (typisk) 24 W Ekstern strømadapter Ja Strømstiktype Type M Kompatible strømplug typer AU, EU, UK, US Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 220 mm Dybde 130 mm Højde 44 mm Vægt 1,1 kg Emballeringsdata Pakkebredde 100 mm Pakkedybde 250 mm Pakkehøjde 181 mm Pakkevægt 1,3 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Gummifødder Ja Logistik data Harmoniseret systemkode (HS) 85176200 Andre funktioner Understøttelse af lyd Ingen IP kontrol Ingen
