Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.

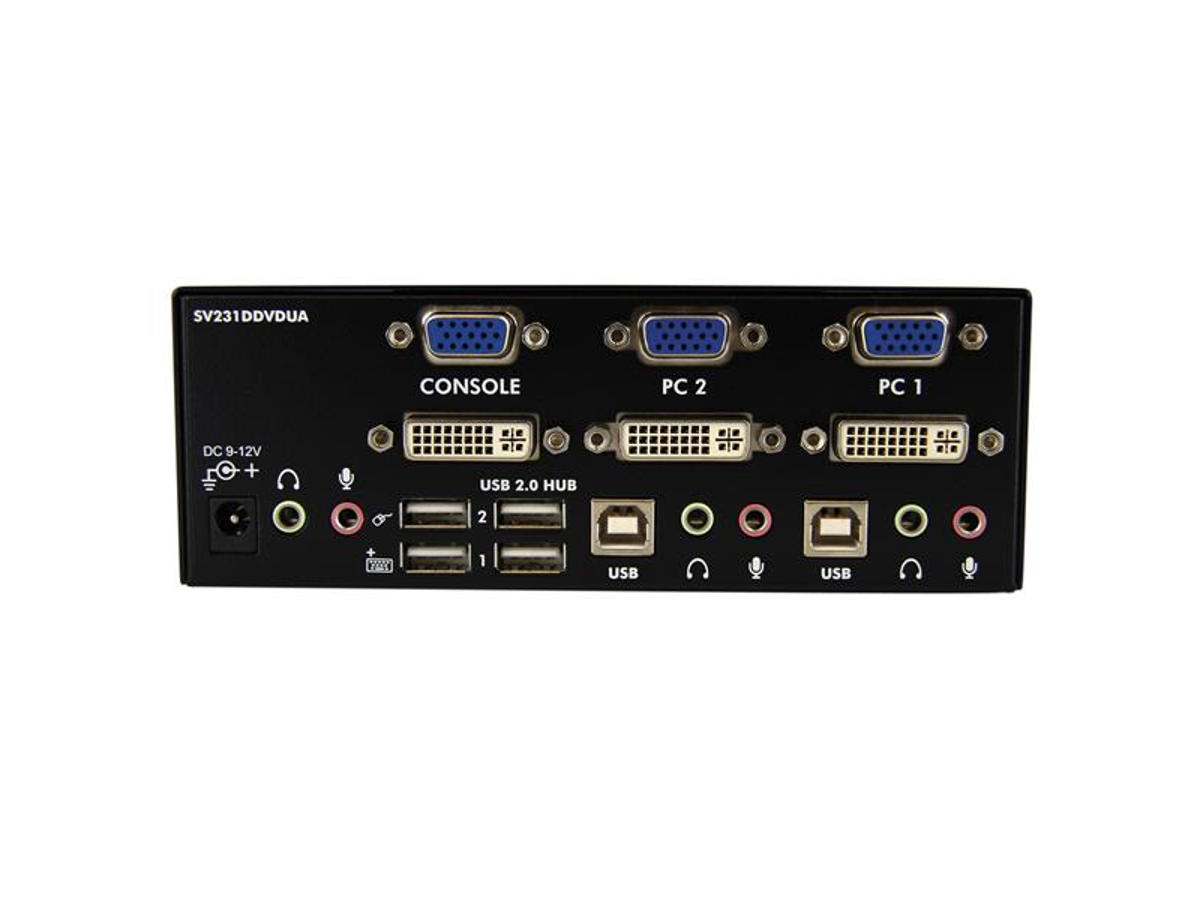

With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype VGA/DVI-I Konsol porte 3ˌ5 mm hovedtelefon, DVI-I, VGA (D-Sub) Antal USB 2.0-porte 4 USB-stik type USB Type-A Lydforbindelse Ja Udgange til hovedtelefoner 3 Antal mikrofon-indgange 3 Præstation HD-type WUXGA Maksimal opløsning 1920 x 1200 pixel Maksimal digital opløsning 1920 x 1200 pixel DDC2B support Ja HDCP Ja Daisy kæde Ingen Antal brugere 1 bruger(e) Design Stativ-montering Ingen Produktfarve Sort Husmateriale Stål LED-indikatorer Strøm Gennemsnitstid mellem fejl (MTBF) 64691 t Certificering CE, FCC Display Indbygget skærm Ingen Strømstyring Indgangsspænding 100-240 V Indgangsstrøm 0.8 A Udgangsspænding 12 V Udgangsstrøm 1,5 A Strømforbrug (typisk) 18 W Ekstern strømadapter Ja Strømstiktype Type M Kompatible strømplug typer AU, EU, UK, US Bæredygtighed Compliance-certifikater RoHS Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 160 mm Dybde 163 mm Højde 57 mm Vægt 750 g Emballeringsdata Pakkebredde 295 mm Pakkedybde 199 mm Pakkehøjde 72 mm Pakkevægt 1,29 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Gummifødder Ja Logistik data Harmoniseret systemkode (HS) 85176200 Andre funktioner Understøttelse af lyd Ja IP kontrol Ingen
