Control up to 16 USB computers from a single keyboard, mouse and monitor

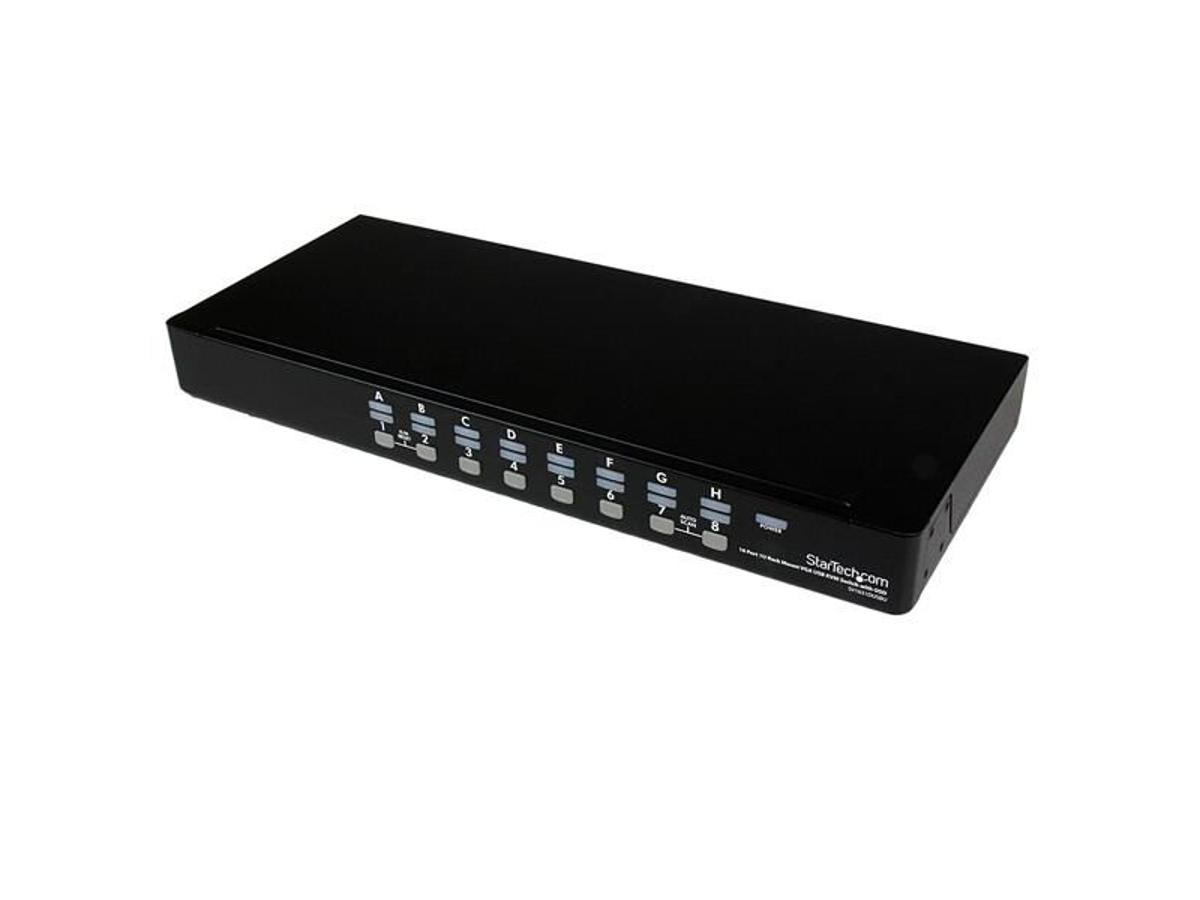

The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV1631DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable -
Porte & Grænseflader Antal kontrollerede computere 16 Tastatur porttype USB Mus porttype USB Video porttype VGA Konsol porte USB A, VGA (D-Sub) Antal konsol USB porte 2 Lydforbindelse Ingen DC-in-stik Ja Præstation Maksimal opløsning 1920 x 1440 pixel Plug and play Ja Daisy kæde Ja Design Stativ-montering Ja Produktfarve Sort Rackkapacitet 1U Husmateriale Stål LED-indikatorer Ja Display Indbygget skærm Ingen Strømstyring Indgangsspænding 110-240 V Indgangsstrøm 0.8 A Udgangsspænding 12 V Udgangsstrøm 1,5 A Strømstiktype Type M Driftsbetingelser Driftstemperatur (T-T) 5 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 5 - 80% Vægt & størrelser Bredde 540 mm Dybde 180 mm Højde 45 mm Vægt 3,1 kg Emballeringsdata Pakkebredde 597 mm Pakkedybde 265 mm Pakkehøjde 91 mm Pakkevægt 3,53 kg Emballage indhold Brugervejledning Ja AC-adapter inkluderet Ja Logistik data Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 613 mm Hovedkassens længde (udvendigt) 290 mm Hovedkassen højde (udvendigt) 412 mm Produkter pr. hovedkasse (udvendigt) 4 stk Andre funktioner Understøttelse af lyd Ingen IP kontrol Ingen
