Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers

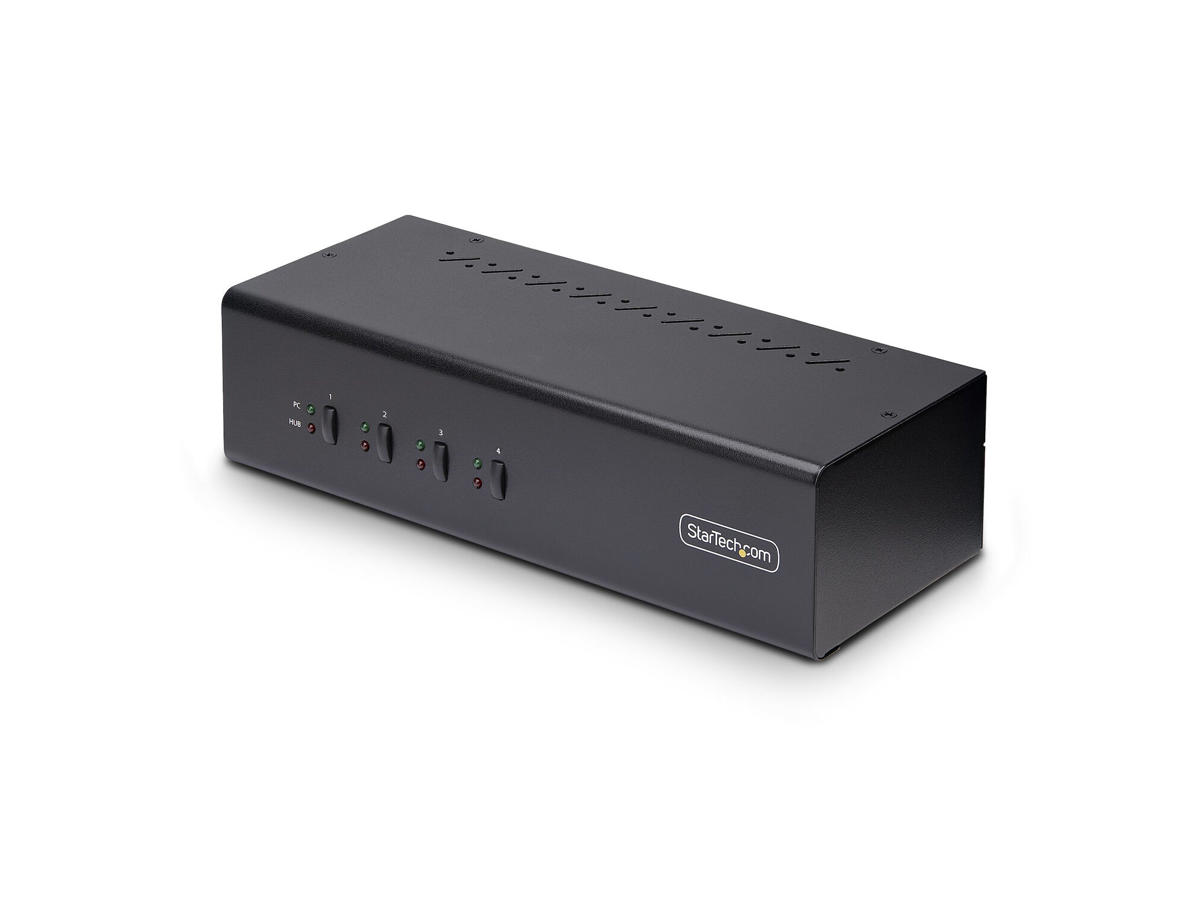

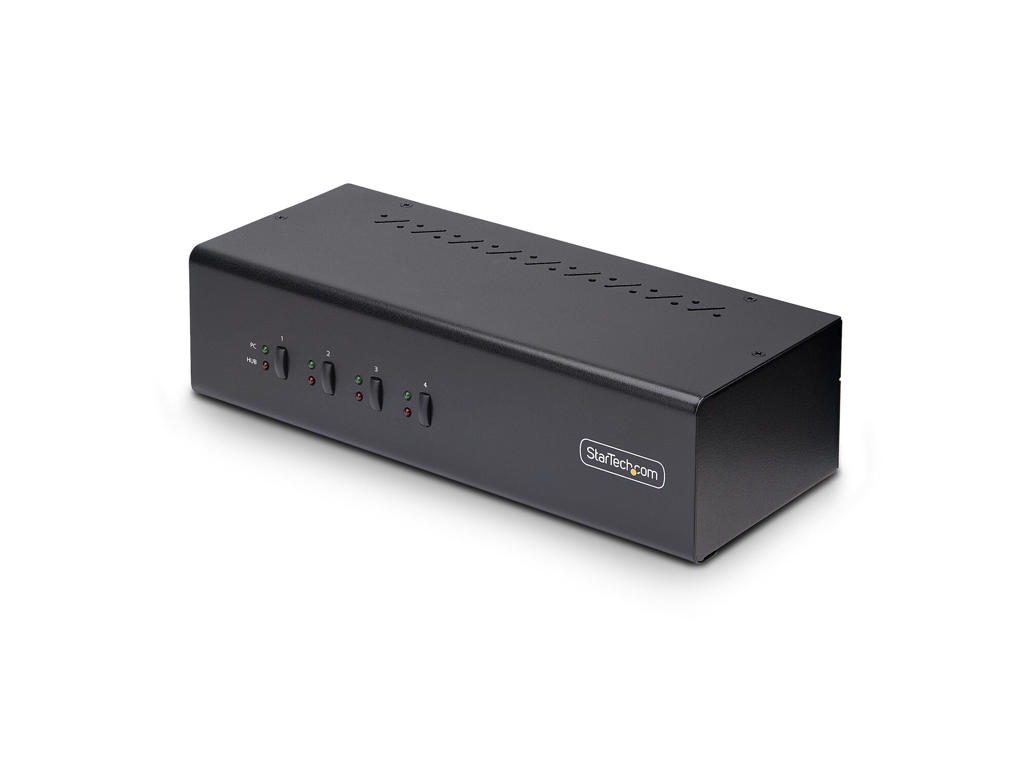

This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.
Fast Switching with USB Emulation
USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.
Dual-4K 60Hz Displays & USB 5Gbps Hub Ports
This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.
Customizable Switching
This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort Antal DisplayPorts 8 DisplayPort-version 1.2 Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte 4 Antal konsol displayporte 2 USB stik Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 2 Lydforbindelse Ja Udgange til hovedtelefoner 5 Antal mikrofon-indgange 5 DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Video båndbredde 60 Hz Dataoverførselshastighed (maks.) 5 Gbit/sek. Skanningsinterval 10,20,30,40,50,60 sek./side HDCP Ja Plug and play Ja Daisy kæde Ingen Design Stativ-montering Ingen Produktfarve Sort LED-indikatorer Ja Trykknap Ja Genvejstaster Ja Gennemsnitstid mellem fejl (MTBF) 103062 t Display Indbygget skærm Ingen Skærmvisning (OSD) Ja Strømstyring Strømkilde DC Indgangsspænding 100 - 240 V Indgangsstrøm 1 A Udgangsspænding 12 V Udgangsstrøm 3 A Ekstern strømadapter Ja Kompatible strømplug typer EU, JP, UK, US Bæredygtighed Compliance-certifikater RoHS, Lov om handelsaftaler (TAA) Overholdelse af bæredygtighed Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 100 mm Dybde 253 mm Højde 66 mm Vægt 1,2 kg Emballeringsdata Pakkebredde 332 mm Pakkedybde 162 mm Pakkehøjde 129 mm Pakkevægt 1,4 kg Emballage indhold Hurtig installationsvejledning Ja AC-adapter inkluderet Ja Logistik data Hovedkassens bredde (udvendigt) 513 mm Hovedkassens længde (udvendigt) 352 mm Hovedkassen højde (udvendigt) 301 mm Produkter pr. hovedkasse (udvendigt) 6 stk Andre funktioner IP kontrol Ingen
