Control 2 high-resolution dual DisplayPort computers with a single console

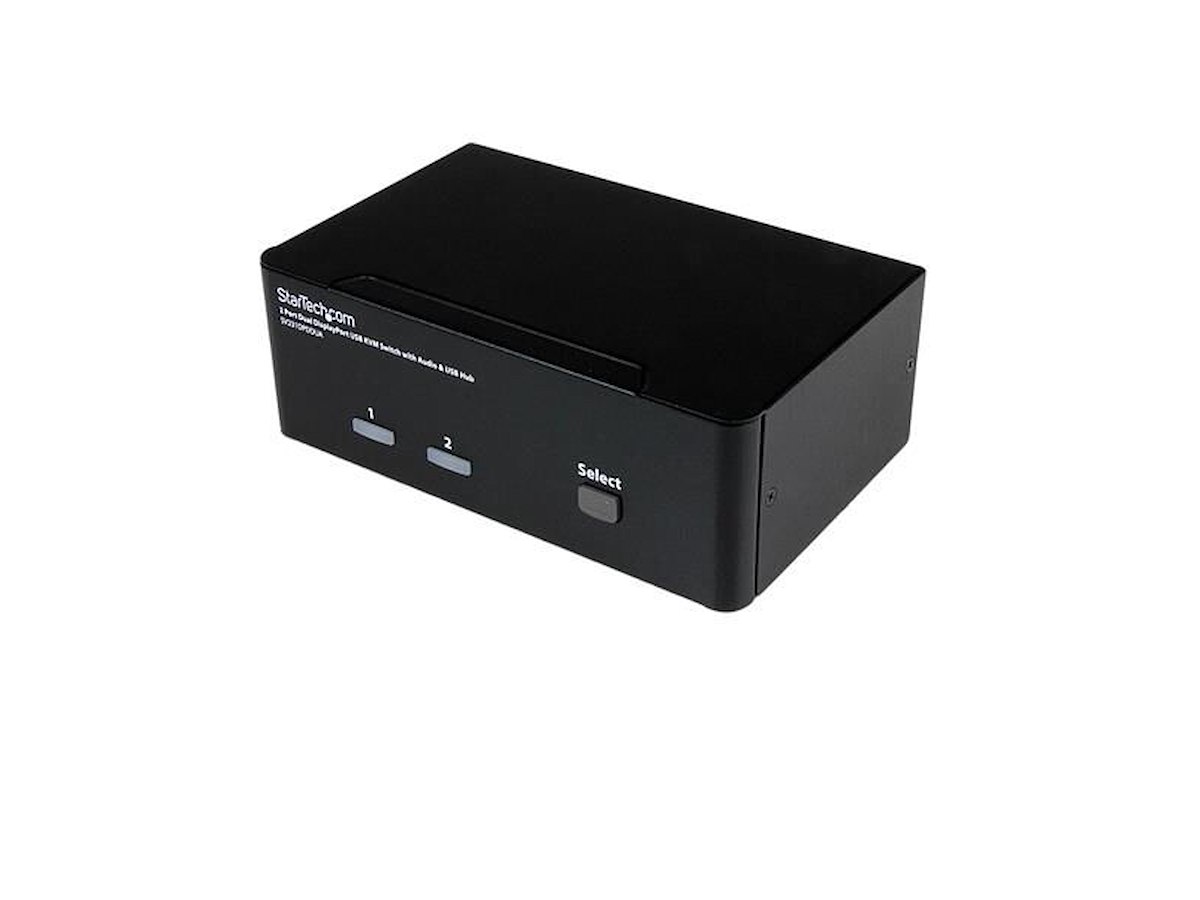

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
| Porte & Grænseflader | |
| Antal kontrollerede computere | 2 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | DisplayPort |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A |
| Antal DisplayPorts | 6 |
| Antal konsol USB porte | 2 |
| USB stik | Ja |
| USB-stik type | USB Type-A |
| Lydforbindelse | Ja |
| Udgange til hovedtelefoner | 3 |
| Antal mikrofon-indgange | 3 |
| DC-in-stik | Ja |
| Netværk | |
| Ethernet LAN | Ingen |
| Præstation | |
| HD-type | 4K Ultra HD |
| Maksimal opløsning | 3840 x 2400 pixel |
| DDC2B support | Ja |
| Understøtter hot-plug | Ja |
| Daisy kæde | Ingen |
| Antal brugere | 1 bruger(e) |
| Lyd kanaler | 7.1 |
| Design | |
| Stativ-montering | Ingen |
| Produktfarve | Sort |
| Husmateriale | Stål |
| LED-indikatorer | Ja |
| Trykknap | Ja |
| Genvejstaster | Ja |
| Certificering | CE, FCC, REACH, TAA |
| Display | |
| Indbygget skærm | Ingen |
| Skærmvisning (OSD) | Ingen |
| Strømstyring | |
| Indgangsspænding | 110 - 240 V |
| Indgangsstrøm | 0.8 A |
| Udgangsspænding | 12 V |
| Udgangsstrøm | 1,5 A |
| Strømforbrug (typisk) | 18 W |
| Ekstern strømadapter | Ja |
| Strømstiktype | Type M |
| Kompatible strømplug typer | AU, EU, UK, US |
| Bæredygtighed | |
| Compliance-certifikater | RoHS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | 20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Vægt & størrelser | |
| Bredde | 161 mm |
| Dybde | 100 mm |
| Højde | 57,5 mm |
| Vægt | 734 g |
| Emballeringsdata | |
| Pakkebredde | 249 mm |
| Pakkedybde | 187 mm |
| Pakkehøjde | 100 mm |
| Pakkevægt | 1,19 kg |
| Emballage indhold | |
| Brugervejledning | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176200 |
| Andre funktioner | |
| Understøttelse af lyd | Ja |
| IP kontrol | Ingen |
