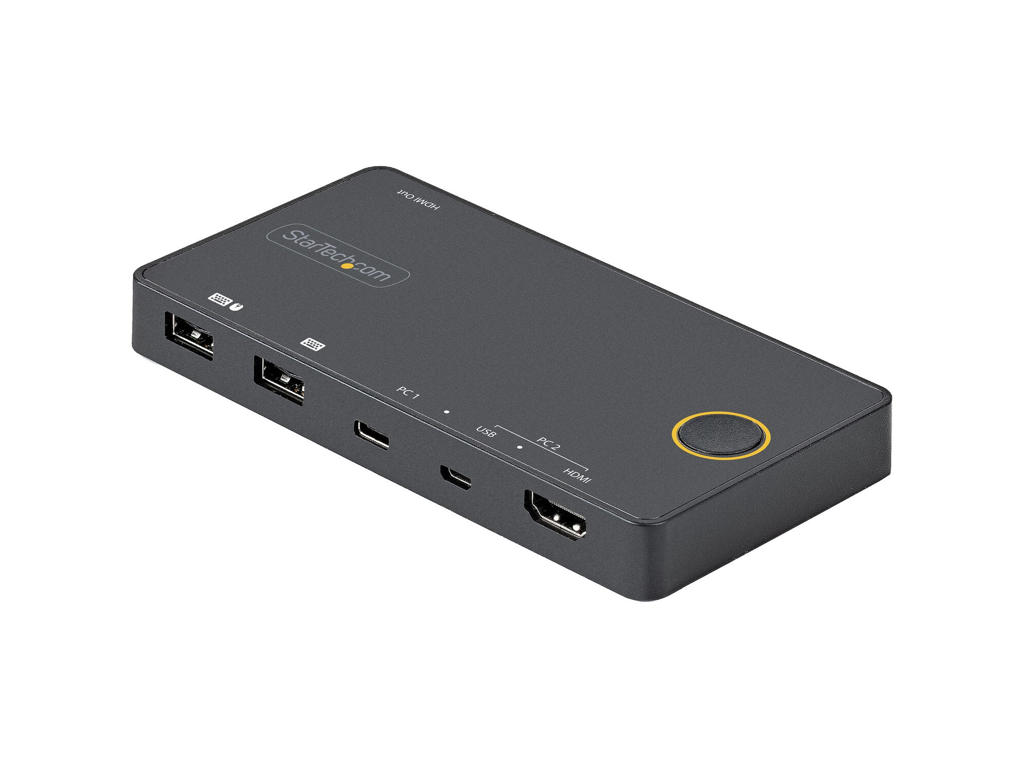

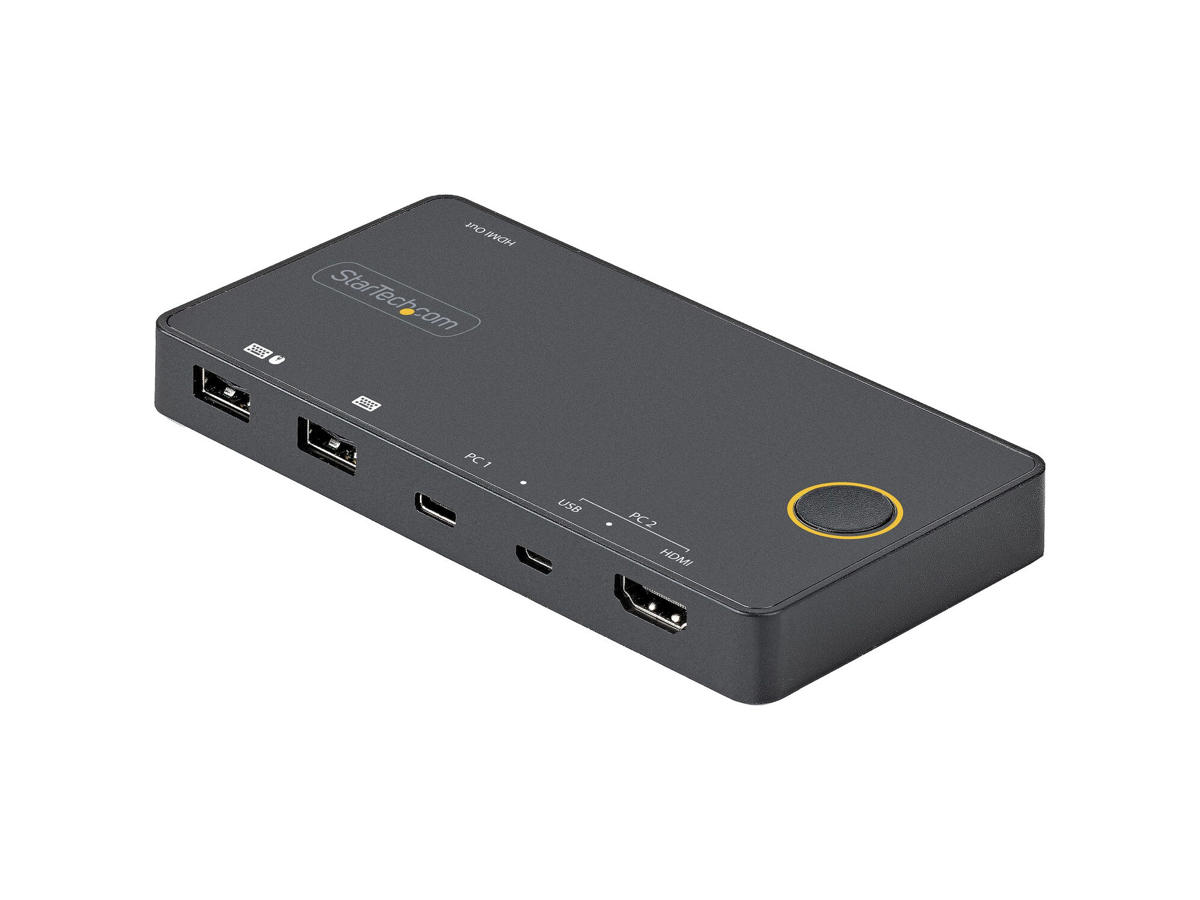

USB-C & USB-A/HDMI Desktop KVM Switch | 2 Port | 4K 60Hz HDMI 2.0
This 2-port USB-C™ / USB-A KVM enables you to easily switch between a USB Type-C or Thunderbolt™ 3 desktop/laptop computer and a USB-A and HDMI desktop/laptop computer, using a single keyboard, HDMI® monitor and mouse.
Easy to Setup and Use
Utilizing USB-C with DP alt-mode and USB-A and HDMI this compact KVM switch only requires three host cable connections, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.
PC 1
PC 2
1x USB Type-C
(Video + Data)
1x HDMI 2.0
+
1x Micro USB-B
For easy operation, the KVM features a single button that toggles between connected computers.
Supports 4K 60Hz Resolutions
The USB-C KVM switch supports UHD resolutions up to 4K (3840 x 2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.
Compact and Portable
Along with the USB-C design that ensures cabling requirements are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.
Guaranteed Compatibility
The KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.
The SV221HUC4K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype HDMI Antal HDMI-porte 2 HDMI-version 2.0 DisplayPort-version 1.2 USB-stik type Micro-USB B, USB Type-A, USB Type-C Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Video båndbredde 60 Hz Dataoverførselshastighed (maks.) 0,48 Gbit/sek. Daisy kæde Ingen Chipsæt Parade - PS176, VLI - VL170, Terminus - FE1.1S Lyd kanaler 7.1 Antal understøttede skærme 1 Design Stativ-montering Ingen Produktfarve Sort LED-indikatorer Ja Trykknap Ja Genvejstaster Ingen Gennemsnitstid mellem fejl (MTBF) 50000 t Display Indbygget skærm Ingen Skærmvisning (OSD) Ingen Strømstyring USB-drevet Ja Driftsbetingelser Driftstemperatur (T-T) 5 - 55 °C Opbevaringstemperatur (T-T) -20 - 50 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Vægt & størrelser Bredde 138 mm Dybde 70 mm Højde 15 mm Vægt 200 g Emballeringsdata Pakkebredde 120 mm Pakkedybde 172 mm Pakkehøjde 85 mm Pakkevægt 250 g Emballage indhold Kabler inkluderet HDMI, Micro-USB, USB Type-C til USB Type-C Hurtig installationsvejledning Ja Logistik data Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 410 mm Hovedkassens længde (udvendigt) 470 mm Hovedkassen højde (udvendigt) 370 mm Produkter pr. hovedkasse (udvendigt) 20 stk Andre funktioner IP kontrol Ingen
