DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant

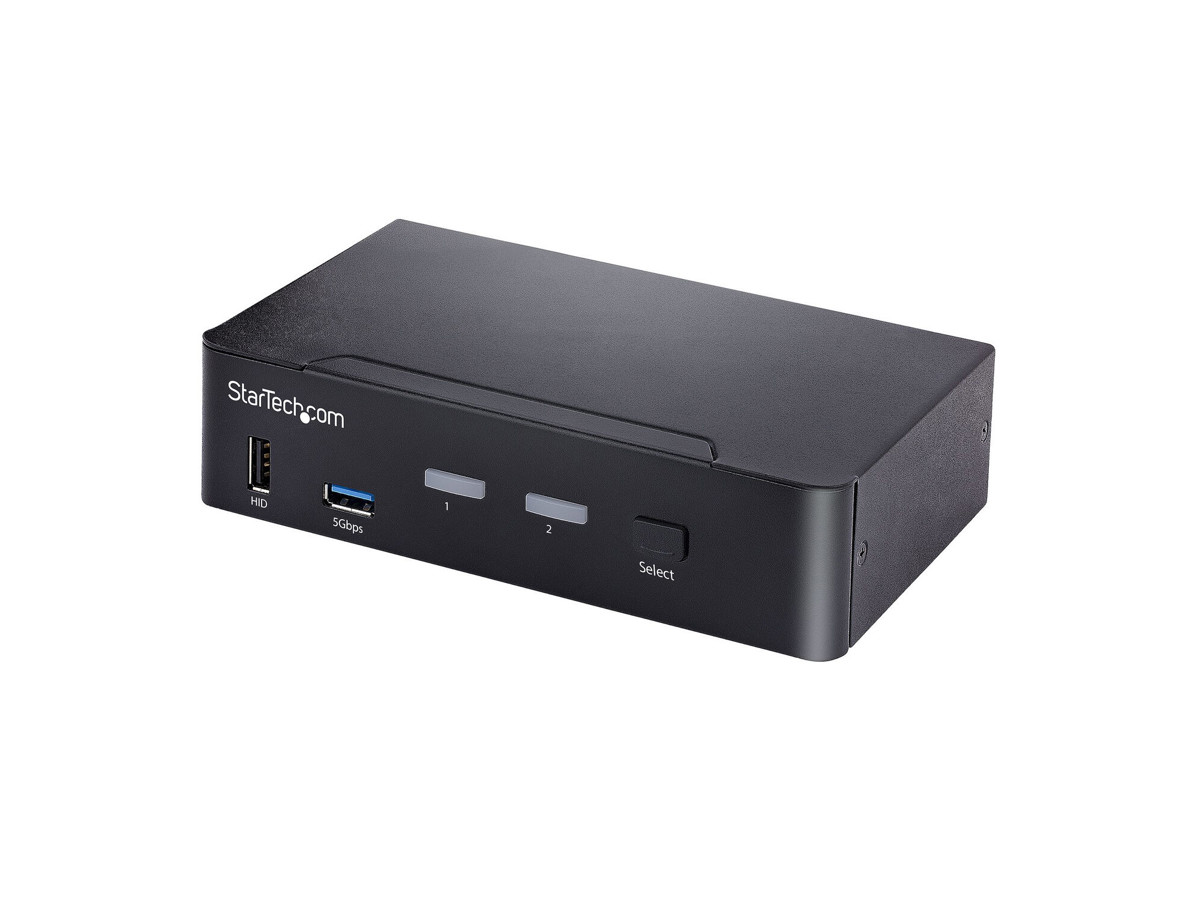

This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control
The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
The StarTech.com Advantage -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort DisplayPort-version 1.2 Antal konsol USB porte 6 Antal konsol displayporte 1 USB stik Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 2 Udgange til hovedtelefoner 1 Antal mikrofon-indgange 1 Præstation HD-type 4K Ultra HD Maksimal opløsning 5120 x 1440 pixel Video båndbredde 60 Hz Dataoverførselshastighed (maks.) 5 Gbit/sek. Skanningsinterval 3,8,15,30 sek./side HDCP Ja Chipsæt Parade - PS8461, Etron - EJ899I Lyd kanaler 2.0 Antal understøttede skærme 1 Design Stativ-montering Ingen Produktfarve Sort LED-indikatorer Ja Trykknap Ja Genvejstaster Ja Gennemsnitstid mellem fejl (MTBF) 158000 t Display Indbygget skærm Ingen Strømstyring Strømkilde Vekselstrøm Indgangsspænding 100 - 240 V Indgangsstrøm 1.2 A Udgangsspænding 12 V Udgangsstrøm 3 A Strømstiktype Type M Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 140 mm Dybde 160 mm Højde 40 mm Vægt 600 g Emballeringsdata Pakkebredde 184 mm Pakkedybde 238 mm Pakkehøjde 89 mm Pakkevægt 1 kg Emballage indhold Hurtig installationsvejledning Ja AC-adapter inkluderet Ja Gummifødder Ja Logistik data Hovedkassens bredde (udvendigt) 300 mm Hovedkassens længde (udvendigt) 397 mm Hovedkassen højde (udvendigt) 257 mm Produkter pr. hovedkasse (udvendigt) 6 stk Andre funktioner IP kontrol Ingen
