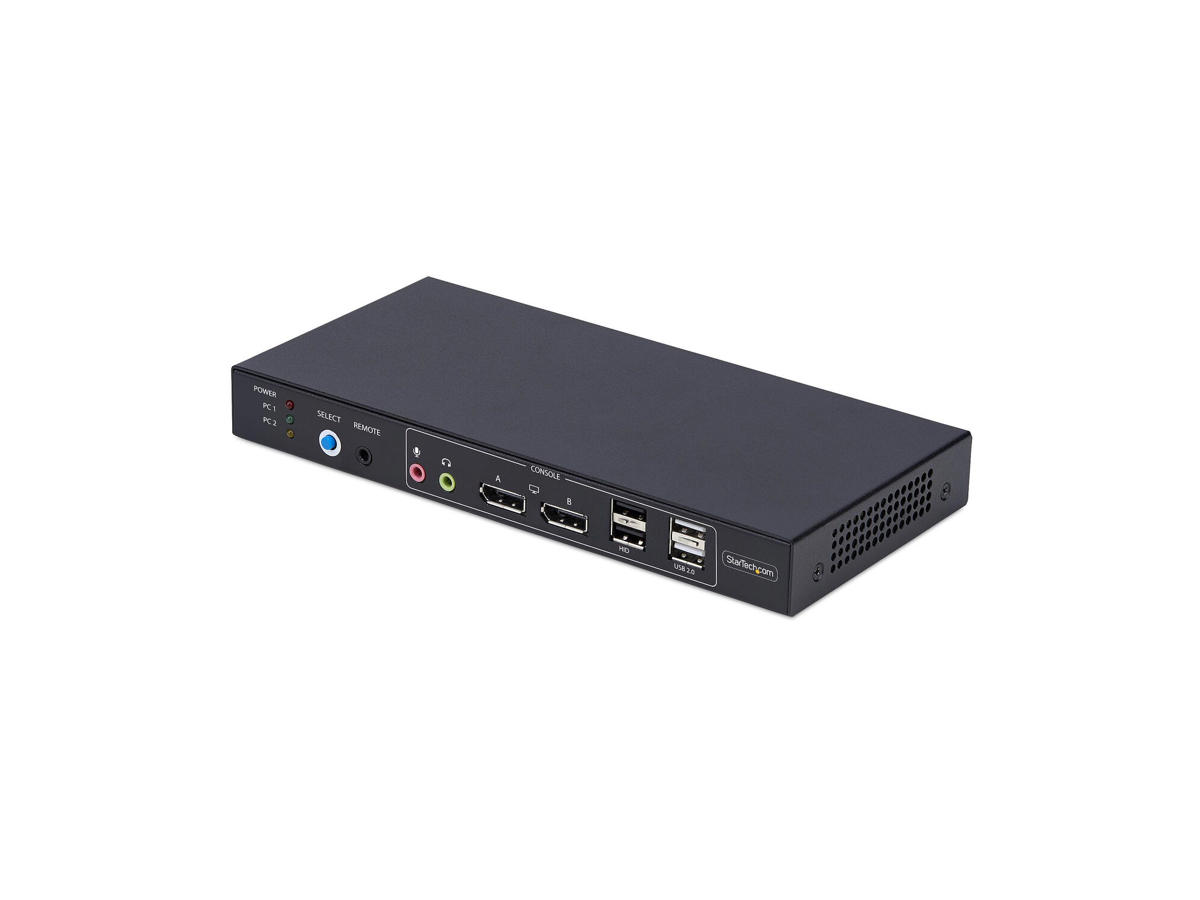

Share a mouse, keyboard, USB hub, and dual 4K 60Hz DisplayPort monitors, between two DisplayPort-enabled computers, featuring dual-view video matrix capabilities
The Video Matrix KVM Switch allows you to view one display from each connected computer and switch the keyboard, mouse, and audio device between the selected displays using hotkeys. You can also switch all connected peripherals and both monitors like a standard KVM.
Universal Compatibility
The TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system, including Windows, macOS, and Linux. No software is required, and it is compatible with all hardware platforms such as Intel, AMD, and Apple Silicon.
Customizable Switching
Switching KVM ports is easy with the front-facing push button, hotkeys, or the included remote selector cable. An audible buzzer provides confirmation, and LEDs offer quick visual port selection status.
Reliable Performance
The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in a variety of environments, and it offers 8kV Air/6kV Contact ESD protection.
USB Audio
Eliminate the need to connect 3.5mm cables from the computers to the KVM by using this KVM switch's built-in USB audio device, which provides 3.5mm audio jacks for both microphone and speakers. This setup simplifies your workspace by integrating audio management directly into the KVM switch.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
| Porte & Grænseflader | |
| Antal kontrollerede computere | 2 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | DisplayPort |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, USB A |
| Antal DisplayPorts | 4 |
| DisplayPort-version | 1.2 |
| Antal USB 2.0 Type-B porte | 2 |
| Antal konsol USB porte | 4 |
| Antal konsol displayporte | 2 |
| USB stik | Ja |
| Antal USB 2.0 type-A hub porte | 2 |
| Lydforbindelse | Ja |
| Udgange til hovedtelefoner | 1 |
| Antal mikrofon-indgange | 1 |
| DC-in-stik | Ja |
| Præstation | |
| HD-type | 4K Ultra HD |
| Maksimal opløsning | 3840 x 2160 pixel |
| Dataoverførselshastighed (maks.) | 0,48 Gbit/sek. |
| Skanningsinterval | 10,20,30,40,50,60 sek./side |
| Daisy kæde | Ingen |
| Lyd kanaler | 2.0 |
| Design | |
| Stativ-montering | Ingen |
| Produktfarve | Sort |
| Husmateriale | Aluminium, Stål |
| Ledningsført fjernkontakt | Ja |
| LED-indikatorer | Ja |
| Trykknap | Ja |
| Genvejstaster | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 87298 t |
| Display | |
| Indbygget skærm | Ingen |
| Skærmvisning (OSD) | Ingen |
| Strømstyring | |
| Strømkilde | DC |
| Indgangsspænding | 100 - 240 V |
| Indgangsstrøm | 1 A |
| Udgangsspænding | 12 V |
| Udgangsstrøm | 3 A |
| Strømforbrug (typisk) | 36 W |
| Strømstiktype | Type M |
| Kompatible strømplug typer | AU, EU, UK, US |
| Bæredygtighed | |
| Compliance-certifikater | Federal Communications Commission (FCC), RoHS, Lov om handelsaftaler (TAA) |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
| Vægt & størrelser | |
| Bredde | 105 mm |
| Dybde | 221 mm |
| Højde | 26 mm |
| Vægt | 626 g |
| Emballeringsdata | |
| Pakkebredde | 250 mm |
| Pakkedybde | 292 mm |
| Pakkehøjde | 78 mm |
| Pakkevægt | 1,5 kg |
| Emballage indhold | |
| Hurtig installationsvejledning | Ja |
| AC-adapter inkluderet | Ja |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 539 mm |
| Hovedkassens længde (udvendigt) | 419 mm |
| Hovedkassen højde (udvendigt) | 333 mm |
| Produkter pr. hovedkasse (udvendigt) | 10 stk |
| Andre funktioner | |
| IP kontrol | Ingen |
