Share a mouse, keyboard, USB 5Gbps hub, 4K 60Hz DisplayPort monitor, and a 4K 60Hz HDMI monitor between two computers

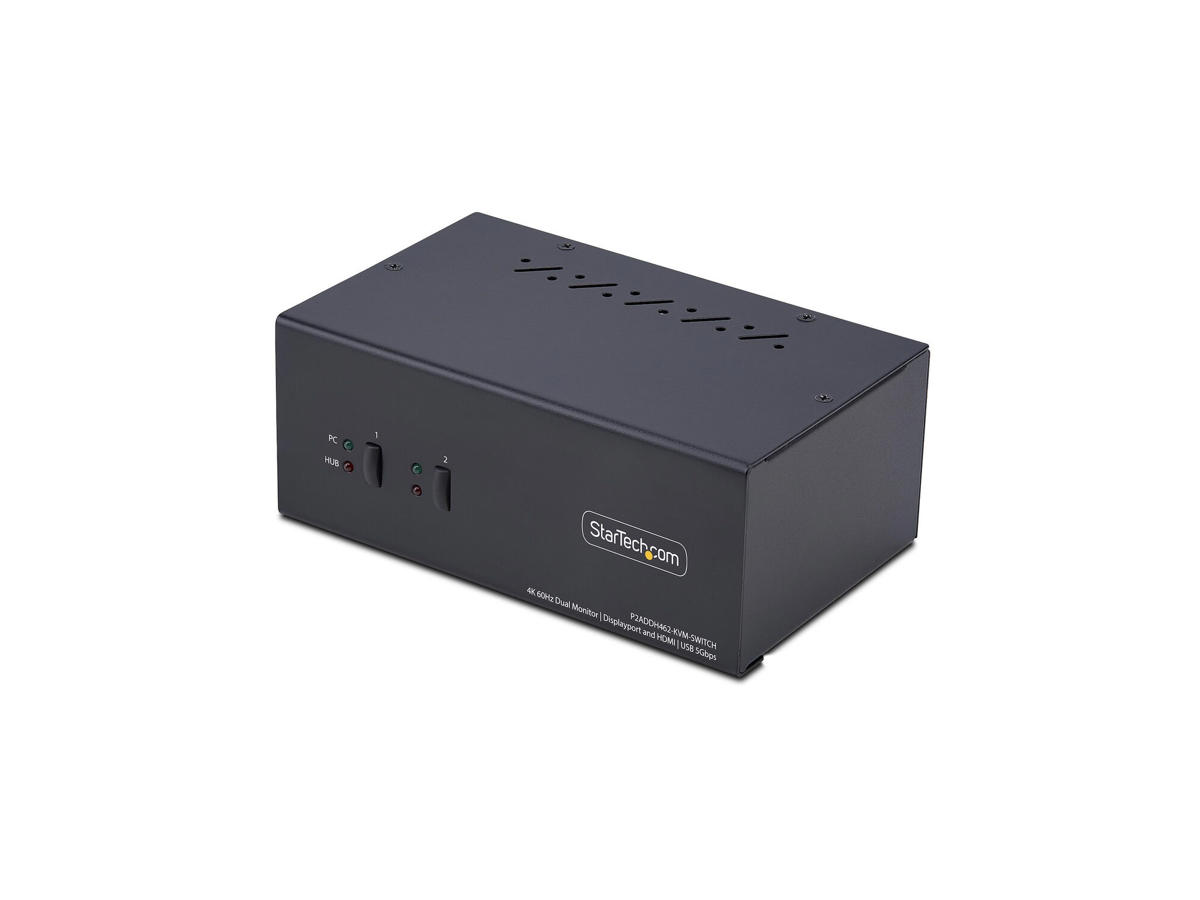

The HDMI and DisplayPort KVM switch enables a mixed-display setup of an HDMI and a DisplayPort monitor without the need for adapters or converters. It allows you to share peripherals, including a keyboard, mouse, audio device, and dual monitors, between two computers.
HDMI + DisplayPort
Connect an HDMI and a DisplayPort monitor to this KVM switch, both supporting resolutions up to 4K 60Hz for high-definition content without the need for adapters. The HDMI port is ideal for connecting to a wide range of devices, including TVs, monitors, and projectors, while the DisplayPort port is ideal for high-performance monitors.
Easily Share USB Devices
The USB 3.0 hub provides high-speed data transfer over two USB 3.0 ports for devices such as external SSDs and flash drives. It also includes two dedicated USB HID ports for a keyboard and mouse.
No Drivers or Software Required
The TAA-compliant KVM switch offers BIOS/UEFI control and works with any operating system, including Windows, macOS, ChromeOS, and Linux, without requiring any software. It is compatible with all hardware platforms, such as Intel, AMD, and Apple.
The KVM switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation. LEDs offer quick visual port selection status, and you can listen to audio from one computer while controlling another.
Reliable Performance
The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in various environments, and it provides 8kV air and 6kV contact ESD protection. -
Porte & Grænseflader Antal kontrollerede computere 2 Tastatur porttype USB Mus porttype USB Video porttype HDMI/DisplayPort Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, HDMI, USB A Antal HDMI-porte 2 HDMI-version 2.0 Antal DisplayPorts 2 DisplayPort-version 1.2 Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte 2 Antal konsol USB porte 2 Antal konsol displayporte 1 Antal HDMI-porte konsol 1 USB stik Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 2 Lydforbindelse Ja Udgange til hovedtelefoner 3 Antal mikrofon-indgange 3 DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Dataoverførselshastighed (maks.) 5 Gbit/sek. Lyd kanaler 7.1 Design Stativ-montering Ingen Produktfarve Sort LED-indikatorer Ja Gennemsnitstid mellem fejl (MTBF) 138390 t Display Indbygget skærm Ingen Strømstyring Indgangsspænding 100 - 240 V Indgangsstrøm 1 A Udgangsspænding 12 V Udgangsstrøm 3 A Strømforbrug (typisk) 36 W Strømstiktype Type M Kompatible strømplug typer AU, EU, UK, US Bæredygtighed Compliance-certifikater RoHS, Lov om handelsaftaler (TAA) Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 100 mm Dybde 163 mm Højde 66 mm Vægt 750 g Emballeringsdata Pakkebredde 332 mm Pakkedybde 162 mm Pakkehøjde 128 mm Pakkevægt 128 g Emballage indhold Hurtig installationsvejledning Ja Logistik data Hovedkassens bredde (udvendigt) 513 mm Hovedkassens længde (udvendigt) 352 mm Hovedkassen højde (udvendigt) 301 mm Produkter pr. hovedkasse (udvendigt) 6 stk Andre funktioner IP kontrol Ingen
