KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio

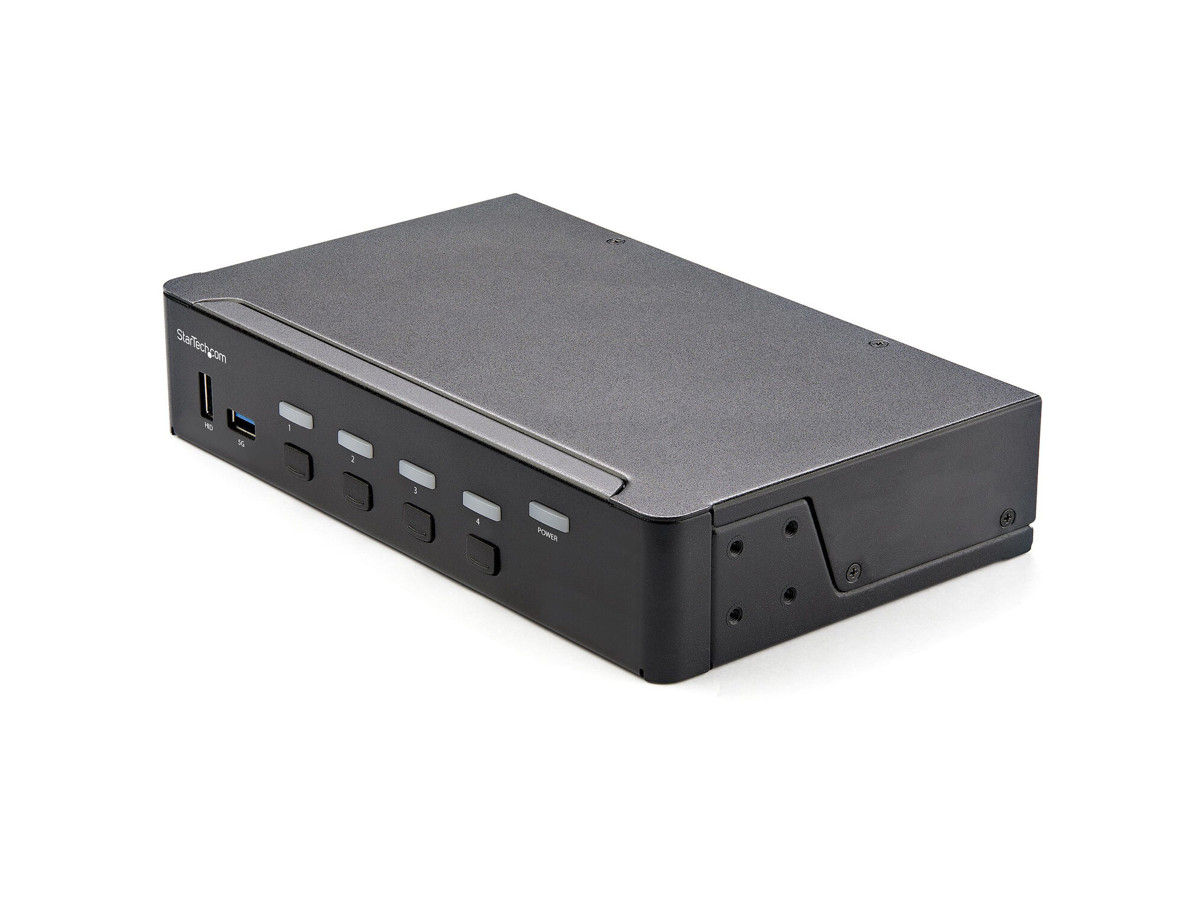

This 4 port KVM switch combines 4K (60Hz) digital display capabilities with control of our connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
This 4 port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Porte & Grænseflader Antal kontrollerede computere 1 Tastatur porttype USB Mus porttype USB Video porttype HDMI Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB A Antal HDMI-porte 5 HDMI-version 2.0 Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte 4 Antal konsol USB porte 4 USB stik Ja Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 2 Lydforbindelse Ja Udgange til hovedtelefoner 5 Antal mikrofon-indgange 5 DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 3840 x 2160 pixel Dataoverførselshastighed (maks.) 5 Gbit/sek. Skanningsinterval 3,8,15,30 sek./side Daisy kæde Ingen Chipsæt Genesys Logic - GL3523 Lyd kanaler 7.1 Design Produktfarve Sort Husmateriale Stål LED-indikatorer Ja Trykknap Ja Genvejstaster Ja Gennemsnitstid mellem fejl (MTBF) 143000 t Certificering CE, FCC, RoHS Display Indbygget skærm Ingen Skærmvisning (OSD) Ingen Strømstyring Indgangsspænding 100 - 240 V Indgangsstrøm 1 A Udgangsspænding 12 V Udgangsstrøm 3 A Strømforbrug (typisk) 36 W Strømstiktype Type M Kompatible strømplug typer EU, UK, US Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 0 - 80% Vægt & størrelser Bredde 130 mm Dybde 220 mm Højde 44 mm Vægt 1,1 kg Emballeringsdata Pakkebredde 212 mm Pakkedybde 409 mm Pakkehøjde 87 mm Pakkevægt 1,8 kg Emballage indhold Brugervejledning Ja Gummifødder Ja Logistik data Harmoniseret systemkode (HS) 85176200 Hovedkassens bredde (udvendigt) 545 mm Hovedkassens længde (udvendigt) 438 mm Hovedkassen højde (udvendigt) 258 mm Produkter pr. hovedkasse (udvendigt) 6 stk Andre funktioner IP kontrol Ingen
