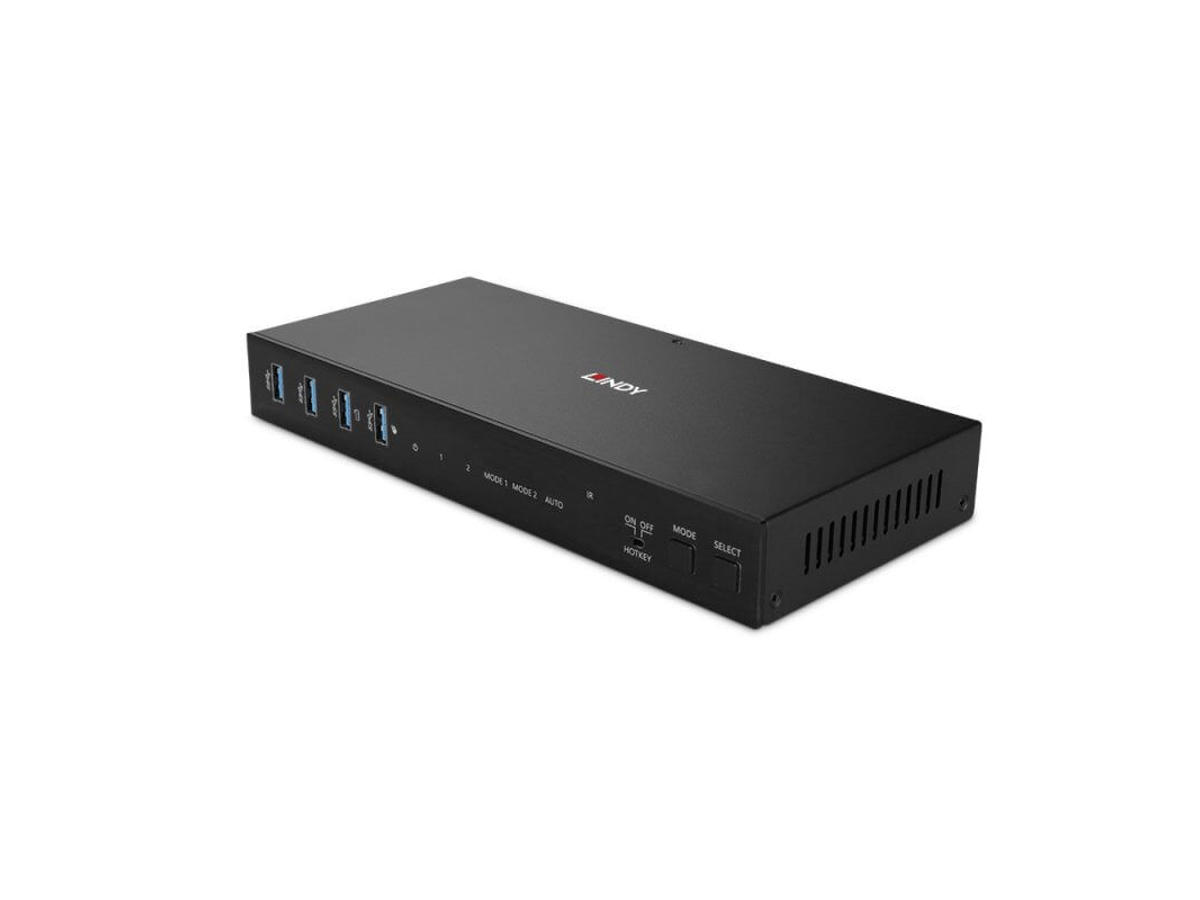

This KVM Switch can share 2 displays and USB devices between 2 computers in different modes: Single PC mode with both video showing the dual head input from one source; Dual PC mode with the first display fixed on the first PC1 input and the second display fixed on the first PC2 input.
Switching methods are:
- Front panel buttons
- Hotkeys (with on/off button)
- IR remote control
- RS-232 commands
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for (HDR) High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port also allow users to connect headphones or speakers to add immersive 2CH audio.
USB ports allow the connection of mouse, keyboard and additional USB 3.2 Gen 1 devices such as web cam, flash drive, printer, etc. Auto-switch function enables automatic switching between connected PCs and DDM function ensures that all connected USB devices retain their settings and functionality when switching between PCs ensuring the maximum compatibility.
With advanced features and different switching methods, this switch is the perfect solution for professional KVM installations, plug and play presentations and home offices. -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype HDMI Konsol porte 3ˌ5 mm hovedtelefon, HDMI, USB A Antal HDMI-porte 4 HDMI-version 2.0 Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte 2 Antal konsol USB porte 4 Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 4 USB-stik type USB Type-A, USB Type-B Lydforbindelse Ja Udgange til hovedtelefoner 2 DC-in-stik Ja Præstation HD-type 4K Ultra HD Maksimal opløsning 4096 x 2160 pixel Video båndbredde 60 Hz HDCP Ja HDCP-version 2.3 Design Stativ-montering Ingen Produktfarve Sort Husmateriale Metal LED-indikatorer Status Trykknap Ja Genvejstaster Ja Certificering CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Display Indbygget skærm Ingen Strømstyring Strømkilde DC Indgangsspænding 12 V Udgangsstrøm 1 A Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 90% Vægt & størrelser Bredde 220 mm Dybde 100 mm Højde 30 mm Vægt 609 g Emballeringsdata Pakkebredde 300 mm Pakkedybde 185 mm Pakkehøjde 115 mm Pakkevægt 1,61 kg Pakketype Kasse Emballage indhold Kabler inkluderet DC, HDMI, USB Type-A to Micro USB-B Hurtig installationsvejledning Ja Brugervejledning Ja Rack monteringskit Ja Fjernbetjening inkluderet Ja Andre funktioner Garantiperiode 2 År
