Mere information
-
Controls four HDMI equipped PCs from a single keyboard, mouse and monitor
Switch via the unit's push button or keyboard hotkeys
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4 with HDR
3.5mm stereo audio ports to connect microphone, speakers or headphones
2 year warranty
A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

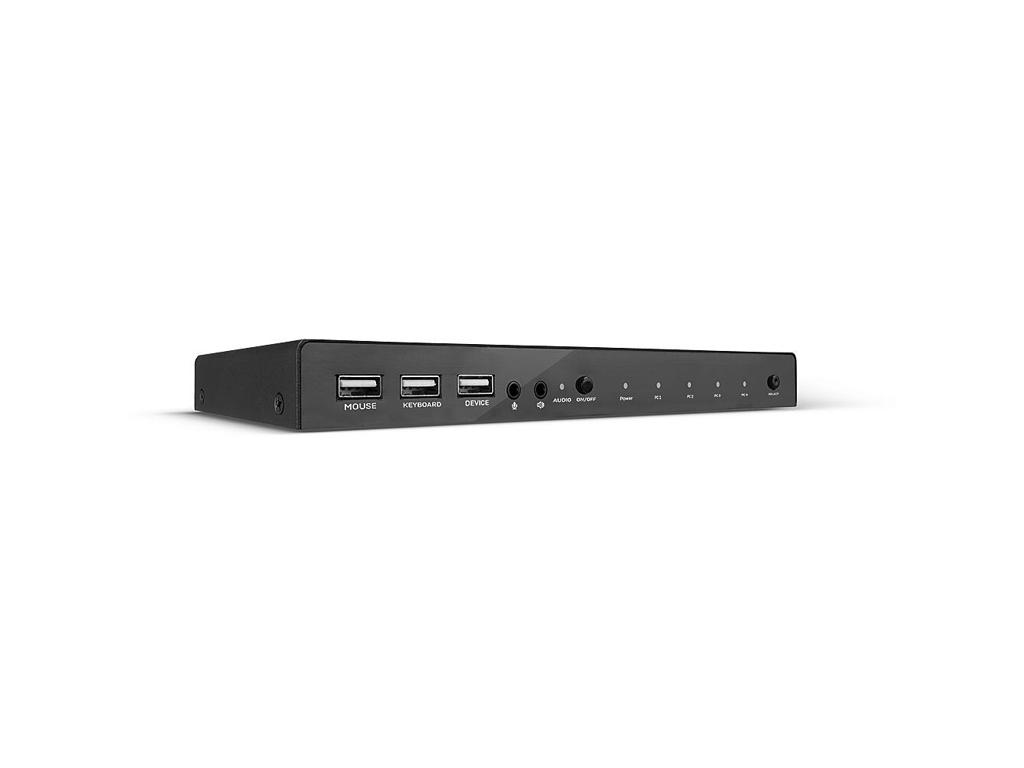

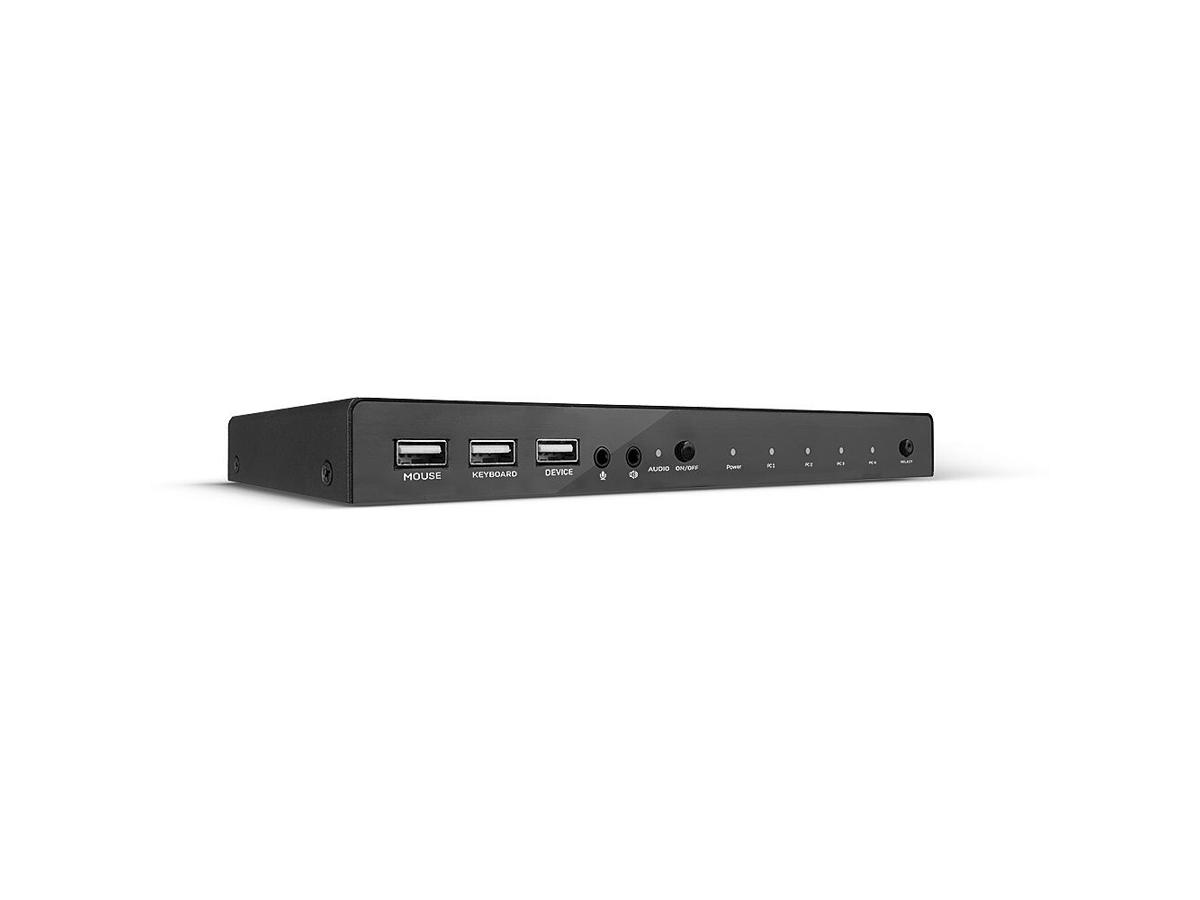

The Lindy 4 Port HDMI 4K60, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over four HDMI equipped PCs from a single keyboard, mouse and monitor setup.
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI signal but to a built-in USB converter while an additional USB device such as a printer, scanner or hard drive can be connected to the additional USB port on the front panel.
The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users. -
Porte & Grænseflader Antal kontrollerede computere 4 Tastatur porttype USB Mus porttype USB Video porttype HDMI Konsol porte 3ˌ5 mm hovedtelefon, HDMI, USB A Antal HDMI-porte 4 HDMI-version 2.0 Antal USB 2.0 Type-B porte 4 Antal konsol USB porte 3 Lydforbindelse Ja Udgange til hovedtelefoner 2 Præstation HD-type 4K Ultra HD Maksimal opløsning 4096 x 2160 pixel Video båndbredde 60 Hz HDCP Ja Design Stativ-montering Ingen Produktfarve Sort Husmateriale Metal LED-indikatorer Status Trykknap Ja Genvejstaster Ja Certificering CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Display Indbygget skærm Ingen Strømstyring Indgangsspænding 5 V Udgangsstrøm 2 A Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -10 - 60 °C Relativ luftfugtighed ved drift (H-H) 5 - 80% Vægt & størrelser Bredde 231 mm Dybde 108 mm Højde 23 mm Vægt 689 g Emballeringsdata Pakkebredde 292 mm Pakkedybde 238 mm Pakkehøjde 55 mm Pakkevægt 988 g Pakketype Kasse Emballage indhold Kabler inkluderet DC Hurtig installationsvejledning Ja Brugervejledning Ja Logistik data Harmoniseret systemkode (HS) 85176200
